JUKI DDL-8000A Engineer's Manual

– 158 –

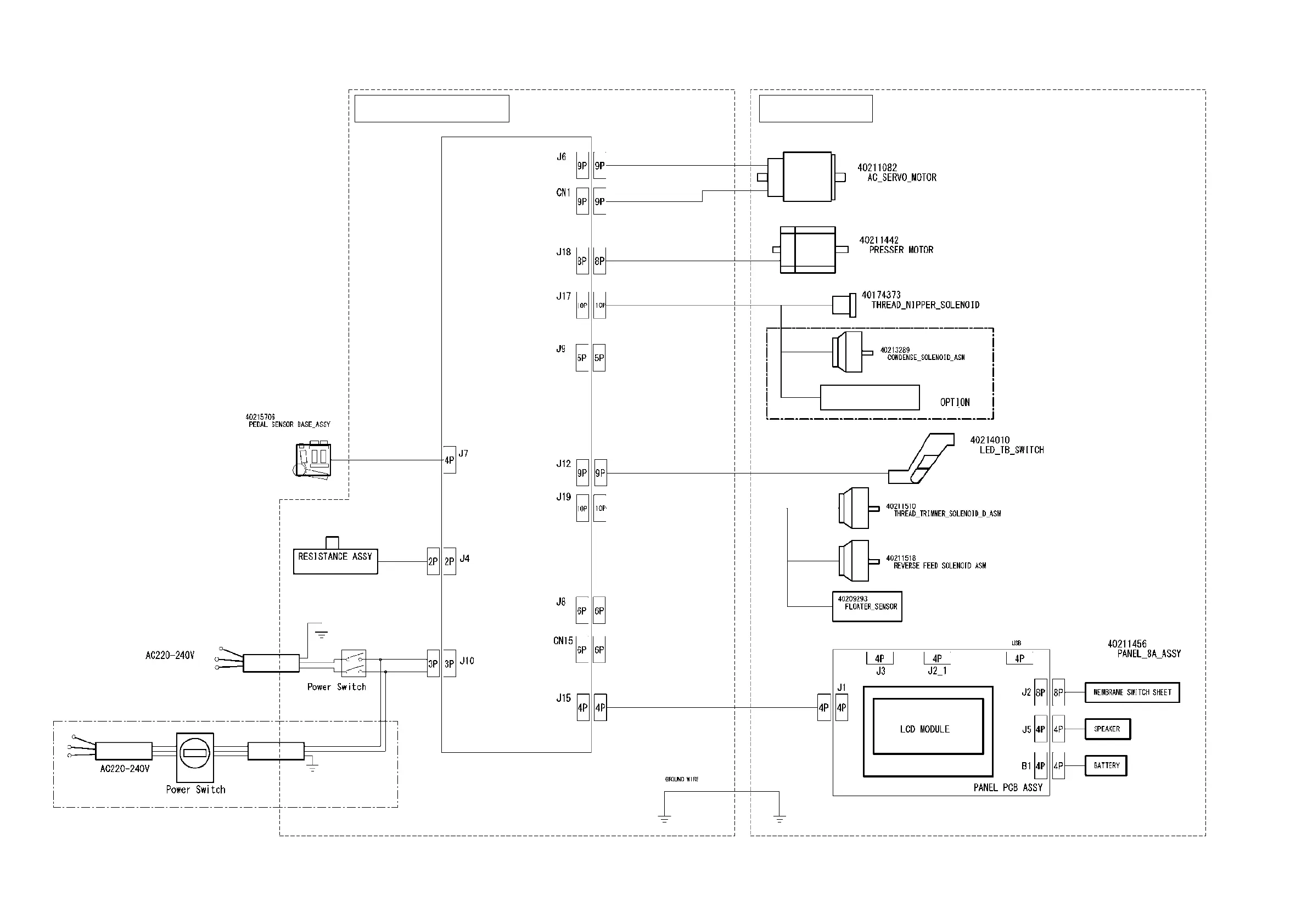

12. Block diagram
DDL-8000A Control Box
DDL-8000A head
General export type : 40211954
CE Type : 40212265
Principal axis motor output
Panel IF
AC power input
Resistance
General export type
CE Type
Principal axis motor
encoder
Presser motor output
Thread presser solenoid
For production control (JaNets)
TB switch with LED
Main software rewrite
Presser motor software rewrite
Software rewrite Audio software rewrite
Bird's nest preventing unit
Thread trimming, reverse feed
solenoid, oil quantity sensor

JUKI DDL-8000A Specifications

General

Stitch Type	Lockstitch
Motor Type	Direct-drive motor
Thread Trimmer	Automatic
Max. Stitch Length	5mm
Needle Bar Stroke	30.7mm
Lift of the Presser Foot	By hand: 5.5mm, By knee: 13mm
Control Panel	Digital
Lubrication	Automatic
