JUKI DDL-8000A Engineer's Manual

– 73 –
(15) Conguration and adjustment of the lubrication mechanism
WARNING :
Be sure to turn the power OFF before the following work in order to prevent personal injury due to
unintentional starting of the sewing machine.
Standard adjustment

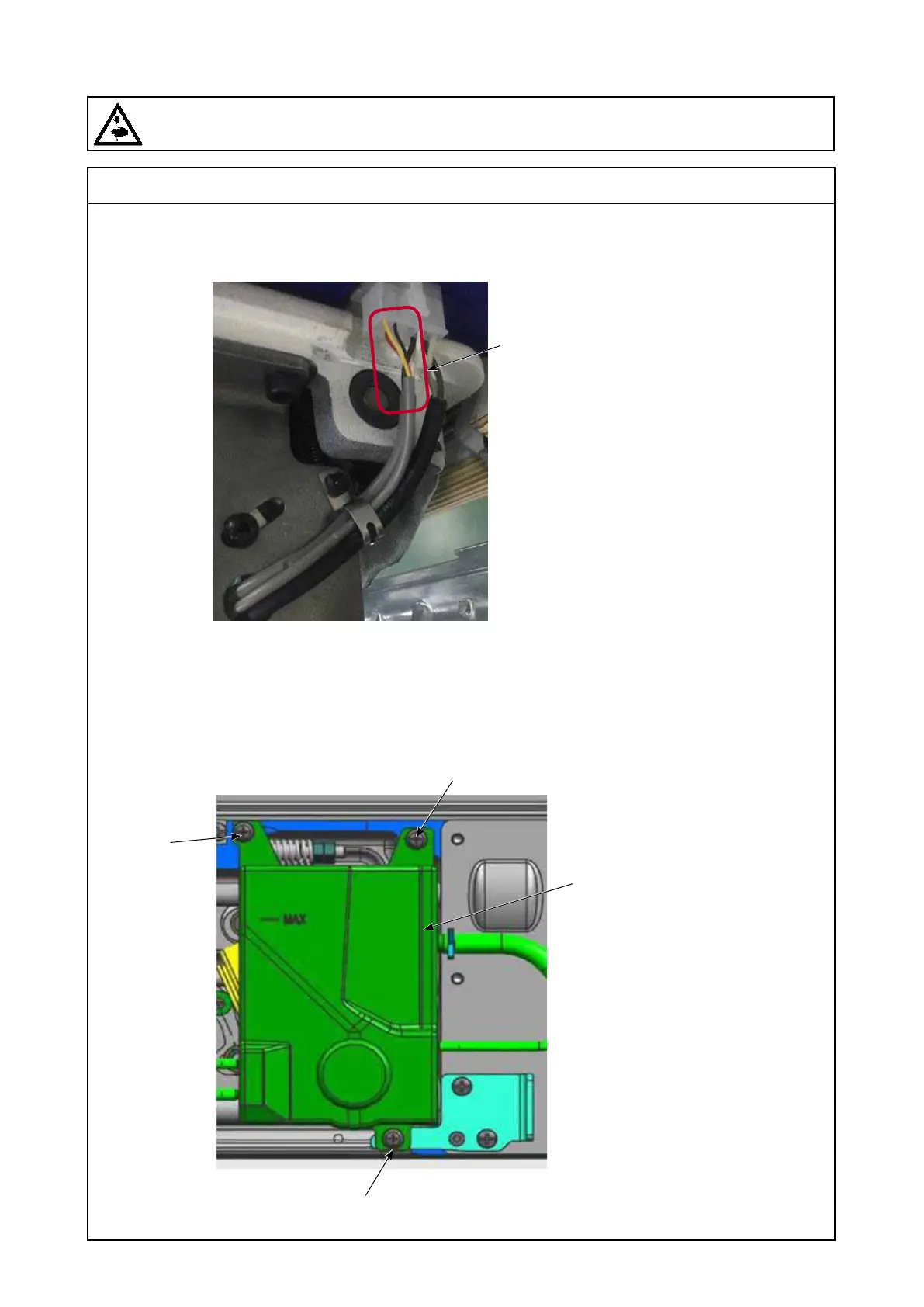

2) Procedure of attaching and detaching
①
Remove the connector pin of the oil quantity sensor
❹
.
②
Remove the three setscrews
❷
from the oil tank
❶
.
Oil quantity sensor
Position of connector pin
No. 4 Red
No. 9 Black
No. 10 Yellow
❷
❷
❶
❷

JUKI DDL-8000A Specifications

General

Stitch Type	Lockstitch
Motor Type	Direct-drive motor
Thread Trimmer	Automatic
Max. Stitch Length	5mm
Needle Bar Stroke	30.7mm
Lift of the Presser Foot	By hand: 5.5mm, By knee: 13mm
Control Panel	Digital
Lubrication	Automatic
