JUKI DDL-8000A Engineer's Manual

– 9 –

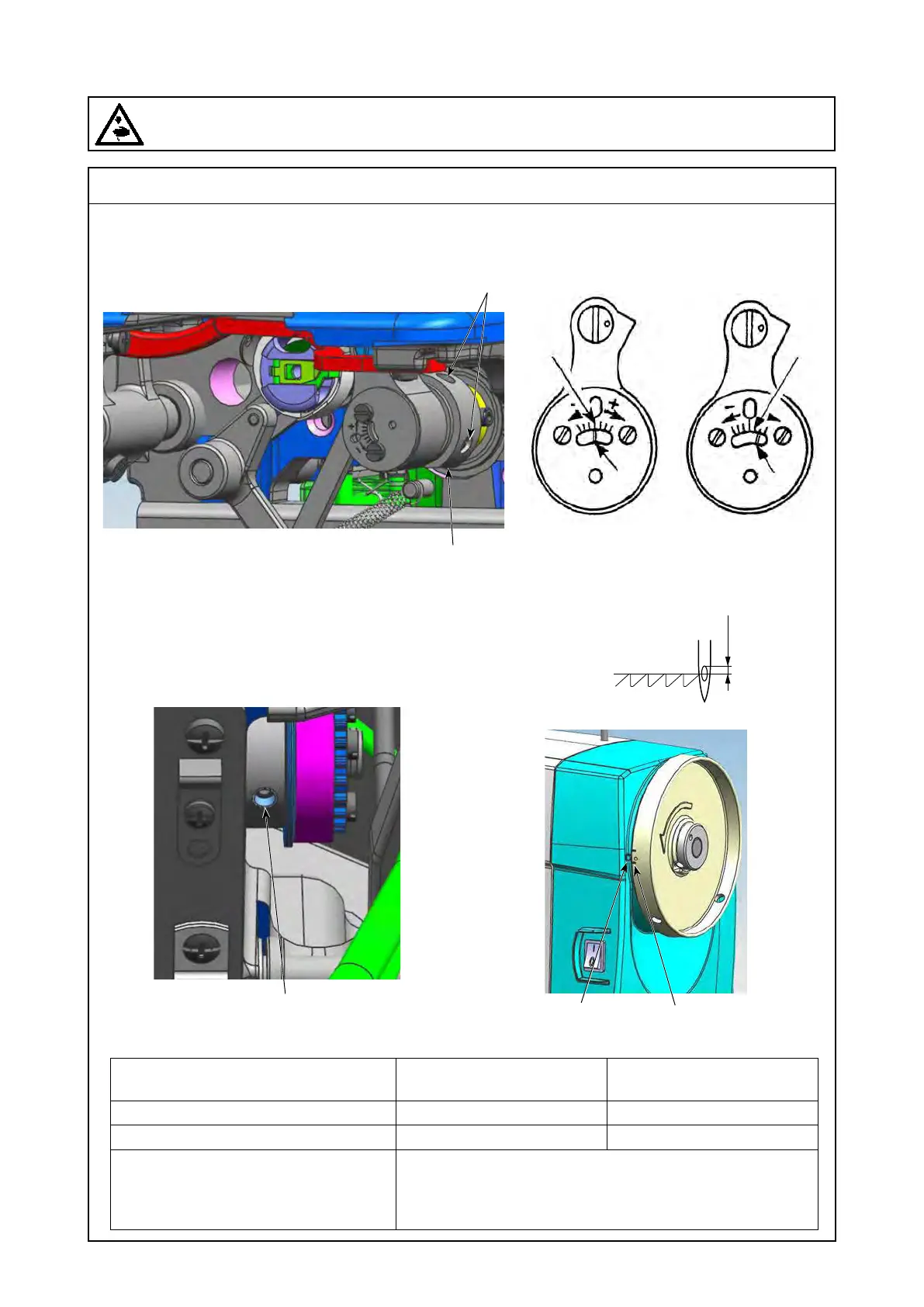

(3) Setting of feed timing
WARNING :
Be sure to turn the power OFF before the following work in order to prevent personal injury due to
unintentional starting of the sewing machine.
Standard adjustment
1) Standard adjustment
❹
❺
❸
❸
Vertical feed cam phase
(engraved marker line position)
0 ±1 mm
Standard Adjustment
DDL-8000A*-MS
DDL-8000A*-SH
(DDL-8000A*-SJ)
Needle and feed timing
Models DDL-8000A*-MS
DDL-8000A*-SH
(DDL-8000A*-SJ)
Vertical feed cam engraved marker line 0° +20°
Feed dial graduations 3 4
Needle and feed timing
In a moment when the feed dog is positioned below the
upper surface of the throat plate, the upper end (lower end
of the throat plate for B-SH) of the needle hole shall be
0±1mm from the upper plane of the throat plate.
❶
❷
❻
❼
❽
