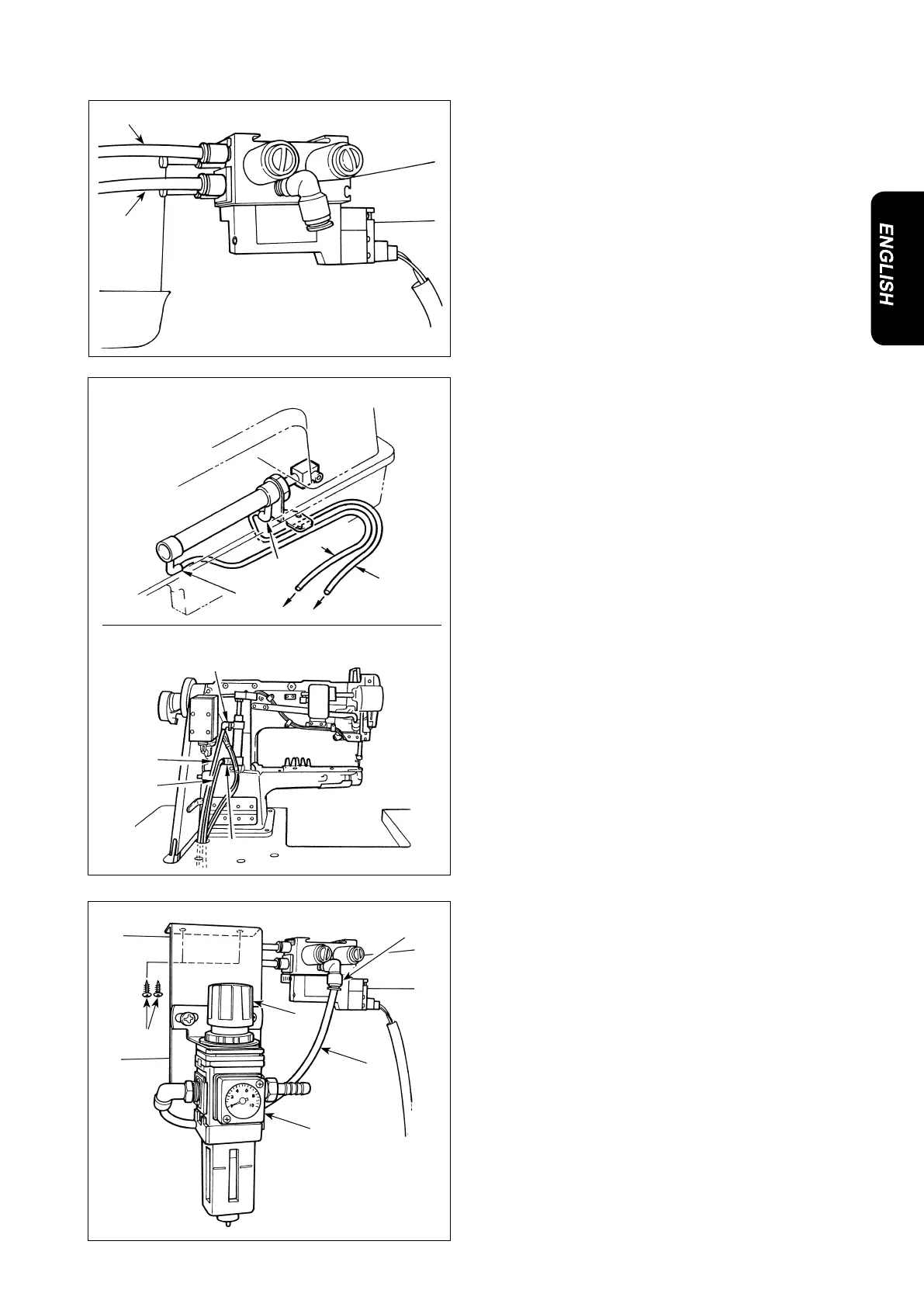

– 7 –
1) Connect air hose
to joint
and connect air
hose
to joint
. If the air hose is too long, cut
it to an appropriate length.
2) Install regulator
on the bottom surface of the
table using the wooden screws
supplied with
the unit. Connect air hose
of the regulator to
joint
of the solenoid valve (asm.).
3) When all the piping has been completed, adjust
the air pressure to 0.4 to 0.5 MPa (4 to 5 kgf/cm²)
using knob
of the regulator.
[In case the air hose number is not indicated on the solenoid valve (asm.) (LZH, DU-141H, DSC, DSU)]
LZH-1290-7
DU-141H-7 / DSC / DSU
