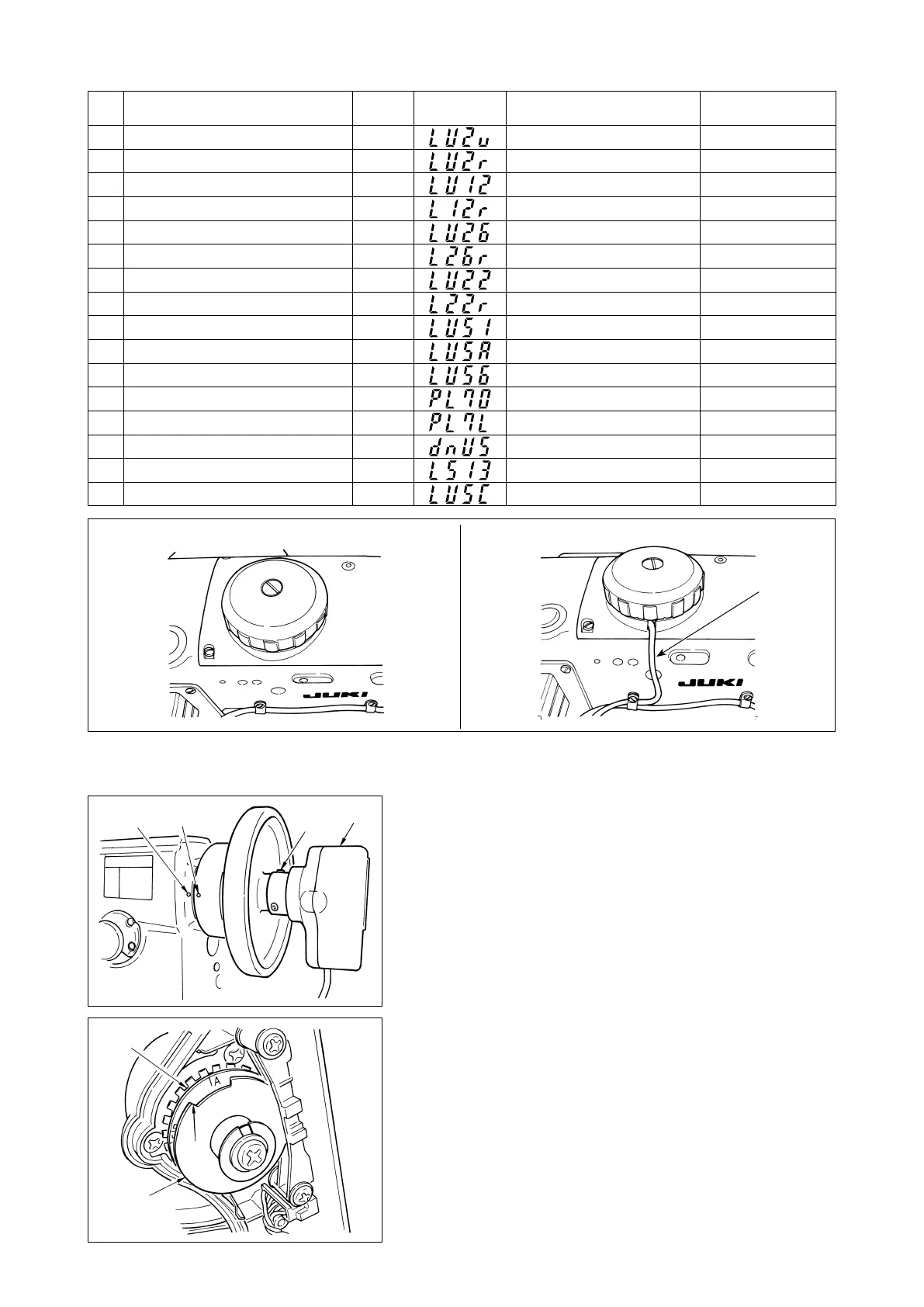

– 2 –
No. Machine head Type
Contents of
display
Number of revolutions at the
time of delivery (sti/min)
Max. number of
revolutions (sti/min)
1 LU-2210N/2260N-7 (VR type) LU2v
3500 3500
2 LU-2210N/2260N-7 (SW type) LU2r
3500 3500
3 LU-2212N-7 (VR type) LU12
3500 3500
4 LU-2212N-7 (SW type) L12r
3500 3500
5 LU-2216N/66N-7 (VR type) LU26
3000 3000
6 LU-2216N/66N-7 (SW type) L26r
3000 3000
7 LU-2220N-7 (VR type) LU22
3500 3500
8 LU-2220N-7 (SW type) L22r
3500 3500
9 LU-1510N-7 LU51
3000 3000
10 LU-1510NA-7 LU5A
2000 2000
11 LU-1560N-7 LU56
2500 2500
12 PLC-1710/1760-7 PL70
2500 2500
13 PLC-1760L PL7L
1800 1800
14 DNU-1541-7 dnU5
3000 3000
15 LS-1342-7 LS13
2500 2500
16 LU-1520NC-7 LU5C
2000 2000
List 1
• Apply the adjustment below to the models which are not pro-
vided with built-in synchronizer.
•Besuretoconrmthatthestoppositionisproperbefore
performing the thread trimming operation.
Adjust the stop position in the state that the synchronizer is ac-
tually installed to the sewing machine. At this time, remove the
connector for the sewing machine for safety's sake. When you
remove a connector, please be sure to turn OFF the power.
When you adjust the UP position detecting plate
, and when
you turn the joint of synchronizer, please be sure to turn OFF
the power. Set the needle UP/needle DOWN position setting
with function No. 10 (specifying the needle bar position when
the sewing machine stops).
1) Temporarilyxsynchronizer
to the handwheel.
2) Remove the cover of synchronizer
, and adjust edge
section
of outside UP position detecting plate
to the
position of scale of DOWN position detecting plate
in
accordance with the respective models. For the position of
scale of the respective models, refer to the list 2 (p.3).
2. INSTALLING THE SYNCHRONIZER
LU-2200N-7 (VR type) LU-2200N-7 (SW type)
Cord
To Next Page
