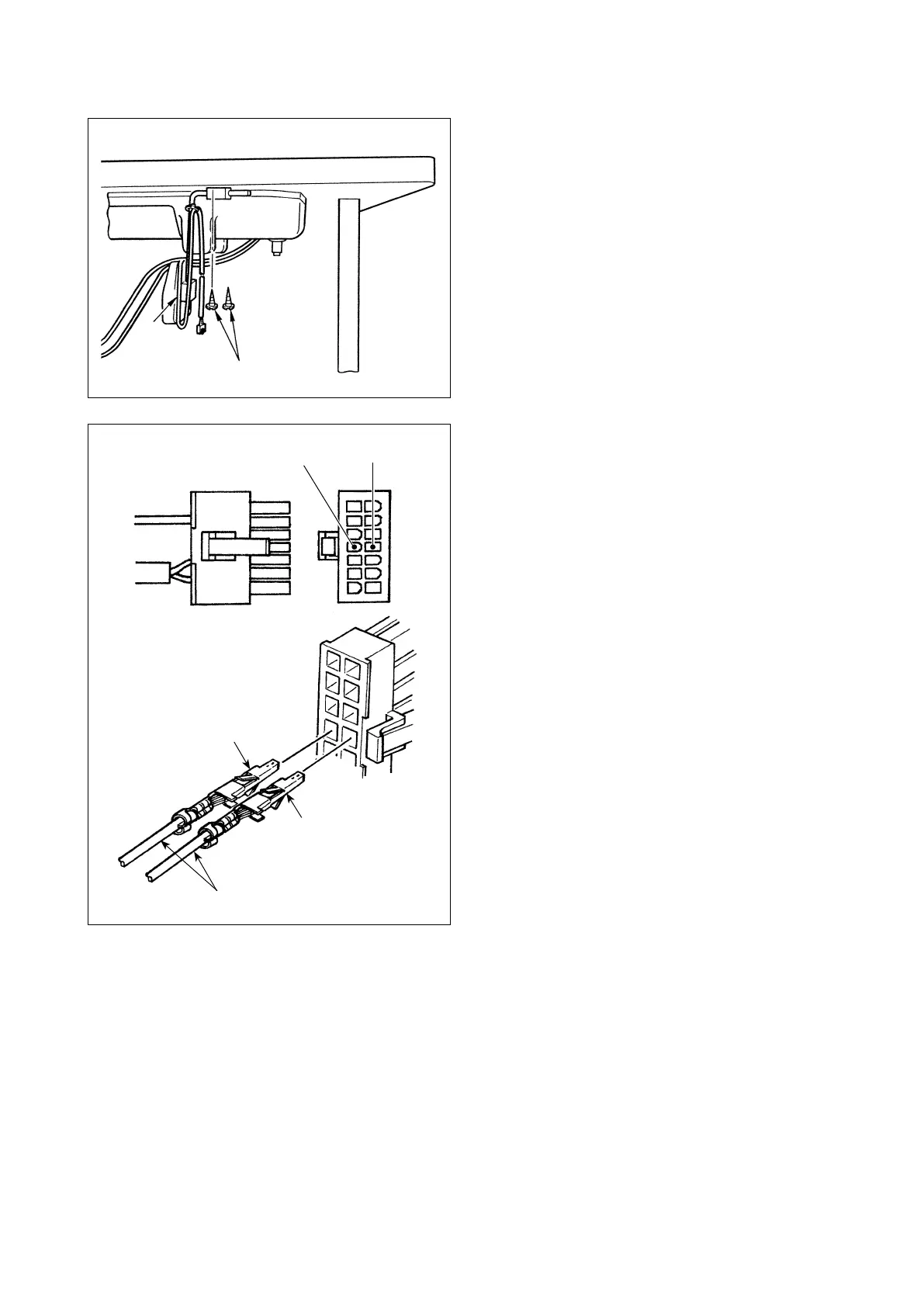

(3) Installation of the knee switch
1) Install the knee switch (asm.)
on the bottom
surface of the table using the wooden screws
supplied with the unit.
2) Connect the knee switch to No. 4 and No. 11 pins
of the machine connector 14P which is connected
to CN36 of the machine controller.
