JUKI SC-922 Supplementary Instructions Manual

– 16 –

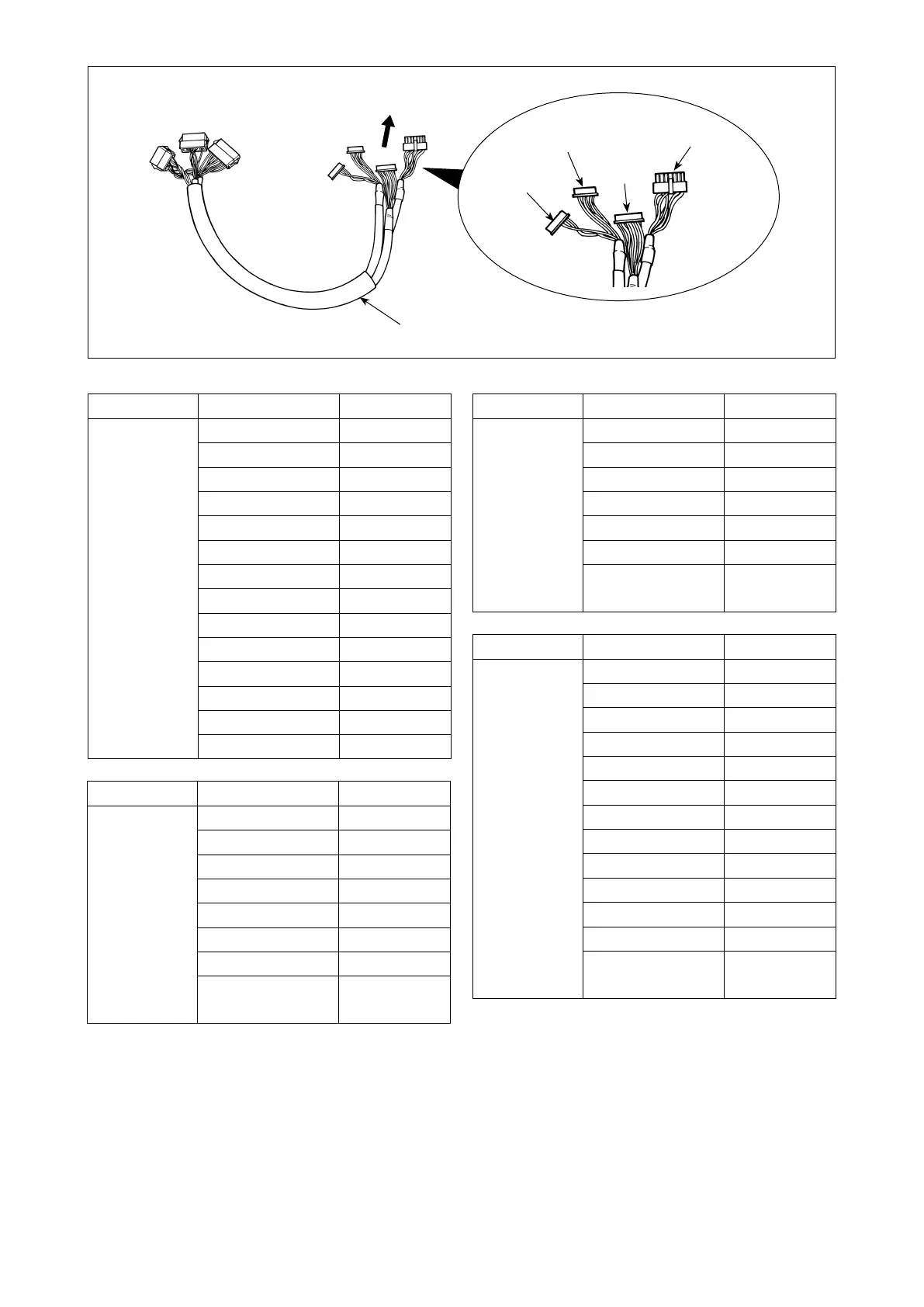

CN36 (14P) Pin No. Function
For the head
solenoid
1 TRM Mg (–)
8 TRM Mg (+)
7 TR Mg (–)
14 TR Mg (+)
10 FG
5 BT SW
12 GND
4 FL SW
11 GND
2 WP Mg (–)
9 WP Mg (+)
6 BT Mg (–)
13 BT Mg (+)
3 -
CN44 (24P) Pin No. Function
For the touch
back switch
asm.
4 DL SW
5 ABT SW
6 NU SW
7 2P SW
8 TC SW
12 GND
1, 2, 3, 9, 10, 11,
13 to 24
-
CN58 (22P) Pin No. Function
For limiting
the alter-
nate vertical
movement
speed
2 GND
9 +24V
7 +12V
14 DL Volume
4 DL Limit SW1
5 DL Limit SW2
8 GND
1, 3, 6, 10 to 13,
15 to 22
-
CN59 (26P) Pin No. Function
For the sole-
noid valve
11 FL
12 BT
13 DL
14 SS
15 2P
16 FL2
17 TRM
18 TRM RET
19 TC
22 DLSW LED
23 2PSW LED
1 to 5 +24V
6 to 10, 20, 21,
24, 25, 26
-
CN44(24P)
CN59
(26P)
CN58(22P)
CN36(14P)
Connect to the controller box side
Relay cord
