3-11
(1) IP switch setting -40046222 or 40040690-
DIP switch 1: Spare
1 OFF: Spare
2 OFF: Spare
3 OFF: Spare
4 OFF: Spare
5 OFF: Spare
6 OFF: Spare
7 OFF: Spare
8 OFF: Spare
DIP switch 2: Setting as per specification
1 ON: Selection of TR6/TR5 model: ON for TR6, OFF for TR5
2 OFF: Selection of D/S model: ON for D (TR6D, TR5D), OFF for S (TR6S, TR5S)
3 2: Selection of language: ON for English, OFF for Japanese
4 2: Direction of transfer: ON for left to right, OFF for right to left
5 OFF: Fixed to OFF
6 OFF: WDT
7 OFF: Disabling limit signals
8 OFF: Enabling/disabling mounter cover open
DIP switch 3: Optional setting
1 1: Slow 2 mode: ON/OFF
2 1: BOX for run-out components: ON/OFF
3 ON: Function preventing wrong tray insertion
4 2: Inspection transfer: ON/OFF
5 2: Automatic width adjustment of transfer section: ON/OFF
6 2: Supporting EX size PWB: ON/OFF
7 OFF: Flash memory starting mode
8 OFF: Two lights of the signal tower ON/OFF
DIP switch 4: Revision of pattern functions
1 3: P_REV0
2 3: P_REV1
3 3: P_REV2
4 3: P_REV3
5 3: F_REV0
6 3: F_REV1
7 3: F_REV2
8 3: F_REV3

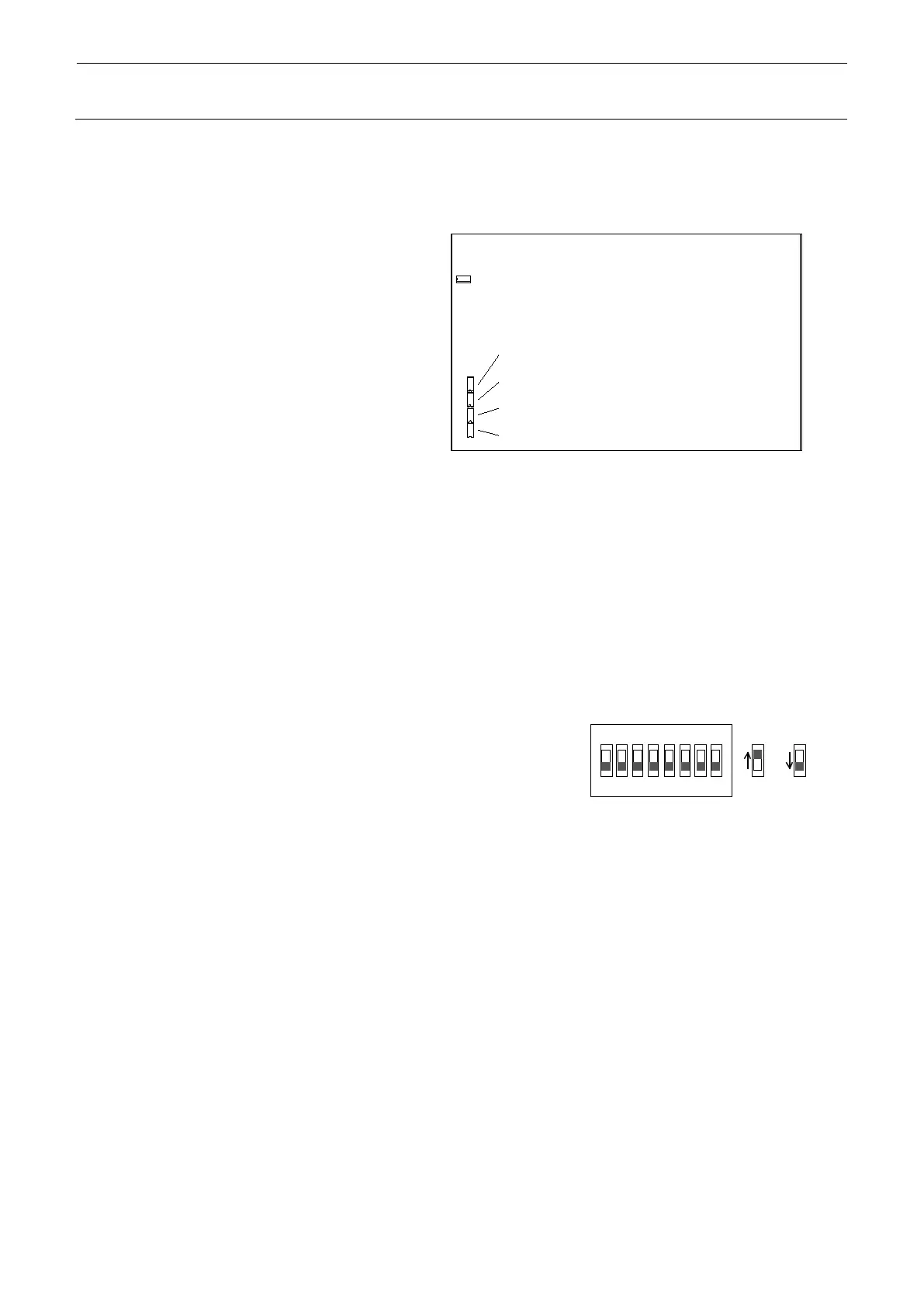

DIP switches arranged on PCB
DIPSW1
DIPSW2
DIPSW3
DIPSW4
DIPSW5
