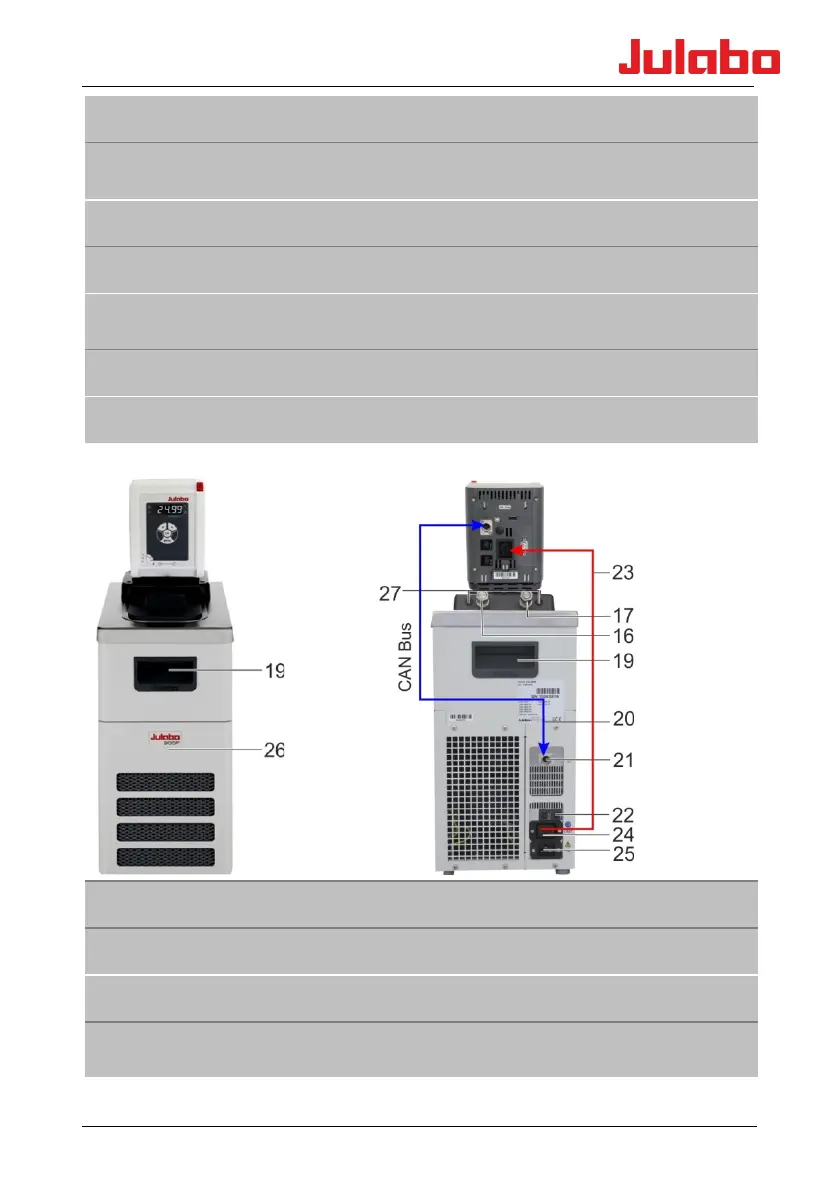

Control and function elements
13
12 RS232 interface
13
Mains connection: Integrated connector for voltage supply (mains cable included
as accessory)
14 Fuses: Miniature circuit-breaker
15 CAN plug for connecting to the refrigeration machine.
16 USB device interface (type B) for data transfer to the PC, for example for control
tasks using the EasyTEMP software.
17 Pump connection: Return, IN M16x1, external
18 Pump connection: Supply, OUT M16x1, external
Refrigerated Circulators
19 Recessed handle (front, rear)
20 CAN connection cable for refrigeration machine circulator
21 CAN plug for connecting to the circulator.
22 Fuses: Miniature circuit-breakers, for refrigeration machine
Resettable fuses for 600F refrigeration units (115 V, 100 V)
