Preparations for operating the device
16
The heater must not be in contact with the wall or the bottom of the
bath tank. Minimum distance 15 mm.
Pull the plug to disconnect the unit from the power supply before
you uninstall. Only then take the immersion circulator out of the

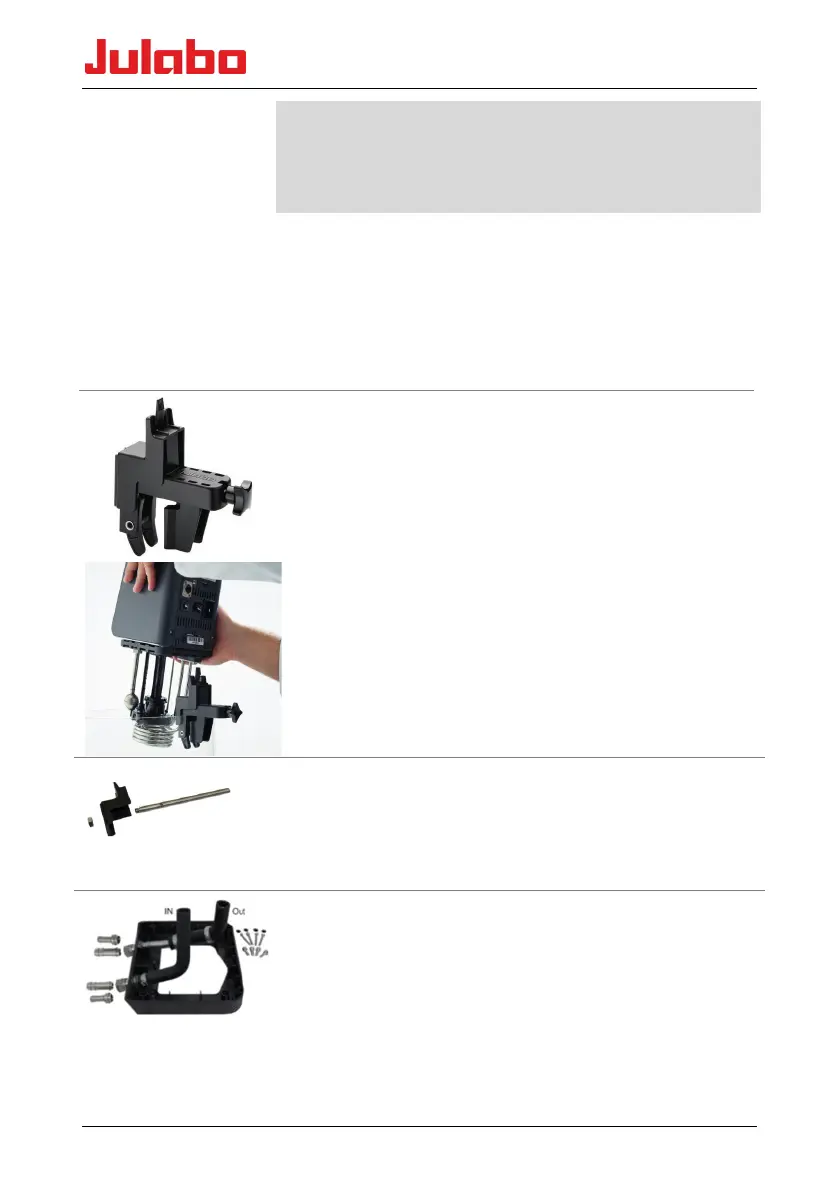

A range of accessories is available for various applications:
• Bath clamp (for securing the circulator to baths)
• Bracket (for securing the circulator to JULABO refrigeration
machines)
• Pump set (for connecting external applications)
• Cooling coil (for operating close to ambient temperature)
• Stand holder with rod (for securing to a laboratory stand)
Bath attachment clamp, order No. 9970420
• Pay special attention to the circulator's immersion depth (see
Technical data) when selecting the bath.
• Place the bath on a flat surface on a pad made of non-
flammable material.
• Secure the bath attachment clamp to the bath tank. The wall
thickness may be up to 30 mm.
• Attach the circulator with a “click” to the bath attachment
clamp.
Stand attachment, order No. 9970022
For use with glass tanks a stand attachment with rod is available as
an optional accessory.
The circulator must be mounted vertically and secured against
rotation. If necessary, secure the nuts of the rod also.
Bracket, order No. 9970170
Installation on the circulator
• Slide the bracket over the heater and pump on to the
circulator
• Push the end of the tubing on the "OUT" side on to the outlet
port on the pump.
• Secure against slipping using the clamp.
