Preparations for operating the device
17

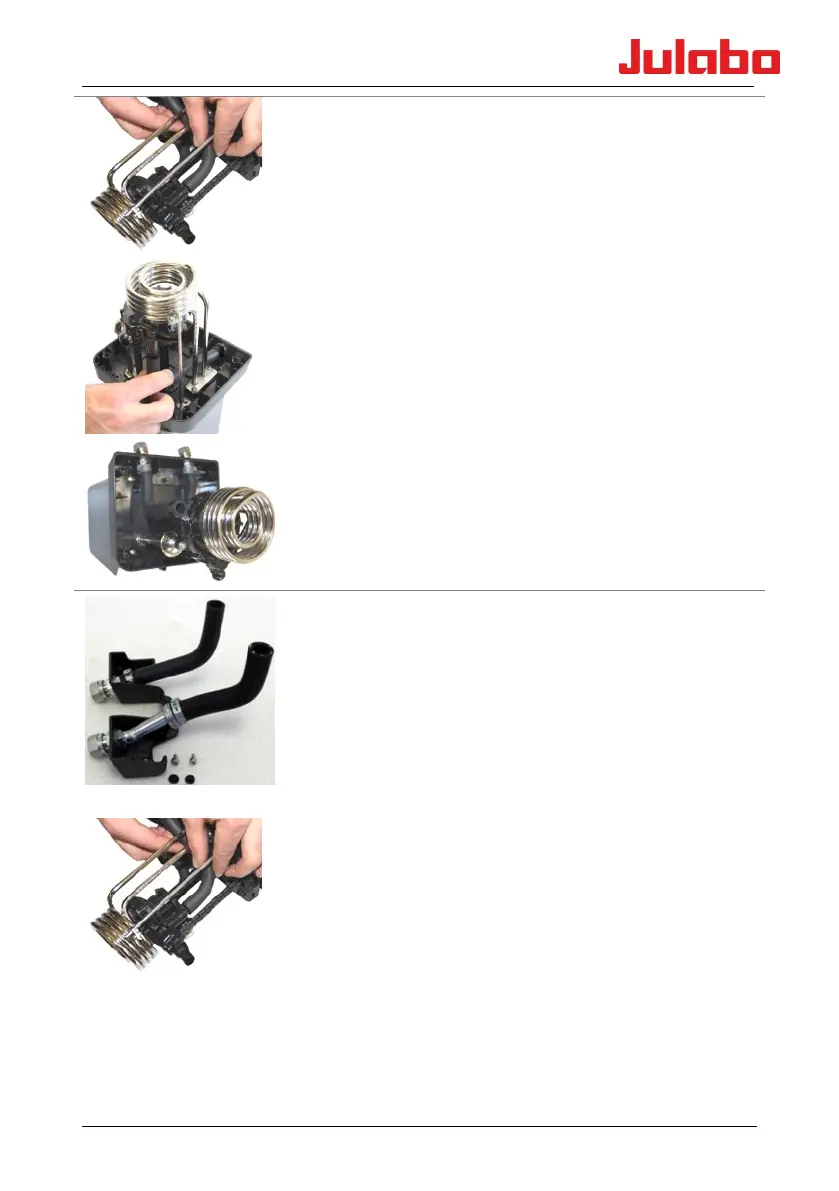

Push the end of the tubing on the "IN" side into the holding
device on the pump.
• Secure the bracket housing to the base of the circulator using
the four screws.
Connect an external system
• Remove the union nuts and sealing plates from the pump
connectors.
• The tubing connections can be used for hoses with M16x1
connections in this state.
Or:
• Secure barbed fittings to the union nuts.
• Connect tempering hoses and secure them with tube clamps
to prevent them sliding off.
• Connect the tubing for the supply and return to the pump
connectors and the external consumer and secure them with
tube clamps.
• Switch the pump function to external circulation.
Pump set, order No. 9970141
Installation on the circulator
• Push the end of the tubing on the "OUT" side on to the port
on the pump.
• Secure against slipping using the clamp.
• Push the end of the tubing on the "IN" side on to the holding
device on the pump.
• Secure the pump housing to the base of the circulator using
the two screws.
• Attach the circulator to the bath clamp.
The total immersion depth will be reduced due to the pump
set.
Connect an external system (also applies to bracket)
• Remove the union nuts and sealing plates from the pump
connectors.
• The hose connectors can be used for tubing with M16x1
connections in this state.
Or:
