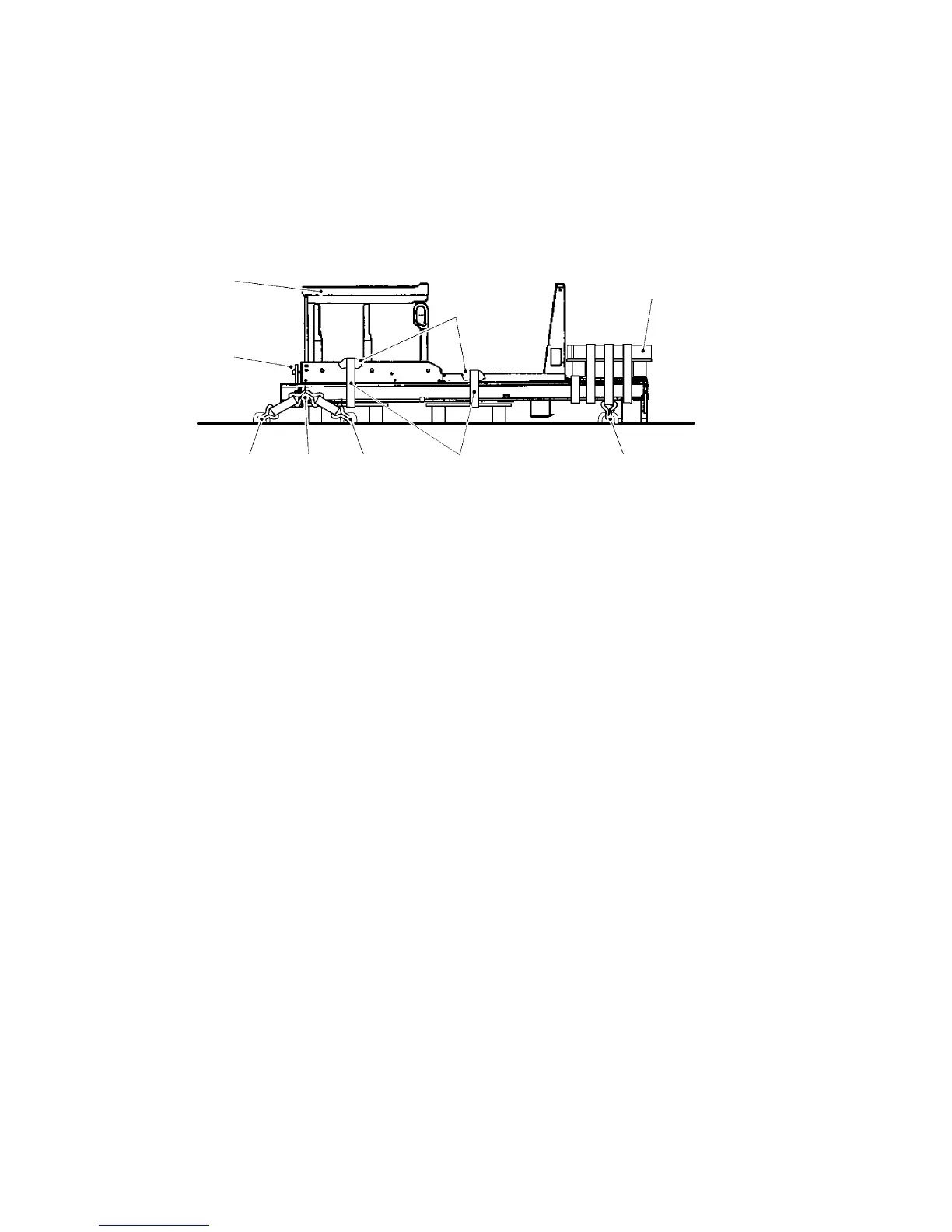

3.2 Mast transport safety
M
Use a transport retaining device (20) to prevent the operator compartment carriage
(14) from sliding.
If the mast is stored on a pallet(s), fasten them securely to the mast (18).
Use the attachment latch (19) as the "mast bottom" strap point for securing to the lorry
eyes (17).
Route the belt over the lift cylinder/chains to act as the "mast top” strap point.
M
Protect the belt placed over the lift chains with a suitable material (15).
Any supplied parts (forks (16), guide rollers etc.) can be attached to a pallet, which
can then be fastened to the mast.
14
15
16
17
18
1717
20
19
