Jungheinrich EKS 410 User Manual

0708.GB
F 16

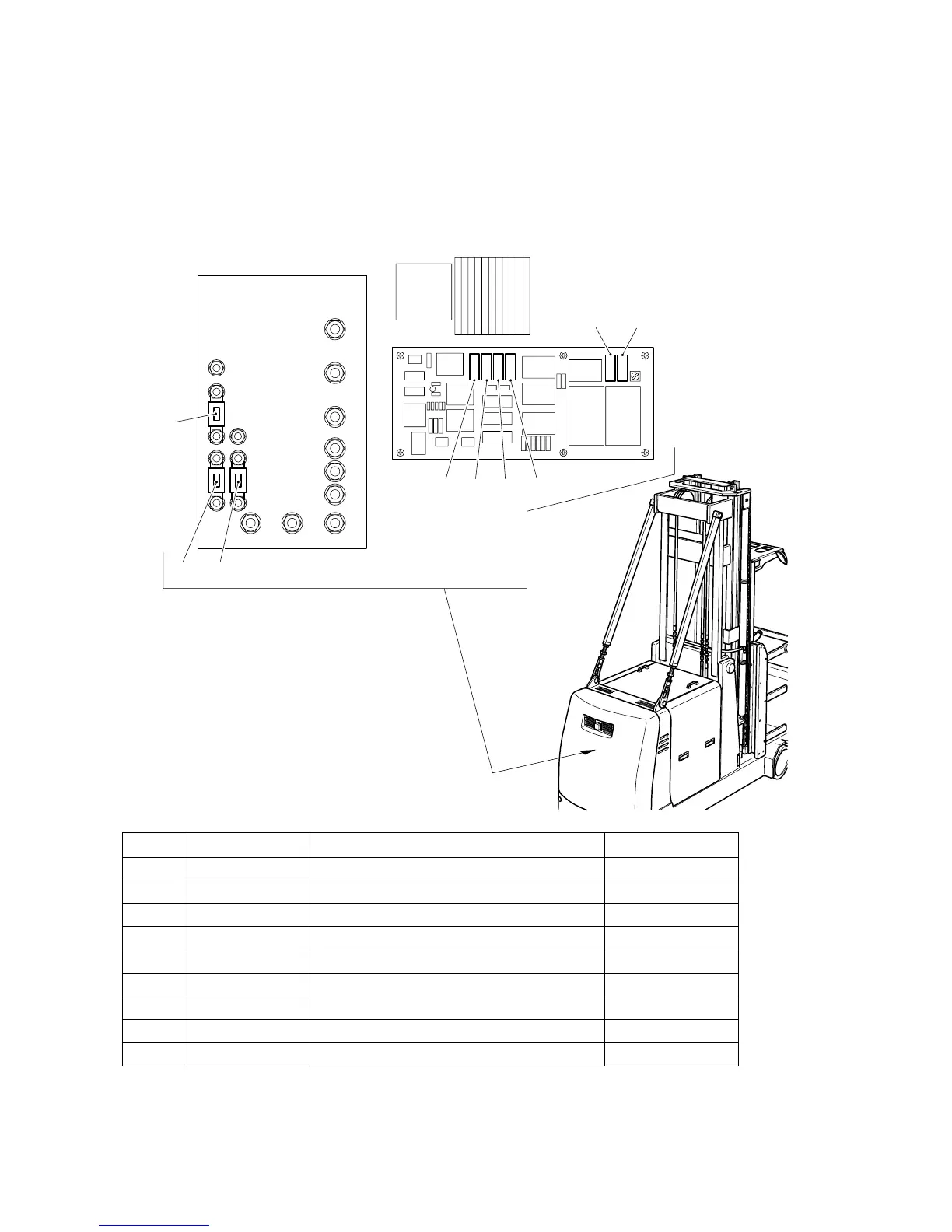

5.9 Checking electrical fuses (EKS 513 - 515)
F
Electric fuses must only be checked and replaced by authorized personnel.
– Prepare the truck for maintenance and repairs
(see Chapter F).
– Check all fuse ratings in accordance with the table; replace if necessary.
F
Only use the rating indicated on the controller. DIN and EN standardised fuses must
not be used for UL standardised fuses. The opposite also applies.
Item Description To protect: Rating
21 1F11 Travel 250 A
22 3F10 Steering 35 A
23 2F15 Hydraulics 325 A
24 F2.1 DC/DC converter U1 input 80 V 80 V / 10 A
25 5F1 Lighting and special equipment 80 V 80 V / 10 A
26 F3.1 DC/DC converter U1 output 24 V 24 V / 10 A
27 F1.2 DC/DC converter U16 input 80 V 80 V / 4 A
28 5F2 DC/DC converter U16 output 24 V 24 V / 6.3 A
29 1F3 Drive controller 1 A
2122
23
24
25
29 28 27 26
0708.GB
F 16
5.9 Checking electrical fuses (EKS 513 - 515)
F
Electric fuses must only be checked and replaced by authorized personnel.
– Prepare the truck for maintenance and repairs
(see Chapter F).
– Check all fuse ratings in accordance with the table; replace if necessary.
F
Only use the rating indicated on the controller. DIN and EN standardised fuses must
not be used for UL standardised fuses. The opposite also applies.
Item Description To protect: Rating
21 1F11 Travel 250 A
22 3F10 Steering 35 A
23 2F15 Hydraulics 325 A
24 F2.1 DC/DC converter U1 input 80 V 80 V / 10 A
25 5F1 Lighting and special equipment 80 V 80 V / 10 A
26 F3.1 DC/DC converter U1 output 24 V 24 V / 10 A
27 F1.2 DC/DC converter U16 input 80 V 80 V / 4 A
28 5F2 DC/DC converter U16 output 24 V 24 V / 6.3 A
29 1F3 Drive controller 1 A
2122
23
24
25
29 28 27 26
