Jungheinrich EKS 410 User Manual

C 5
1004.GB

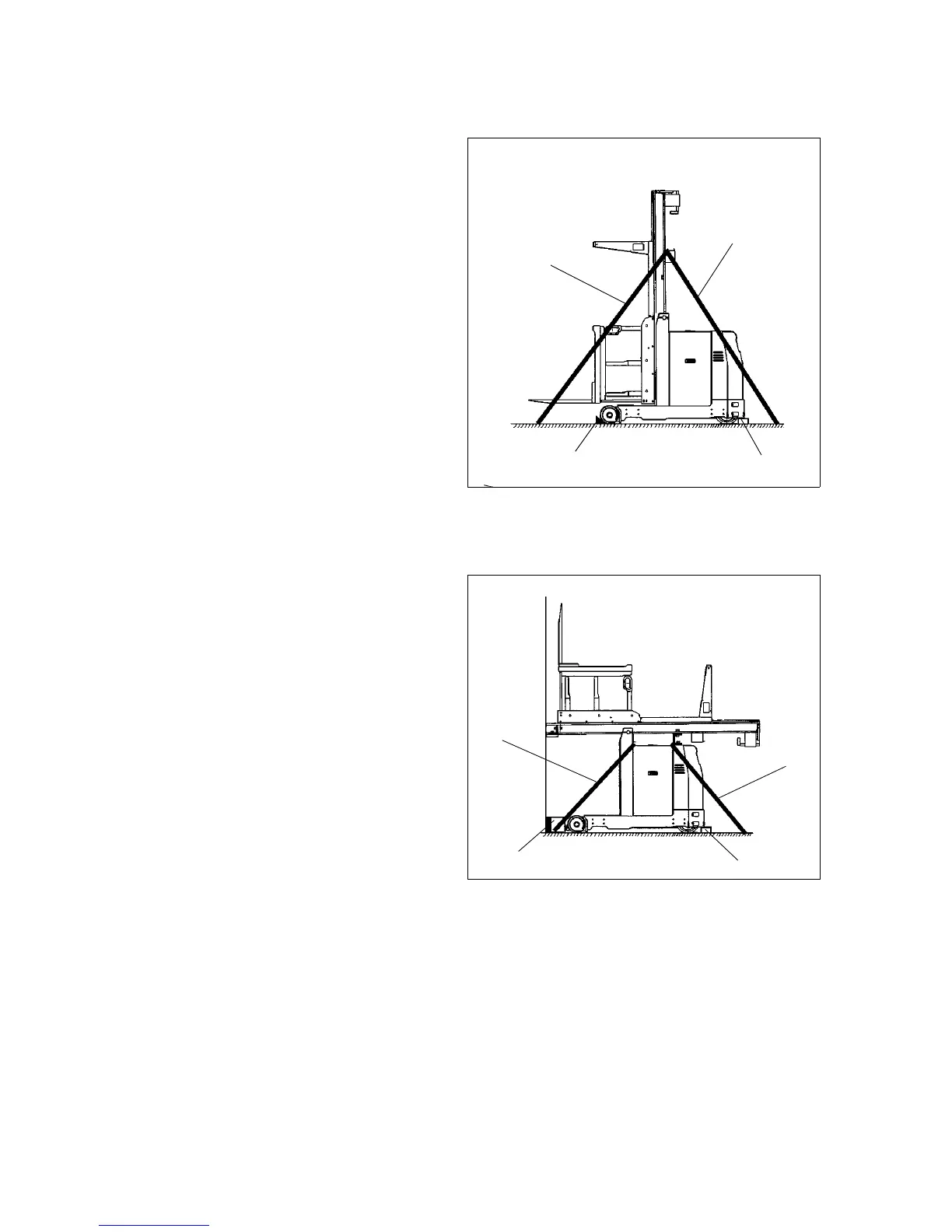

3.3 Mast assembled
Safely transporting the truck with the mast assembled
M
If the truck’s battery is supplied in the
chassis, disconnect the battery.
M
When transporting, always relieve
the drive wheel by placing the entire
surface of a wooden beam (23)
underneath the counterweight
(minimum chassis width). In addition,
secure the load wheels with a wedge
(24).
Z
Only use belts with a rated capacity
of .
EKS 410 > 5 to
EKS 513 > 9 to
At least 4 belts, 2 on the left and 2 on
the right (20, 21) must be attached to
the mast.
3.4 Safely transporting the truck with
the mast folded
(EKS 513 - 515)
M
If the truck’s battery is supplied in the
chassis, disconnect the battery.
Z
Only use belts with a rated capacity
of >9 tonnes.
Fastening belts should be attached to
at least 4 different lorry / truck eyes
(25).
F
Attention Risk of tipover through high
centre of gravity.
The tensioning belts are tensioned on the mast.
Using wooden planks, a pallet or a rubber mat (27) from the outrigger to the front of
the transporter, ensure a positive fit.
Z
Place the entire surface area of a wooden beam (26) underneath the counterweight,
the chassis width as minimum, to discharge the drive wheel.
21
22
23
24
25
25
27
26
C 5
1004.GB
3.3 Mast assembled
Safely transporting the truck with the mast assembled
M
If the truck’s battery is supplied in the
chassis, disconnect the battery.
M
When transporting, always relieve
the drive wheel by placing the entire
surface of a wooden beam (23)
underneath the counterweight
(minimum chassis width). In addition,
secure the load wheels with a wedge
(24).
Z
Only use belts with a rated capacity
of .
EKS 410 > 5 to
EKS 513 > 9 to
At least 4 belts, 2 on the left and 2 on
the right (20, 21) must be attached to
the mast.
3.4 Safely transporting the truck with
the mast folded
(EKS 513 - 515)
M
If the truck’s battery is supplied in the
chassis, disconnect the battery.
Z
Only use belts with a rated capacity
of >9 tonnes.
Fastening belts should be attached to
at least 4 different lorry / truck eyes
(25).
F
Attention Risk of tipover through high
centre of gravity.
The tensioning belts are tensioned on the mast.
Using wooden planks, a pallet or a rubber mat (27) from the outrigger to the front of
the transporter, ensure a positive fit.
Z
Place the entire surface area of a wooden beam (26) underneath the counterweight,
the chassis width as minimum, to discharge the drive wheel.
21
22
23
24
25
25
27
26
