4.5 Order picking and stacking
Collecting, transporting and depositing loads
M
Before picking up a load unit the driver must make sure that it has been correctly
palletised and does not exceed the truck’s capacity. Observe the load diagram.
– Check the fork distance for the pallet and adjust if necessary.

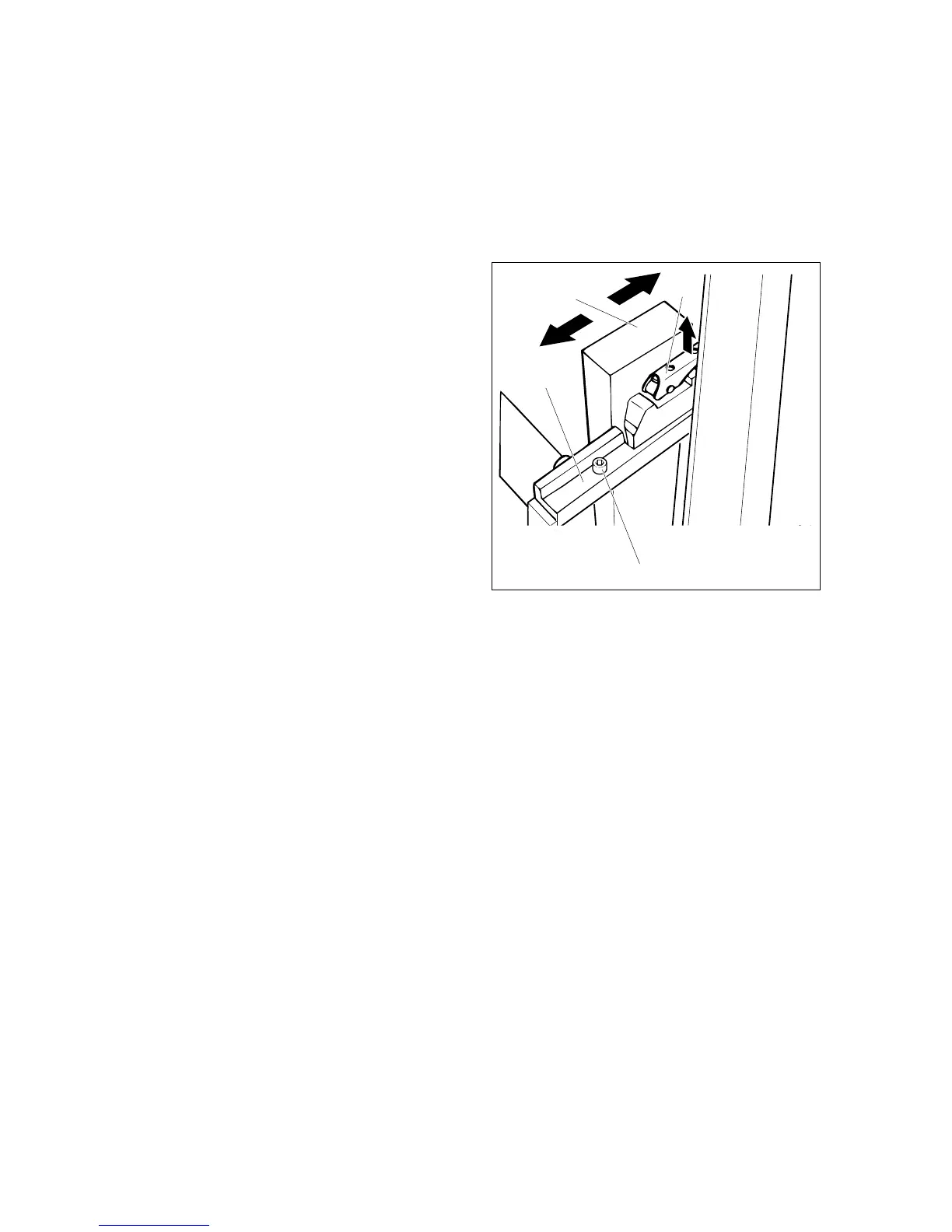

Adjusting the forks
To pick up the load securely, the forks
must be as far apart as possible and
centrally positioned with respect to the
fork carriage. The load centre of gravity
must be centrally aligned between the
forks.
– Raise the locking lever (43).
– Push the forks (44) to the correct
position on the fork carriage (45).
– Swivel the locking lever (43) down and
move the forks until the locking pin
engages in a notch.
M
Never remove the stop bolt (46).
44
43
45
46
E 17
0206.GB
4.5 Order picking and stacking
Collecting, transporting and depositing loads
M
Before picking up a load unit the driver must make sure that it has been correctly
palletised and does not exceed the truck’s capacity. Observe the load diagram.
– Check the fork distance for the pallet and adjust if necessary.
Adjusting the forks
To pick up the load securely, the forks
must be as far apart as possible and
centrally positioned with respect to the
fork carriage. The load centre of gravity
must be centrally aligned between the
forks.
– Raise the locking lever (43).
– Push the forks (44) to the correct
position on the fork carriage (45).
– Swivel the locking lever (43) down and
move the forks until the locking pin
engages in a notch.
M
Never remove the stop bolt (46).
44
43
45
46
