Jungheinrich EKS 410 User Manual

0206.GB
E 4

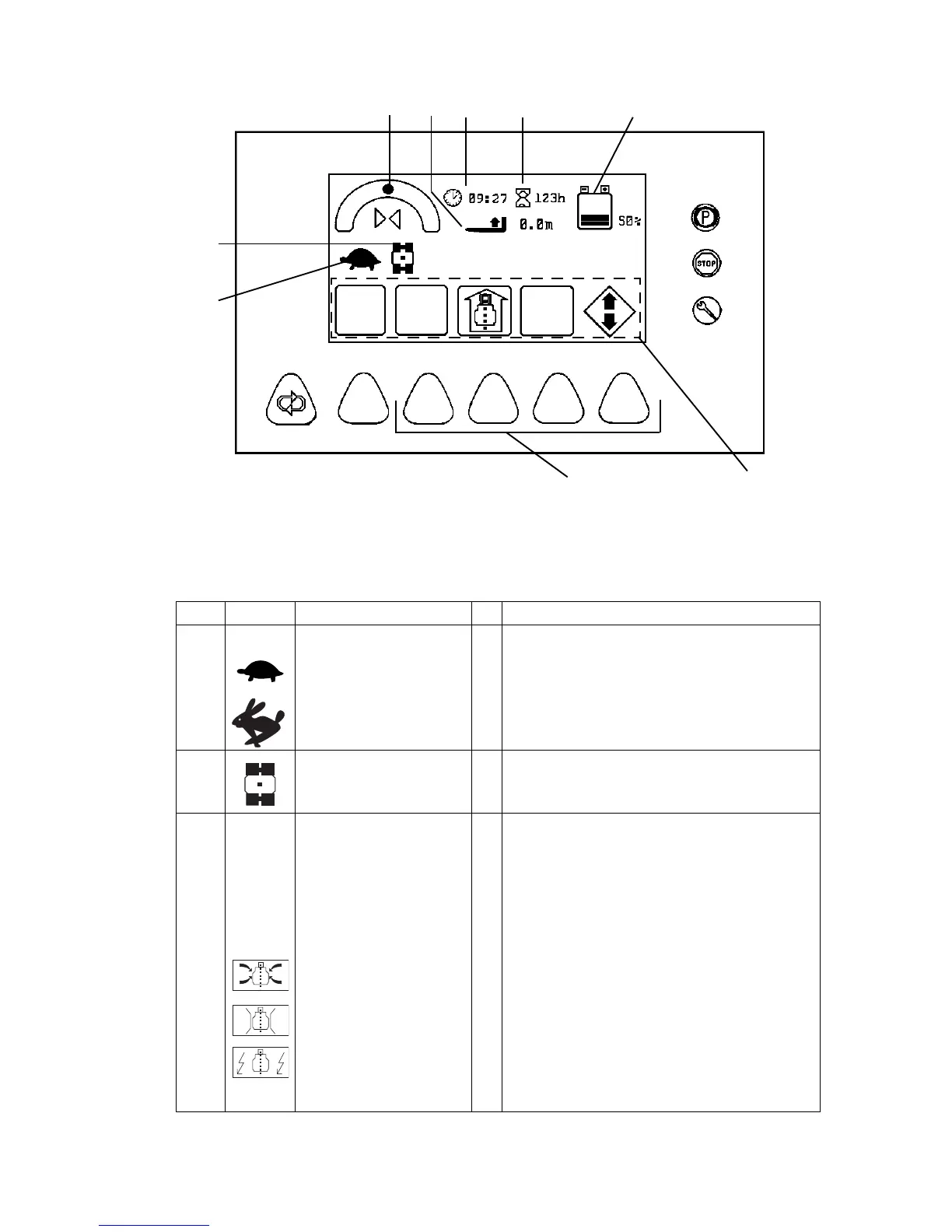

2.2 Display unit controls and displays
Upper range symbols
Item Symbol Control / Display Function
23 Displays possible
travel speeds:
Turtle
Rabbit
t
Creep mode
Max. travel speed
24 “Guidance wire
recognition” display
IG Sensors which have recognised the
guidance wire have a dark background
25 Steering angle display
changes with display
– “Tracking in
progress”
– “Automatically
guided”
– “Deviation from
guidance wire”
t
R
G
IG
IG
IG
IG
Indicates the current steering angle with
reference to the centre position
Centre position is permanently displayed
once the truck is engaged in the track
The steering angle display fades and is
replaced by guidance wire symbols
– when the truck is tracked onto the
guidance wire (inductive guidance)
– when the truck is automatically guided
by the guidance wire
– when the truck deviates without
guidance from the guidance wire and
automatic guidance
23
24
25 26 27 28 29
30
19
0206.GB
E 4
2.2 Display unit controls and displays
Upper range symbols
Item Symbol Control / Display Function
23 Displays possible
travel speeds:
Turtle
Rabbit
t
Creep mode
Max. travel speed
24 “Guidance wire
recognition” display
IG Sensors which have recognised the
guidance wire have a dark background
25 Steering angle display
changes with display
– “Tracking in
progress”
– “Automatically
guided”
– “Deviation from
guidance wire”
t
R
G
IG
IG
IG
IG
Indicates the current steering angle with
reference to the centre position
Centre position is permanently displayed
once the truck is engaged in the track
The steering angle display fades and is
replaced by guidance wire symbols
– when the truck is tracked onto the
guidance wire (inductive guidance)
– when the truck is automatically guided
by the guidance wire
– when the truck deviates without
guidance from the guidance wire and
automatic guidance
23
24
25 26 27 28 29
30
19
