F 11
0708.GB
5 Maintenance and Repairs
M
Load bearing parts of the truck, e. g. chassis and mast, may only be welded after
consultation with the manufacturer.
5.1 Prepare the truck for maintenance and repairs
All necessary safety measures must be taken to avoid accidents when carrying out
maintenance and repairs. The following preparations must be made:
Park the truck securely (see Chapter E).
Disconnect the battery to prevent the truck from being switched on accidentally
When working under a raised lift truck, secure it to prevent it from lowering, tipping
or sliding away.
F
When working under a raised fork or a raised industrial truck, secure them to prevent
them from lowering, tipping or sliding away. When raising the industrial truck also
refer to the instructions in the “Transport and Commissioning” section.
When working on the parking brake, prevent the industrial truck from rolling away.
5.2 Securing the driver’s position
carriage

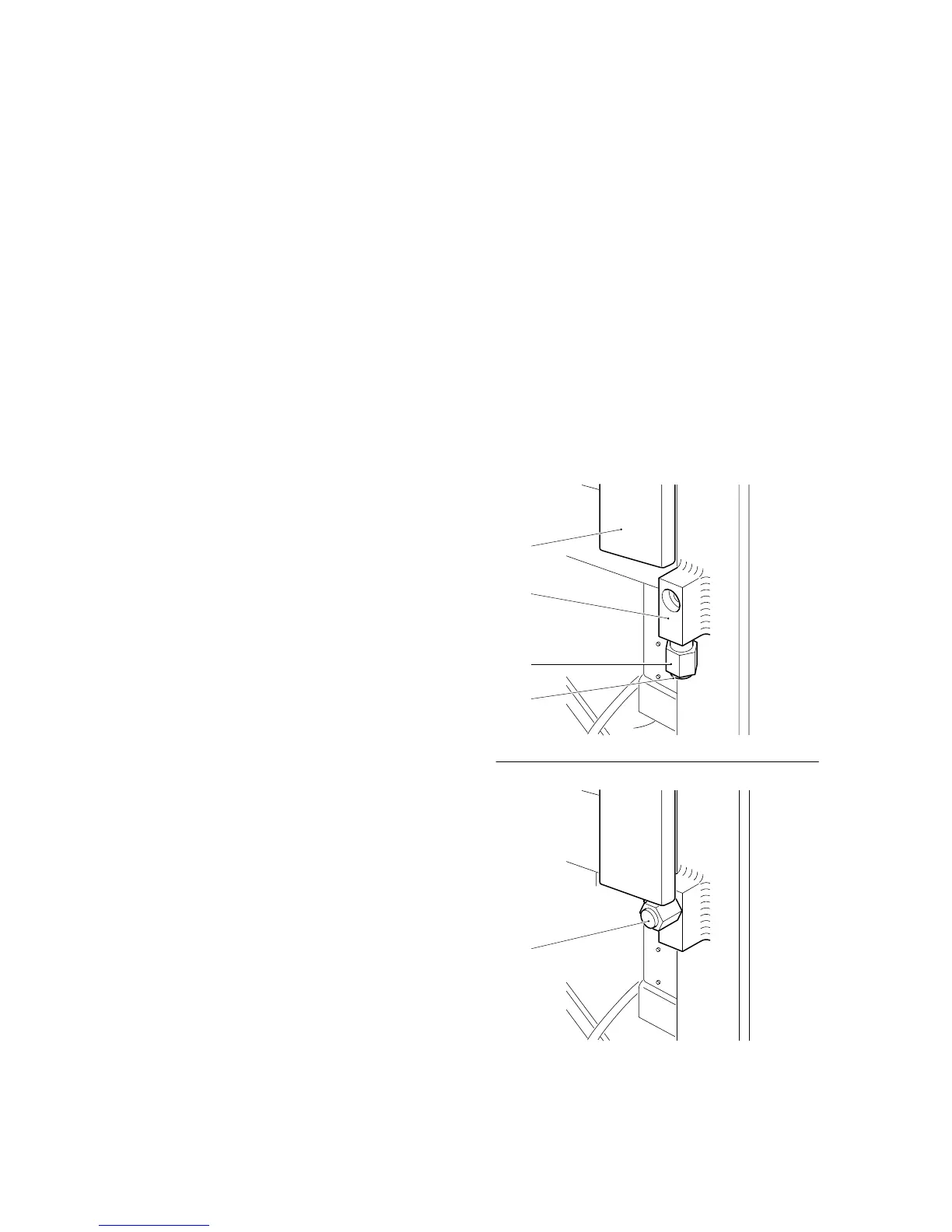

The driver’s position carriage can be
secured in the raised position.
Raise the driver’s position carriage
until the inner mast (1) is above the
carriage (2) of the load lifting safety
device.
Unscrew the attachment screw (4)
and remove the retaining bolt (3) from
the carriage (2) on the mast.
Place the retaining bolt (3) on the
vertical hole of the carriage (2) and
secure them.
Very slowly lower the driver’s position
carriage until the inner mast (1) is
positioned on the retaining bolt.
1
2
4
4
3
