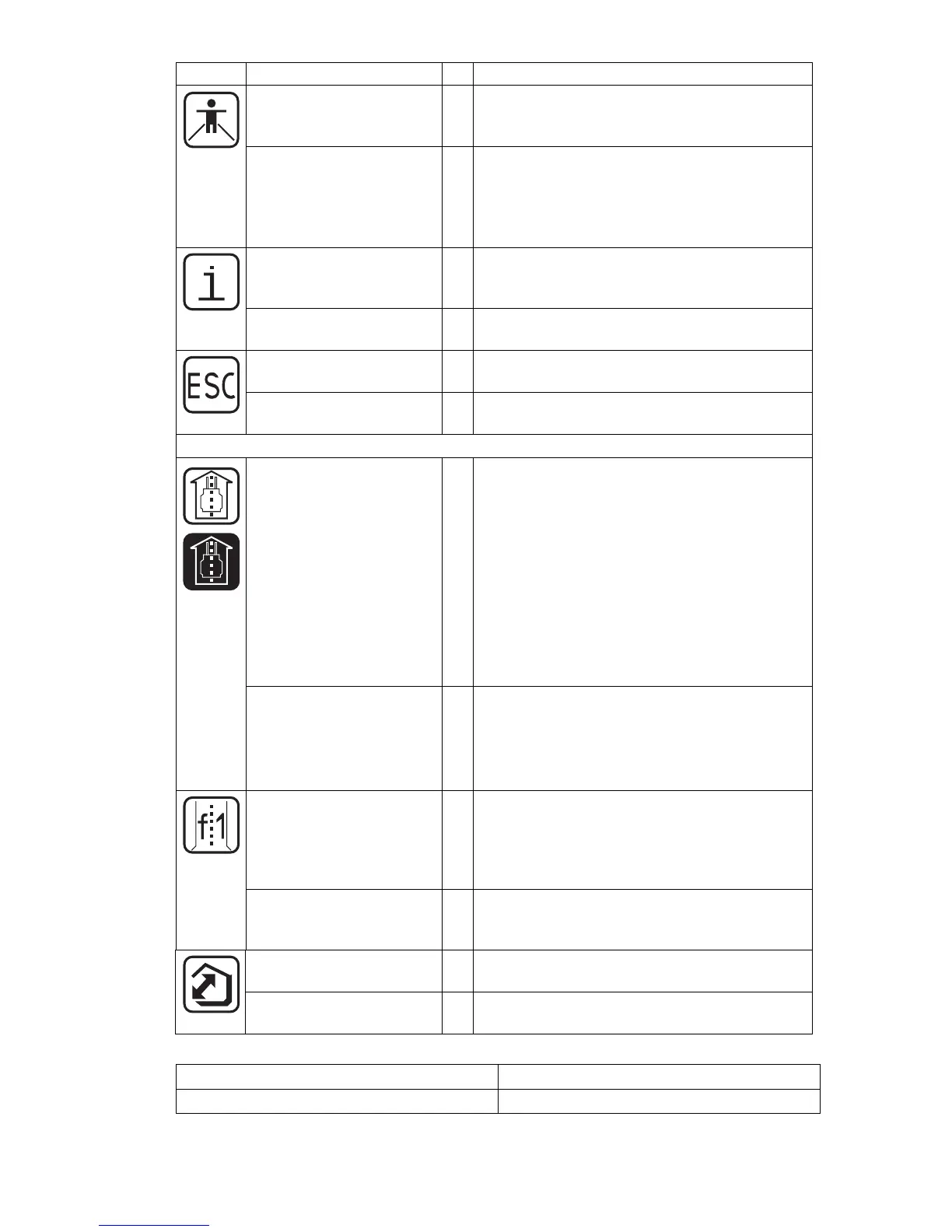

0206.GB
E 6
“Personalsafety system”
display (PSS)
o Indicates that the personal safety system
has identified persons or objects in the aisle.
The truck brakes.
“Personalsafety system”
switch (PSS)
Bypasses the protective function and
enables creep mode if there is sufficient
distance from the obstacle.
If a personal safety system is fitted, read the
accompanying operator manual.
Select “Warning sub-
menu” display
o Indicates that several warnings (e.g. slack
chain safety device height dependent lift
cutout) have been issued.
Quit “warnings” sub-
menu.
Displays individual warnings
Quit “warnings” sub-
menu.
o Indicates that the sub-menu can be quit.
“Cancel warnings sub-
menu” switch
Sets the “warnings” sub-menu to the
standard menu
Guidance systems
“Guidance on” display
not active
“Guidance on” display
active
t
R
G
W
G
Displays automatic guidance in the aisle:
Rail guidance display
(drive wheel set to forward position)
Indicates that inductive guidance is
activated
“Guidance on” switch R
G
W
G
Sets the drive wheel to forward position
Activates the blending in process (and
frequency selection for multi-frequencies)
Displays “Select
Frequency 1” (similar to
other frequencies)
(“Guidance on” sub-
menu)
o
IG
Indicates that guidance is possible via
Frequency 1
“Select Frequency 1”
switch (similar to other
frequencies)
Activates guidance via Frequency 1 (sub-
menu is quit automatically after 1 sec.)
“Special attachment”
display
o Indicates that the special attachment can be
controlled
“Special attachment” key Activates control of the special attachment,
controlled via the hydraulic control button
t = Standard equipment o = Optional Equipment
RG = Rail guidance IG = Inductive guidance
Symbol Control or Display Function
0206.GB
E 6
“Personalsafety system”
display (PSS)
o Indicates that the personal safety system
has identified persons or objects in the aisle.
The truck brakes.
“Personalsafety system”
switch (PSS)
Bypasses the protective function and
enables creep mode if there is sufficient
distance from the obstacle.
If a personal safety system is fitted, read the
accompanying operator manual.
Select “Warning sub-
menu” display
o Indicates that several warnings (e.g. slack
chain safety device height dependent lift
cutout) have been issued.
Quit “warnings” sub-
menu.
Displays individual warnings
Quit “warnings” sub-
menu.
o Indicates that the sub-menu can be quit.
“Cancel warnings sub-
menu” switch
Sets the “warnings” sub-menu to the
standard menu
Guidance systems
“Guidance on” display
not active
“Guidance on” display
active
t
R
G
W
G
Displays automatic guidance in the aisle:
Rail guidance display
(drive wheel set to forward position)
Indicates that inductive guidance is
activated
“Guidance on” switch R
G
W
G
Sets the drive wheel to forward position
Activates the blending in process (and
frequency selection for multi-frequencies)
Displays “Select
Frequency 1” (similar to
other frequencies)
(“Guidance on” sub-
menu)
o
IG
Indicates that guidance is possible via
Frequency 1
“Select Frequency 1”
switch (similar to other
frequencies)
Activates guidance via Frequency 1 (sub-
menu is quit automatically after 1 sec.)
“Special attachment”
display
o Indicates that the special attachment can be
controlled
“Special attachment” key Activates control of the special attachment,
controlled via the hydraulic control button
t = Standard equipment o = Optional Equipment
RG = Rail guidance IG = Inductive guidance
Symbol Control or Display Function
