(No.MB014)1-15

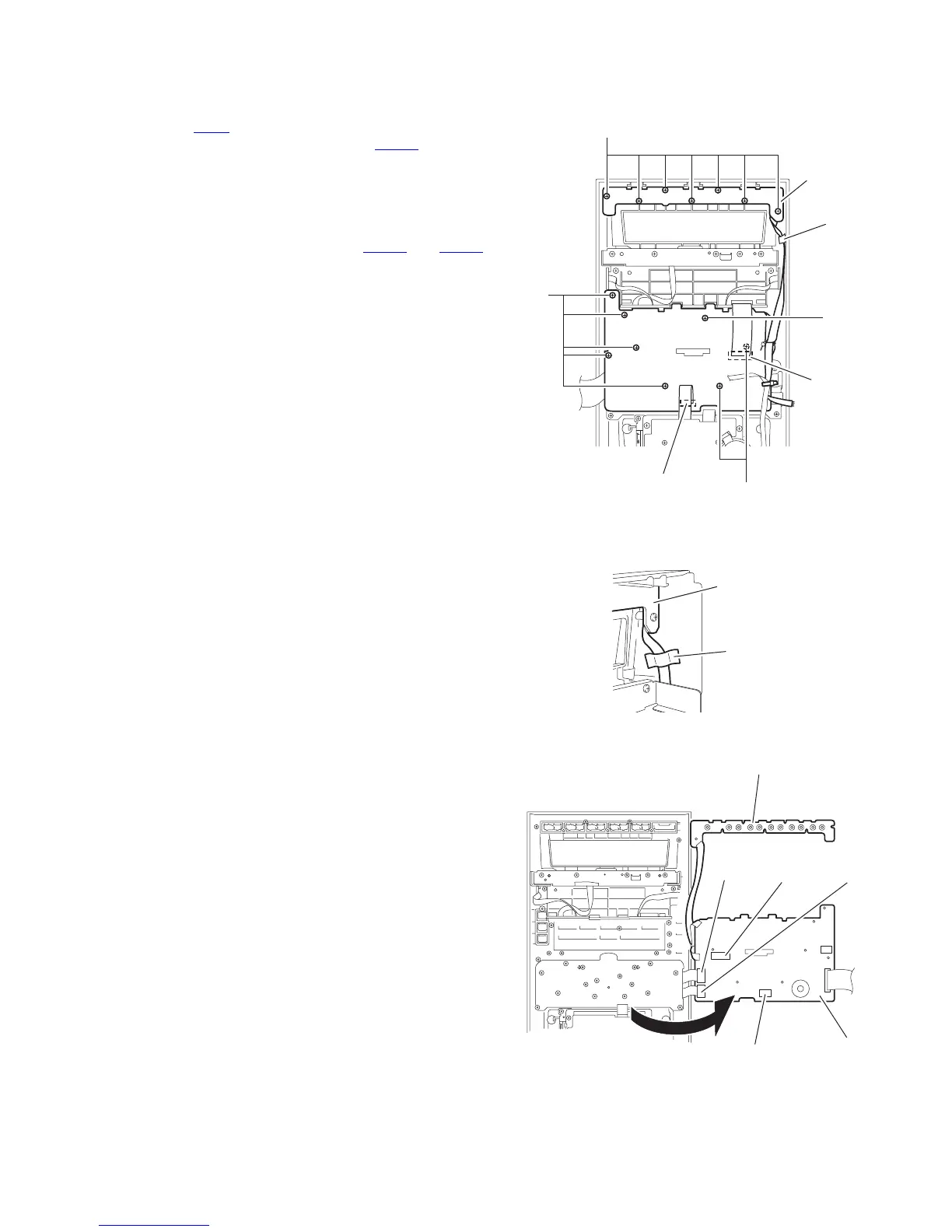

3.1.13 Rmoving the switch / micon board
(See Fig.27~29)
• Prior to performing the following procedure, disconnect the
card wire from CN43
on the micon board.
(1) Disconnect the card wire from connector CN840 on the mi-
con board.
(2) Remove the fifteen screws S attaching the switch / micon
board.
(3) Remove the spacer fixing the wire.
(4) Move the switch /micon board in the direction of the arrow
to disconnect the wire from connector CN880
and CN900
on the micon board.
Fig.27
Fig.28
Fig.29
S
S
S
S
CN43
Micon board
CN840
Switch board
Spacer
Spacer
Switch board
CN880
Switch board
CN900
Micon board
CN43
CN840
