JVC HX-Z10 Service Manual

(No.MB014)1-7
SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the metal cover
(See Fig.1~3)
(1) Remove the six screws A on the back of the body.
(2) Remove the screw B on each side of the body.
(3) Remove the metal cover from the body by lifting the rear
part of the cover.
CAUTION:
Do not break the front panel tab fitted to the metal cover.

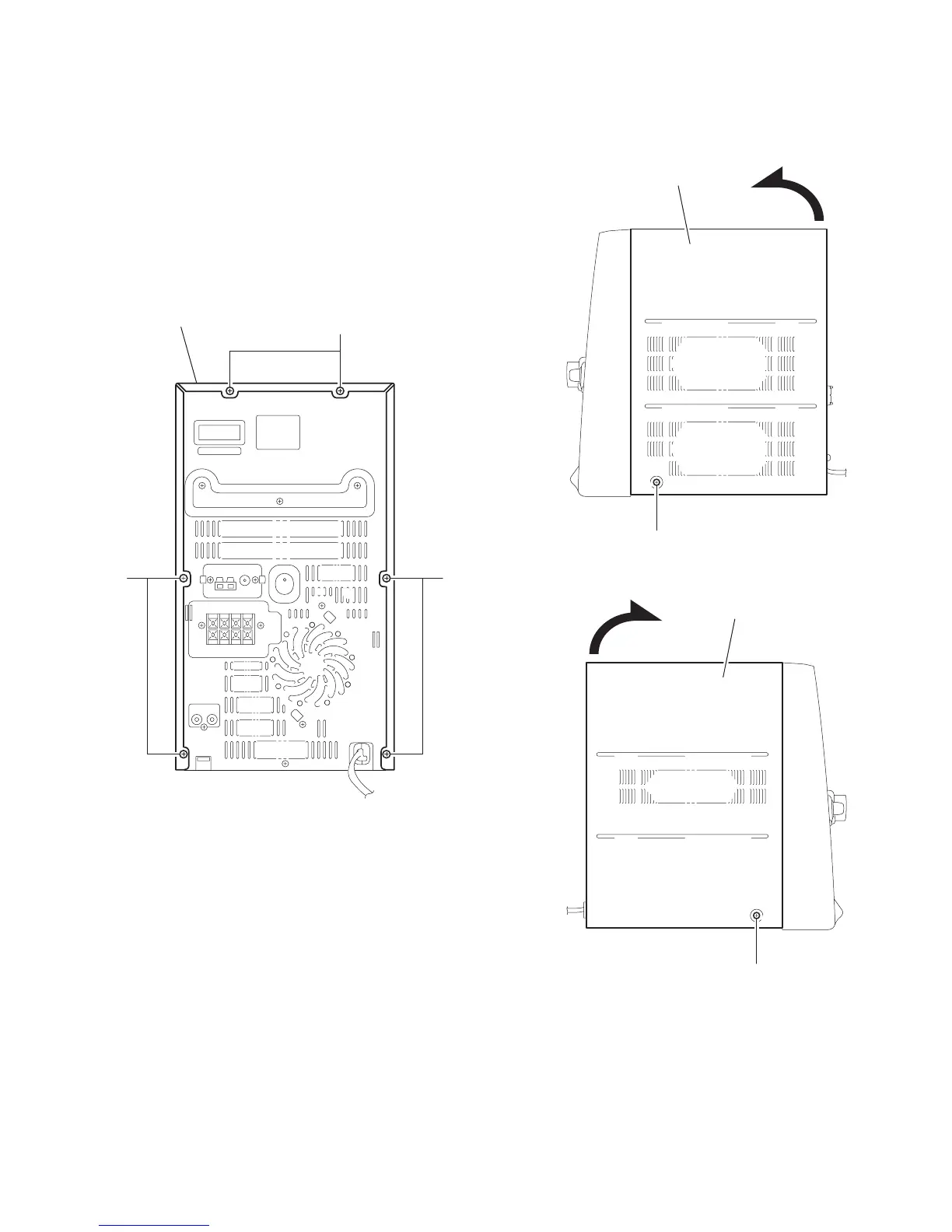

Fig.1
Fig.2
Fig.3
A
AA
Metal cover
Metal cover
B
Metal cover
B
