3.1.3 Removing the front panel assembly
(See Fig.6~9)
• Prior to performing the following procedure, remove the metal
cover and the CD changer mechanism assembly.
(1) Disconnect the card wires from connector CN44
and
CN870
on the main board on the right side of the body.
(2) Disconnect the wire from connector CN701
on the bridge
board.
(3) Cut the band.
(4) Disconnect the wire from connector CN231
,CN232 on the
primary board on the left side of the body and remove the
band fixing the wire.
(5) Disconnect the ground wire extending from phones board
from bottom chassis.
(6) Remove the three screws D attaching the front panel as-
sembly at the bottom of the body.
(7) Release the two joints a on the lower left and right sides of
the front panel assembly using a screwdriver, and remove
the front panel assembly toward the front.
REFERENCE:
Front panel need to be tilt a little bit as release from bottom
chassis.

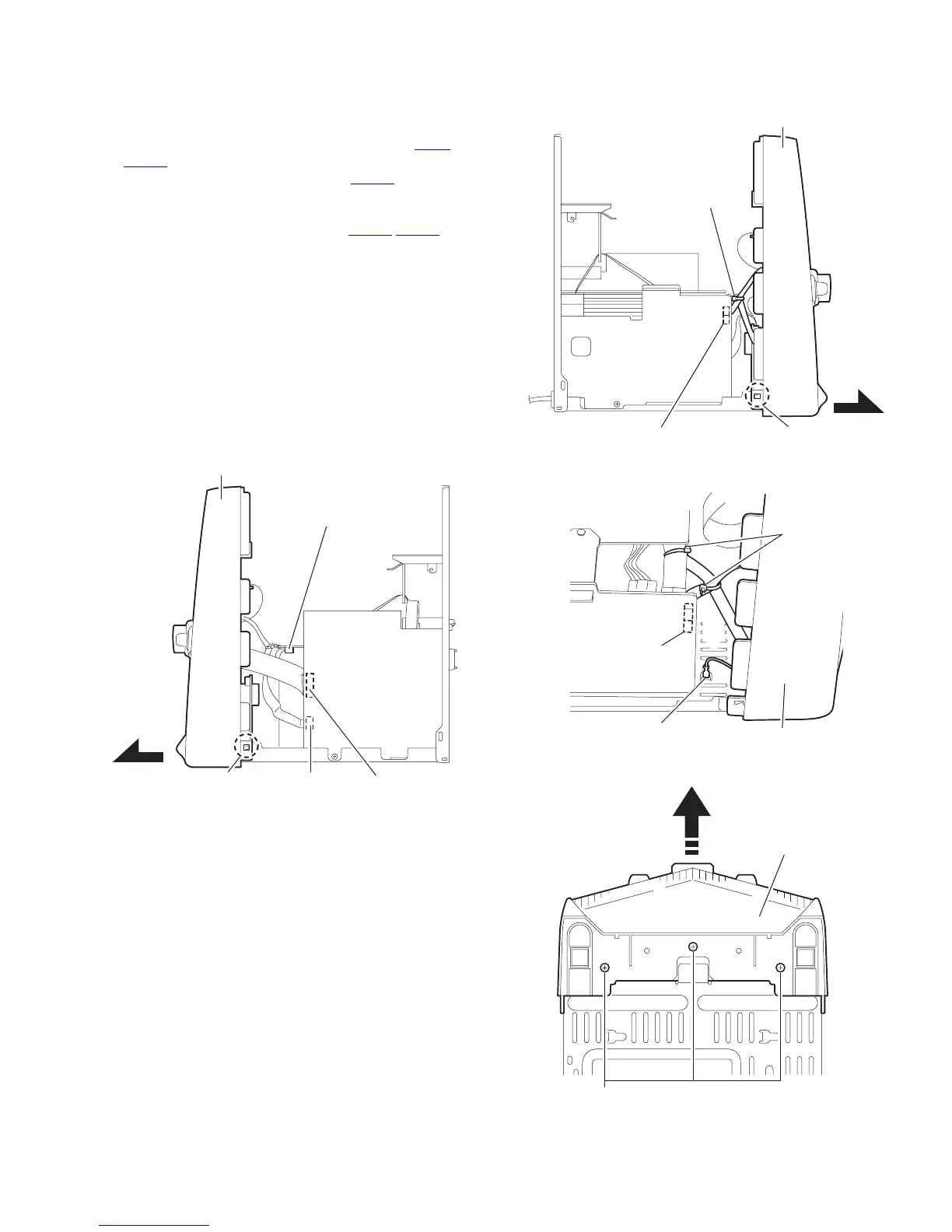

Fig.6
Fig.7
Fig.8
Fig.9
Front panel assembly
Bridge board
CN701
Main board
CN870
CN44
a
Front panel assembly
Primary board
CN231,CN232
Band
a
Ground wire
Band
Primary board
CN231,CN232
Front panel assembly
Front panel aeembly
D
