JVC HX-Z10 Service Manual

1-36 (No.MB014)
3.4.5 Removing the woofer
(See Fig.5)
• Prior to performing the following procedure, remove the side
cover and the front panel.
(1) Remove the four screws E attaching the woofer.
(2) Disconnect the red and black wires from the two terminals
on the woofer.
3.4.6 Removing the woofer
(See Fig.5)
• Prior to performing the following procedure, remove the side
cover and the front panel.
(1) Remove the four screws F attaching the woofer.
(2) Disconnect the three black wires and the black, red and
blue wires from the two terminals on the woofer respective-
ly.

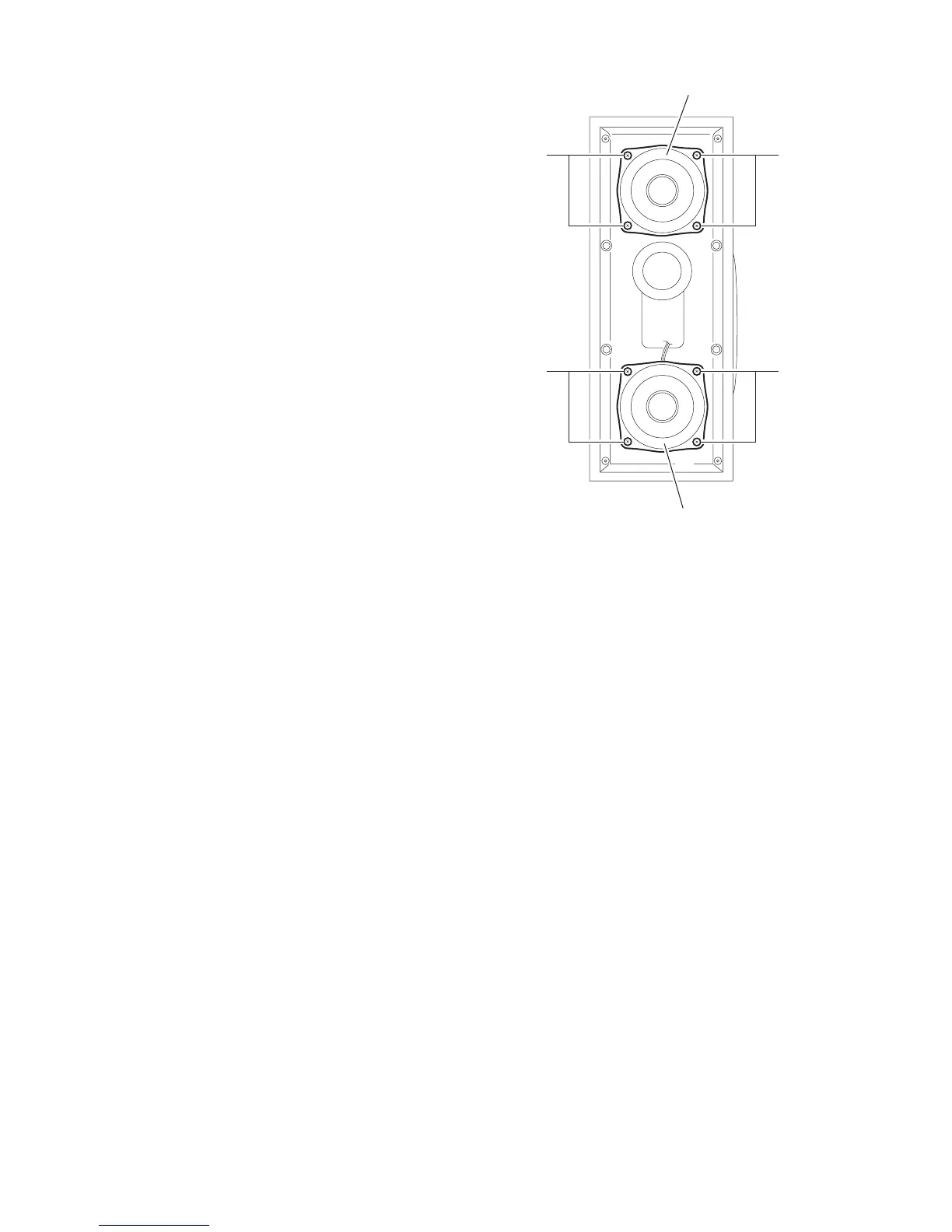

Fig.5
EE
FF
Woofer
Woofer
