3.2.9 Removing the lifter assembly
(See Fig.23 ~ 27)
• Prior to performing the following procedure, remove the tray
assembly and side (L)/ side (R) assembly.
(1) From top of the body, turn the 1 gear clockwise to move the
lifter assembly upward as shown in Fig.24.
(2) From top of the body, turn the 2 gear clockwise to move the
hook toward the front until it stops.
(3) Move the hook stopper in the direction of the arrow while
pushing the tab r of the hook stopper to unlock it. Release
four joints s to detach from the rack holder.
Release the rod from part t.
(4) Turn the 1 gear clockwise again to move the lifter assembly
upward.
(5) Remove the lifter assembly from the body upward at posi-
tion u where the four pins on the right and left sides of the
lifter assembly fit to the notches of the v.
Move the lifter assembly toward the front and release from
the hook.

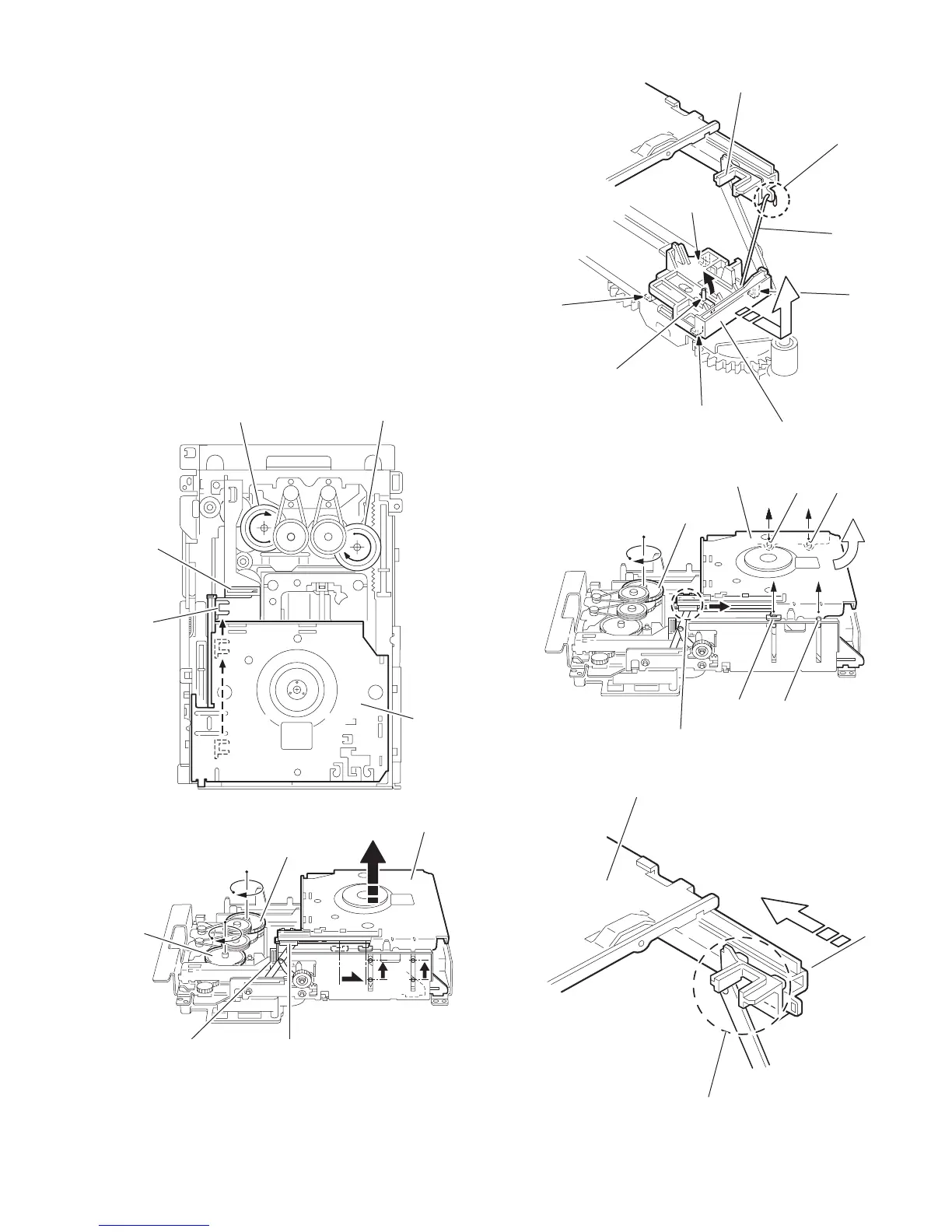

Fig.23
Fig.24
Fig.25
Fig.26
Fig.27
2 gear
1 gear
Lifter
assembly
Hook
Hook stopper
2 gear
1 gear
Hook
Hook stopper
Lifter assembly
Hook
Hook stopper
Rod
t
s
s
s
s
r
1 gear
u u
u
v
u
Lifter assembly
Lifter assembly
v
