1-18 (No.MB014)
3.2 CD changer mechanism
3.2.1 Removing the tray assembly
(See Fig.1 ~ 5)
(1) Remove the two screws A from the top cover and release
the two joints a on both sides of the body.
(2) Remove the top cover with the two rods attached to the top
cover and lifter assembly respectively.
(3) Remove the open det lever on the left side of the body.
(4) Push part b of the slide (R) assembly on the right side of
the body to unlock the tray assembly. Draw out the trays to-
ward the front.
Attention:
The tray can be locked if all tray assemblies are at-
tached.
(5) From top of the body, move the stopper tab c in the direc-
tion of the arrow and release. Pull out the tray assemblies
from the body.
Caution:
Remove the tray assembly from top tray 5 in order.
Attention:
When reattaching the sub tray of the tray assembly, or when
removing the CD remaining inside, refer to another section.

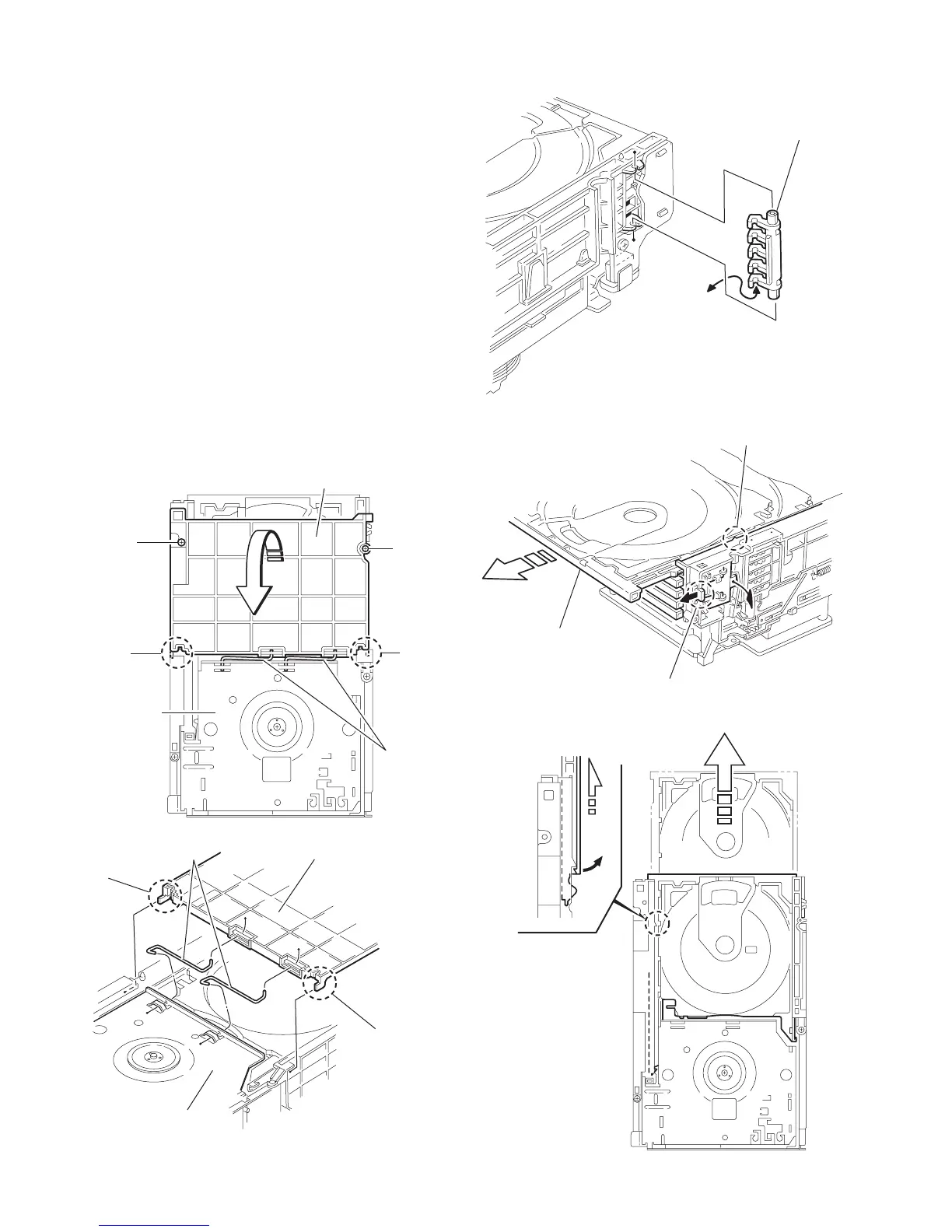

Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Top cover
Lifter assembly
Rod
A
a
a
A
a
Rod
Top cover
Lifter assembly
a
Open det leve
b
Tray assembly
(Tray 5)
c
To Next Page
