JVC HX-Z10 Service Manual

1-8 (No.MB014)
3.1.2 Removing the CD changer mechanism assembly
(See Fig.4, 5)
• Prior to performing the following procedure, remove the metal
cover.
(1) Disconnect the card wire from connector CN651 on the CD
servo control board on the right bottom of the CD changer
mechanism assembly.
(2) Remove the four screws C attaching the CD changer
mechanism assembly on top of the body.
(3) Remove the CD changer mechanism assembly while lifting
the rear part.
CAUTION:
Do not damage the CD fitting when removing the CD changer
mechanism assembly.

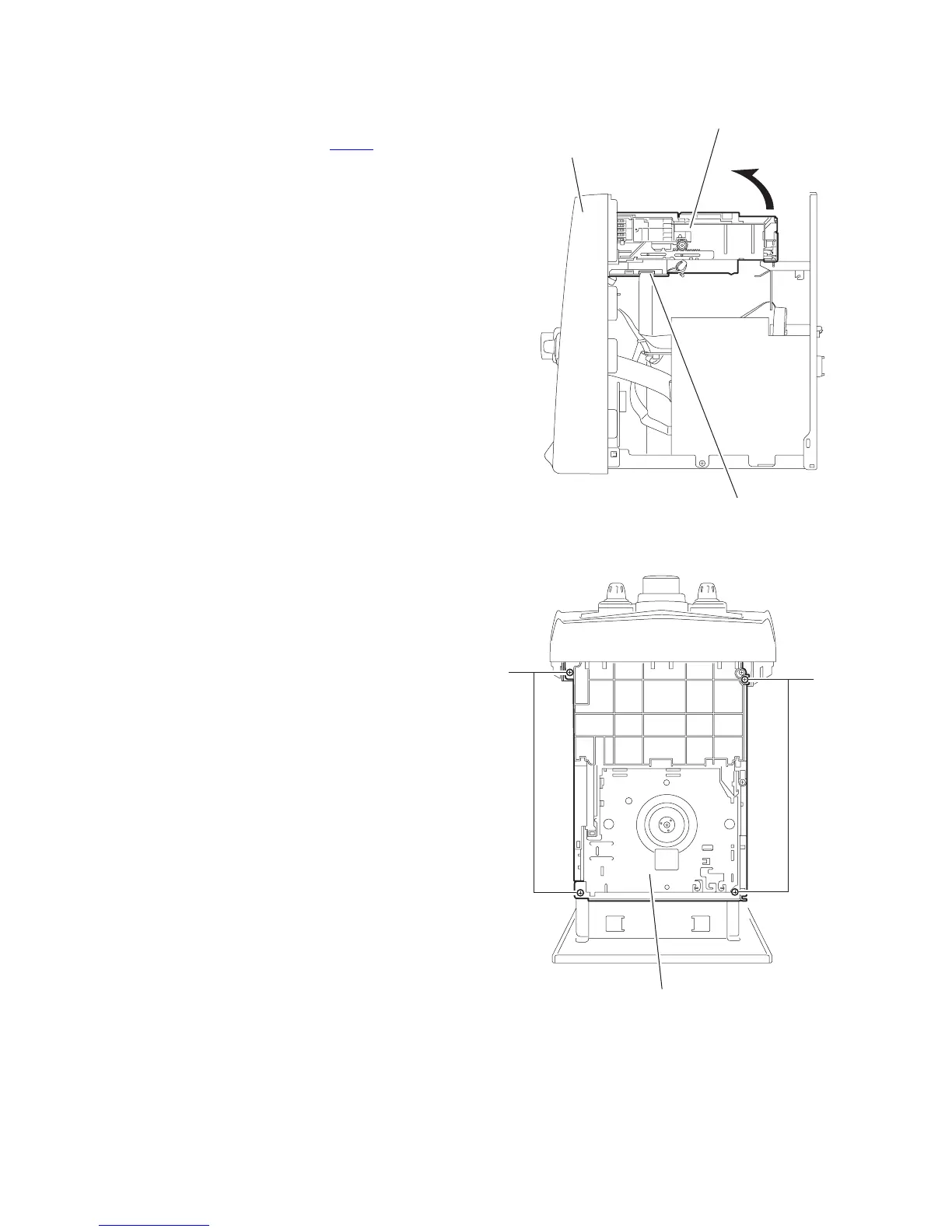

Fig.4
Fig.5
CD changer mechanism assembly
CD servo control board
CN651
Front panel assemby
CD changer
mechanism assembly
C
C
