1-16 (No.MB014)
3.1.14
Removing the FL b
oard assembly
(See Fig.30, 31)
•
Prior to performing the followi
ng
procedure, remove the switch
/ micon board.
(1)
Remove the five screws
T
attaching the stay bracket (1).
(2)
Remove the three screws
U
attaching
the FL board as-
sembly.

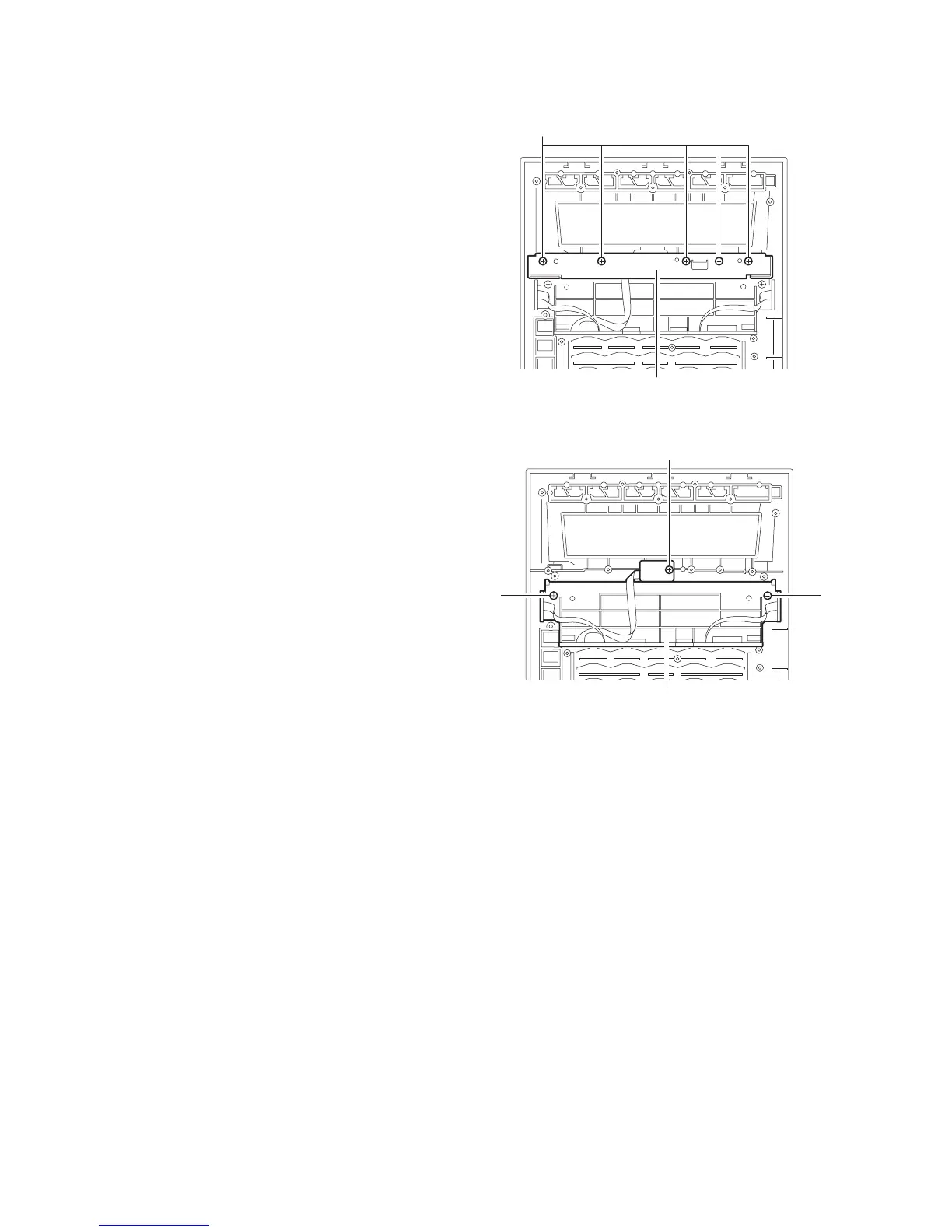

Fig.30
Fig.31
T
Stay bracket (1)
U
UU
FL
board assembly
12
14
Table of Contents
Table of Contents
1
Specification
2
Preventing Static Electricity
3
Handling the Traverse Unit (Optical Pickup)
3
Ground the Workbench
3
Disassembly
4
Main Body
4
Removing the Metal Cover
4
Removing the CD Changer Mechanism Assembly
5
Removing the Front Panel Assembly
6
Removing the Tuner Pack Assembly
7
Removing the Rear Panel
8
Rmoving the Fan Assembly
9
Removing the Main Board
9
Removing the Bridge Board / Regulator Board / Heat Sink
10
Removing the Power Transformer Assembly
11
Front Panel Assembly
11
Removing the Cassette Mechanism Assembly
11
Removing the Headphone Board
11
Rmoving the Switch / Micon Board
12
Removing the FL Board Assembly
13
Removing the Button Board
14
CD Changer Mechanism
15
Removing the Tray Assembly
15
Removing the Servo Control Board
16
Removing the Switch Board
16
Removing the Motor Board
17
Removing the CD Tramecha Assembly
18
Removing the Pickup
19
Removing the Side (L)/ Tray Switch Board
20
Removing the Side (R) Assembly
21
Removing the Lifter Assembly
22
Removing the Rack Holder Assembly/ Sensor Assembly
23
Removing the Motor
25
Taking out the CD in Play Mode
26
Cassette Mechanism Assembly
27
Removing the Play/Record & Clear Head
27
Removing the Head Amplifier & Mechanism Control Board
28
Removing the Main Motor
28
Removing the Flywheel
29
Removing the Reel Pulse Board and Solenoid
29
Reattaching the Play/ Record & Clear Head
30
Reattaching the Head Mount Assembly
30
Speaker Section
31
Removing the Side Cover
31
Removing the Sub Woofer
31
Removing the Front Panel
32
Removing the Tweeter
32
Removing the Woofer
33
Adjustment
34
Measurement Instruments Required for Adjustment
34
Measurement Conditons
34
Cassette Mechanism Adjustment
35
Mecha Control Board
35
Mechanism Section
36
Electrical Adjustment
37
Electrical Response Confirmation
37
CD Changer Mechanism Adjustment
37
Trouble Shooting
38
Flow of Functional Operation Untill TOC Read (CD)
38
Maintenance of Laser Pickup (CD)
39
Replacement of Laser Pickup (CD)
39
Cleaning the Pick up Lens
39
Semi-Fixed Resistor on the APC PC Board
39
Block Diagram
40
Standard Schematic Diagrams
41
Primary Section
41
Audio Amp Section
42
Source Select / E.volume Section
43
System / FL Control Section
44
CD Servo Control Section
45
Cassette Mechanism Section
46
Printed Circuit Boards
47
Audio I/O Board
47
Switch Board
48
Front Board
48
Micon Board
48
FL Board
48
CD Board (Forward Side)
49
CD Board (Reverse Side)
49
Cassette Board (Forward Side)
49
Cassette Board (Reverse Side)
49
Exploded View of General Assembly and Parts List
50
Speaker Assembly and Parts List
53
CD Changer Mechanism Assembly and Parts List
54
CD Mechanism Assembly and Parts List
56
Grease & Bond
56
Cassette Mechanism Assembly and Parts List
57
Cassette Mechanism
58
Electrical Parts List
59
Power Board
59
Front Board
62
Packing Materials and Accessories Parts List
68
Packing and Accessories
69
