JVC HX-Z10 Service Manual

(No.MB014)1-35

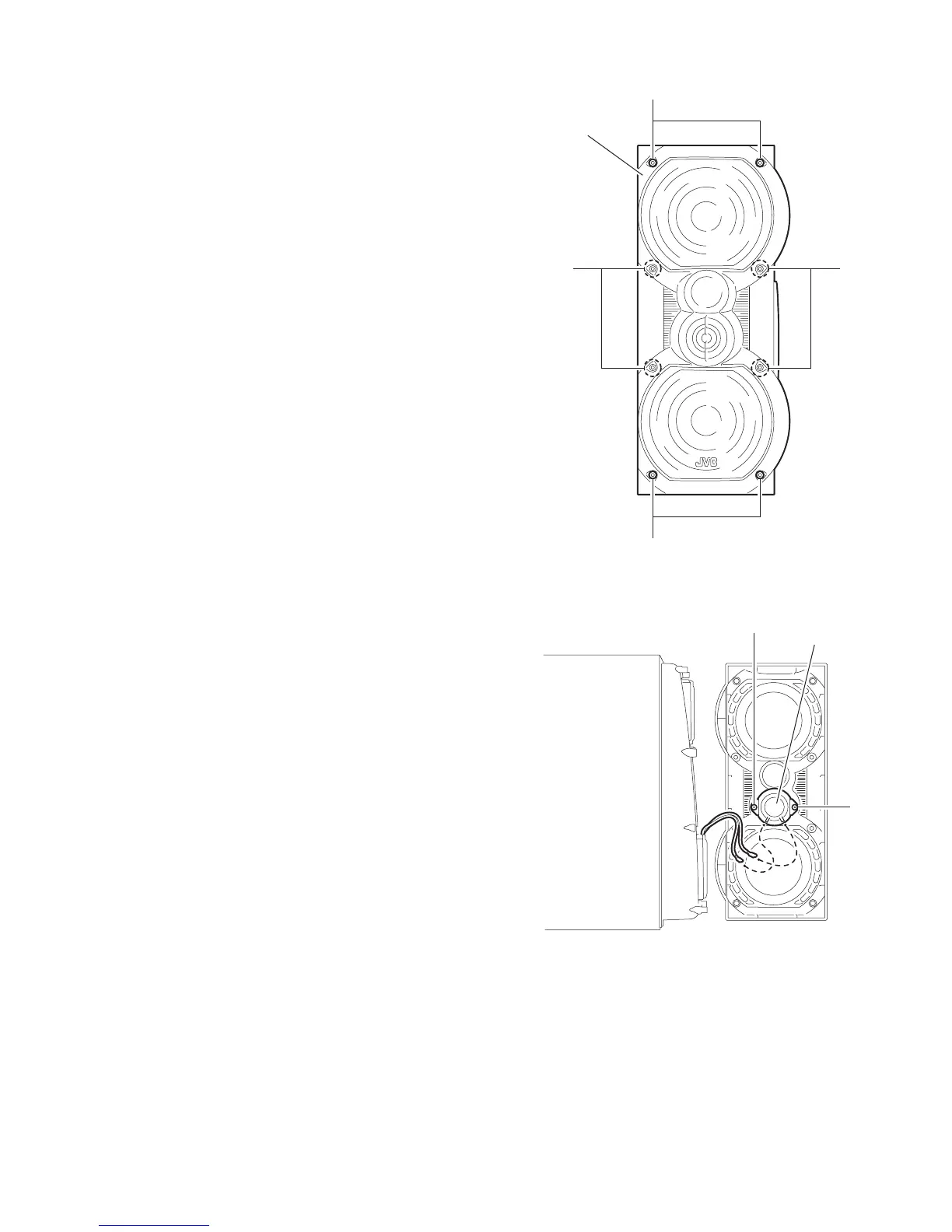

3.4.3 Removing the Front panel
(See Fig.3, 4)
• Prior to performing the following procedure, remove the side
cover.
CAUTION:
When removing the front panel from the body, do not break or
damage them that are glued at the joint a (See Fig.3).
(1) Remove the four screws C attaching the front panel.
(2) Release the four joints a.
(3) Disconnect the yellow and black wires from the two termi-
nals on the tweeder on the back of the front panel.
3.4.4 Removing the tweeter
(See Fig.4)
• Prior to performing the following procedure, remove the side
cover and the front panel.
(1) Remove the two screws D attaching the tweeter on the
back of the front panel.
Fig.3
Fig.4
Joint a
Front cover
Joint a
C
C
C
C
Tweeter
