JVC HX-Z10 Service Manual

3-5

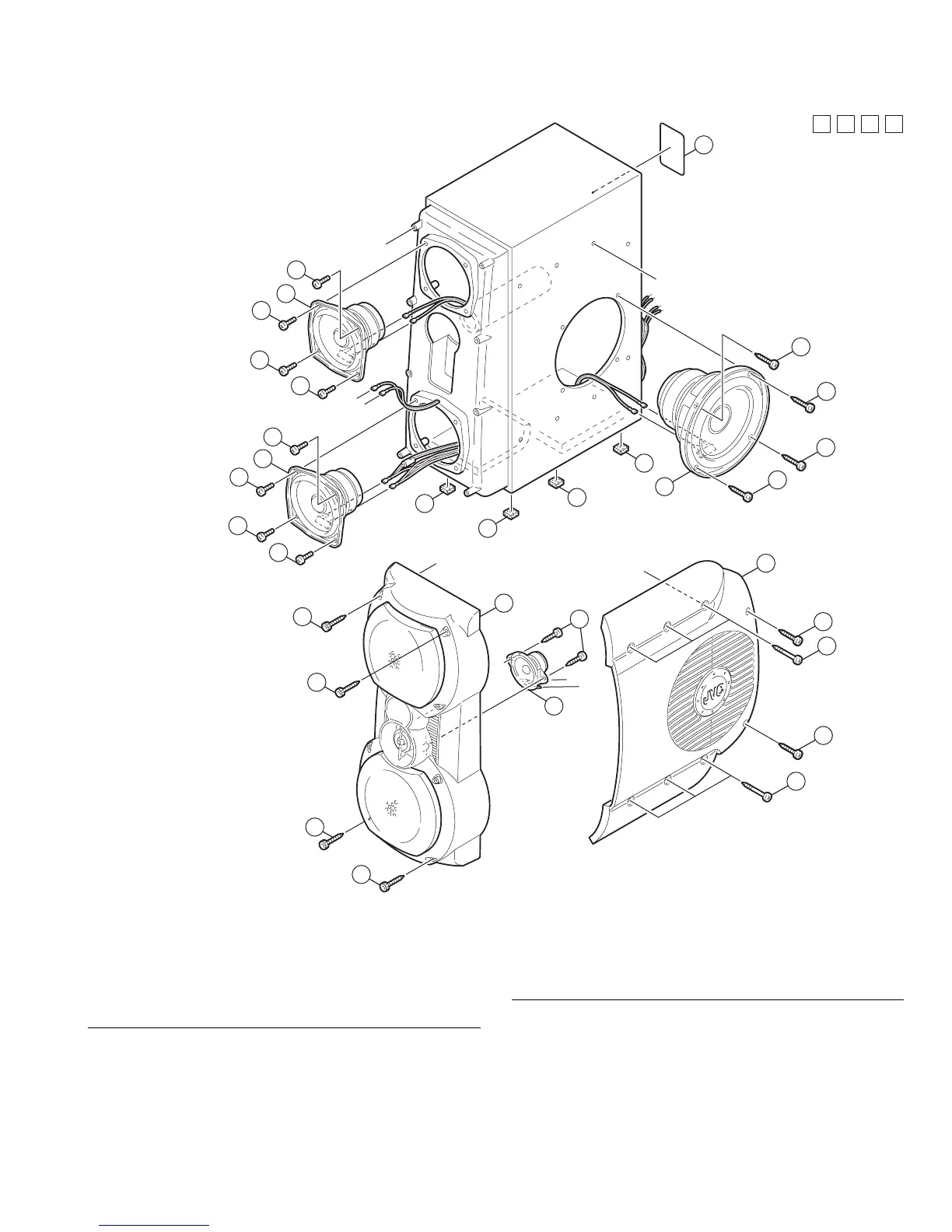

Speaker assembly and parts list
Speaker
Block No. [M][2][M][M]
Block No.
M
M
M
2
(SP-HXZ10EM)
B
a
b
A
B
A
a
b
10
10
10
10
10
10
10
10
2
3
9
9
9
9
5
10
1
8
8
6
7
7
8
8
8
8
4
12
12
12
12
11
 Symbol No. Part No. Part Name Description Local
1 249929723306 TWEETER ASSY (x2)
2 249929746002 WOOFER ASSY (x2)
3 249929746102 WOOFER ASSY (x2)
4 249929767006 SUB WOOFER ASSY (x2)
5 829929751310 F/PANEL ASSY(L)
5 829929751320 F/PANEL ASSY(R)
6 439929418071 SIDE PANEL
6 439929418081 SIDE PANEL
7 439929453551 SCREW M4X37 (x12)
8 439929453561 SCREW M4X20 (x12)
9 439929453571 SCREW M4X16 (x8)
10 439929453581 SCREW M4X14 (x20)
11 439929461011 BACK LABEL(L)
11 439929461001 BACK LABEL(R)
12 439929483001 LEG CUSHION (x8)
 Symbol No. Part No. Part Name Description Local
