3.3.6 Reattaching the Play/ Record & Clear head
(See Fig.11~13)
(1) Reattaching the head mount assembly.
a) Change front of the direction cover of the head
mount assembly to the left (Turn the head forward).
b) Fit the bosses O', P', Q', U' and V' on the head mount
assembly to the holes P and V, the slots O, U and Q
of the mechanism sub assembly (See Fig.11 to 13).
CAUTION:
To remove the head mount assembly, turn the direction
cover to the left to disengage the gear. If the gear can not
be disengaged easily, push up the boss Q' slightly and
raise the rear side of the head mounts slightly to return
the direction lever to the reversing side.
(2) Tighten the azimuth screw for reversing.
(3) Reattach the spring from the back of the Play/ Record &
Clear head.
(4) Connect the flexible wire to connector CN31
on the head
amplifier & mechanism control board.

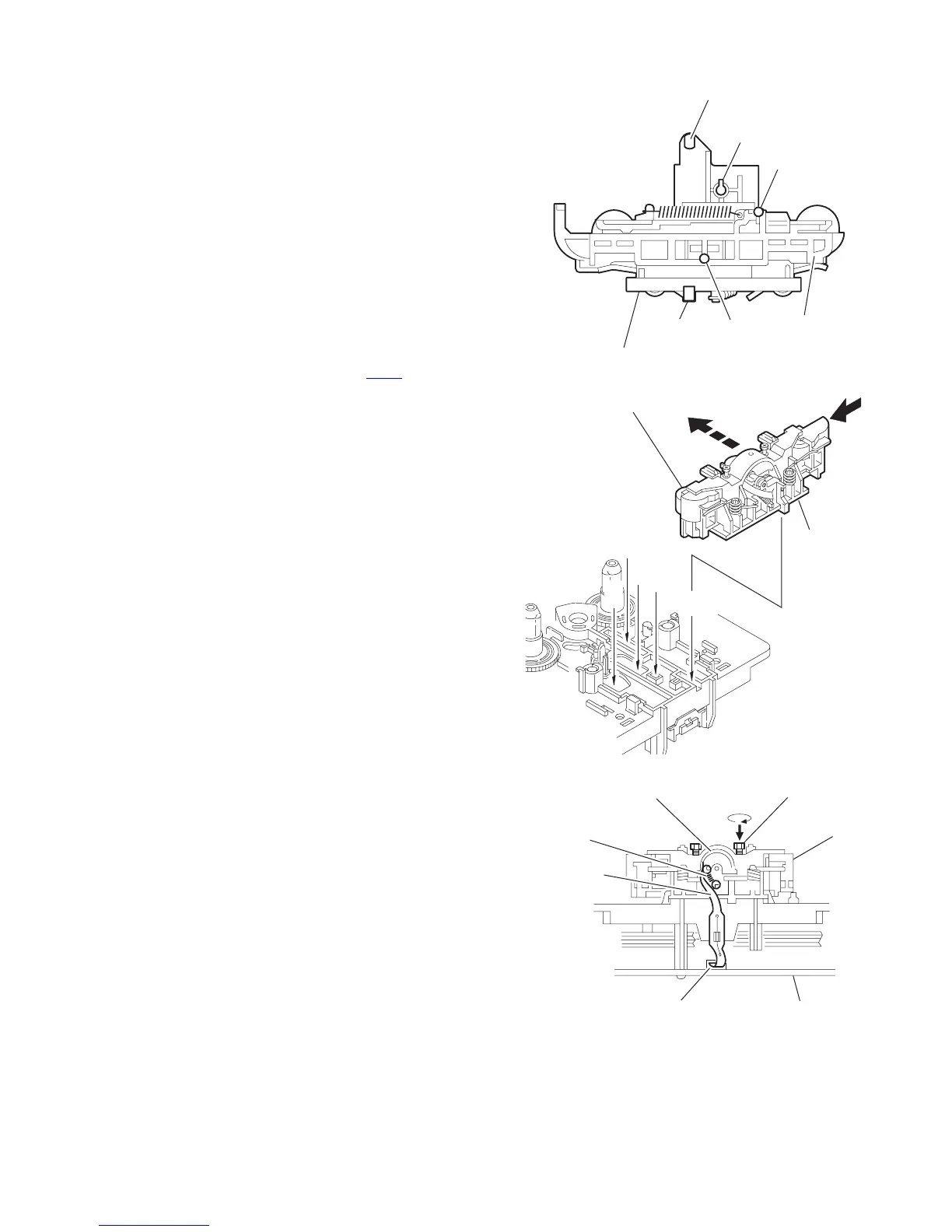

Fig.11
Fig.12
Fig.13
P'
V'
O'
P'
V'
U' Q'
Direction cove
Head mount assembly
Direction cove
Head mount assembly
O
U
V
P
Q
Azimuth screw for reversing
Head mount
Spring
Flexible wire
Head amplifier &
mechanism control board
CN31
Head
