JVC SP-NXBD3W - Audio and Power Connections; Connecting Audio Devices; Power Cable Connection

10
 Main unit
 Subwoofer

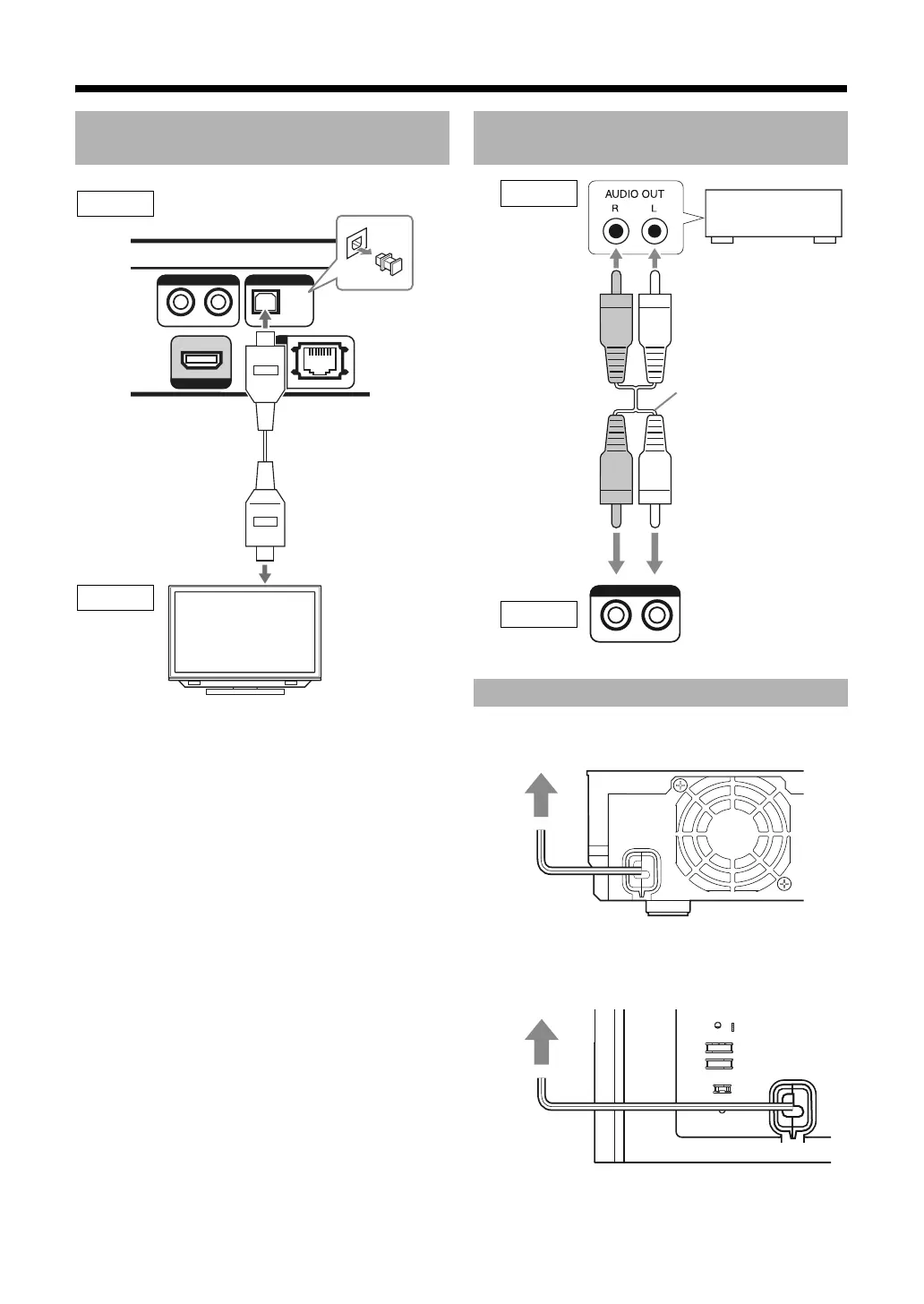

Connecting other digital
audio devices
LAN
AUDIO IN DIGITAL IN
HDMI
MONITOR OUT
RIGHT LEFT
OPTICAL
Main unit
(rear view)
To an optical digital
output terminal
Optical digital cable
(not supplied)
Input
Output
Television
Connecting other analog
audio devices
Connecting the power cable
AUDIO IN
RIGHT LEFT
Output
Input
Audio device
Audio cable
(not supplied)
Main unit
(rear view)
Main unit (rear view)AC outlet
Subwoofer (rear view)
AC outlet
