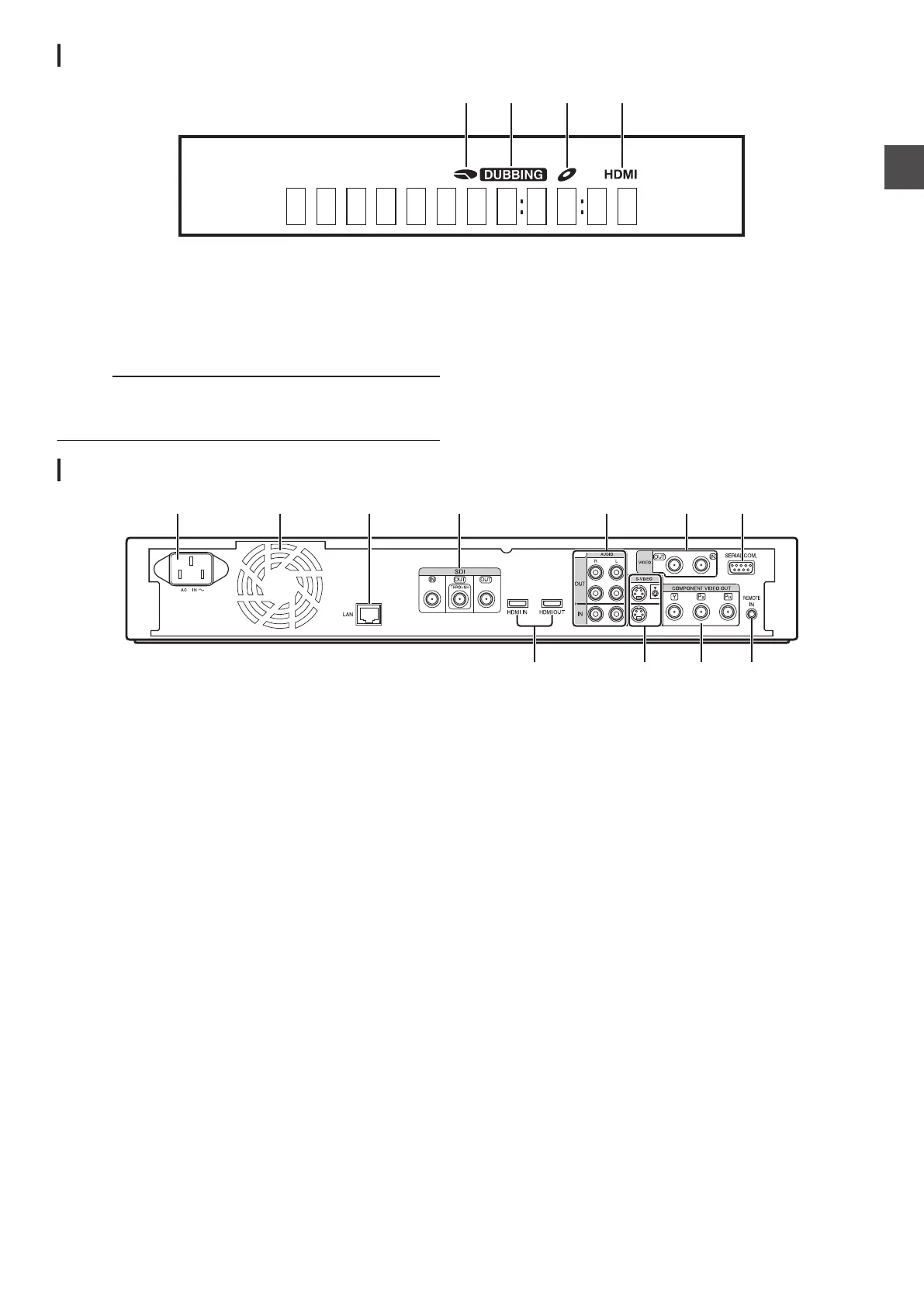

Display window
.
A
HDD/DISC remaining level display
B
Dubbing display
C
Disc status display
D
HDMI output display
Memo :
0
The brightness of the display window can be adjusted.
For details, refer to “PANEL DISPLAY BRIGHTNESS”
(A P
85).
English messages appear for a number of operations.
(Examples)
HELLO
: When the power plug is inserted
READING : When reading the disc
ONSCREEN : Upon moving to the playback navigation
screen
Rear panel
.
A
AC inlet
For connecting the power supply.
B
Cooling fan
C
[LAN] terminal
For connecting a LAN cable.
D
[SDI IN/OUT THROUGH/OUT] terminal
For connecting using a BNC cable.
E
[AUDIO OUT/IN] terminals
For connecting using an audio cable.
F
[VIDEO OUT/IN] terminals
For connecting using a video cable.
G
[SERIAL COM.(RS-232C)] terminal
For connecting to a PC using a serial cable.
H
[HDMI IN / HDMI OUT] terminal
For connecting using an HDMI cable.
I
[S-VIDEO OUT/IN] terminals
For connecting using an S-video cable.
J
[COMPONENT VIDEO OUT] terminals
For connecting using a component video cable.
K
[REMOTE IN] terminal
For connecting a wired remote control.
Name and Function of Parts
17
Getting Started
