Kamstrup MULTICAL 602 User Manual

9Kamstrup A/S • 5512952_C6_GB_07.2015
MULTICAL® 602 & ULTRAFLOW®

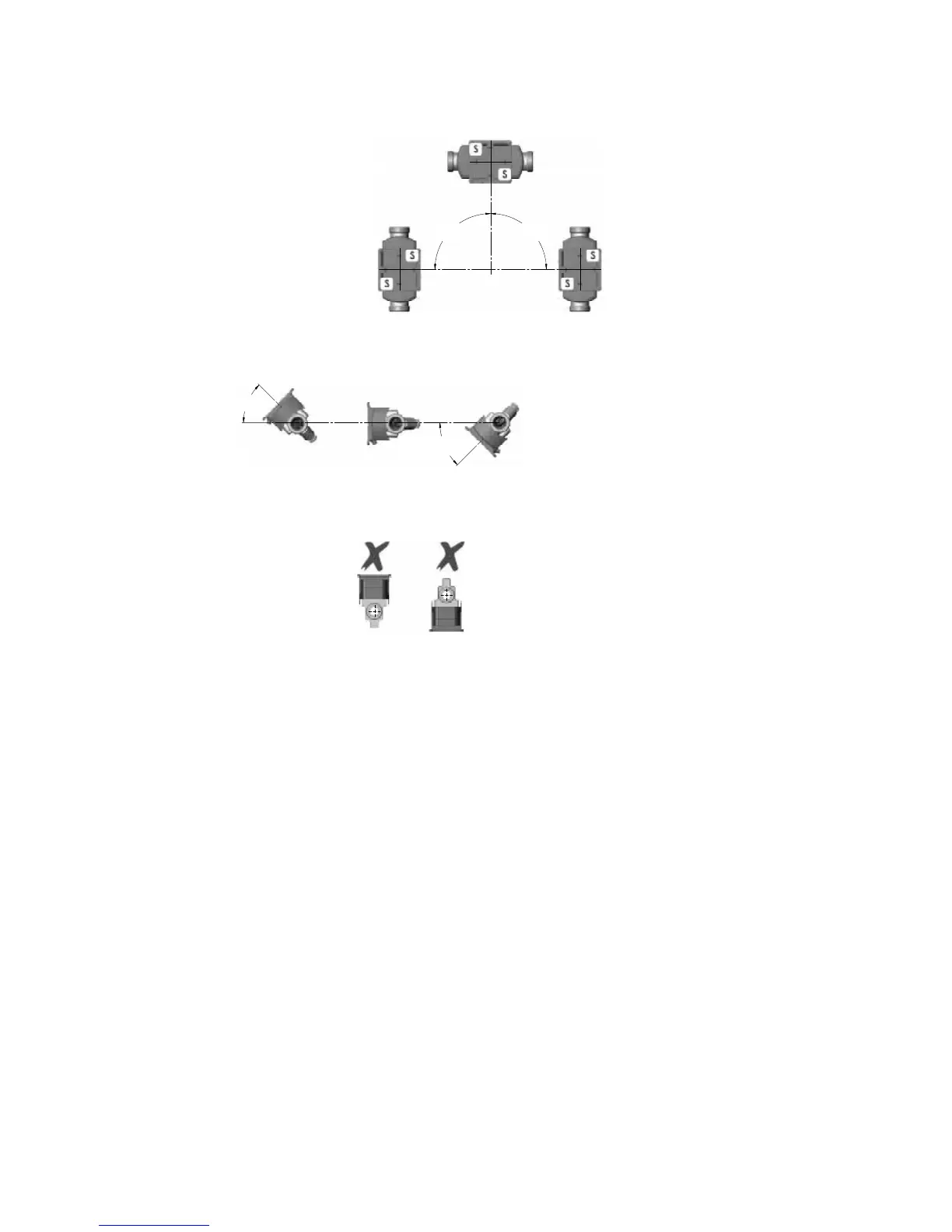

3.1 Mounting ULTRAFLOW® ≤ DN125
90°
90°
ULTRAFLOW® cn be mounted verticlly, horizontlly or t n ngle.
Mx. 45°
Mx. 45°
The electronics/plstic box
must be plced on the side
(t horizontl mounting).
ULTRAFLOW® my be turned up to ±45° round the pipe xis.
ULTRAFLOW® must not be mounted with the plstic
cse pointing upwrds or downwrds.
3.2 Mounting of ULTRAFLOW® 54 ≥ DN150
See instlltion instructions No. 5512-887.

Kamstrup MULTICAL 602 Specifications

General

Flow Sensor	Ultrasonic
Display	LCD
Battery Life	Up to 16 years
Communication	M-Bus, Wireless M-Bus
Approval	MID class 2, EN 1434
Accuracy	Class 2
Pressure Rating	PN16
Application	Heating and cooling systems
Temperature Range	0°C to 180°C
