6.1.1c Cooler Status
Table 11 shows and describes the menu selections on the Cooler Status menu.
Note: The information on the Cooler Status menu is not editable. Kaye personnel use this information to help
troubleshoot the system if a malfunction occurs.

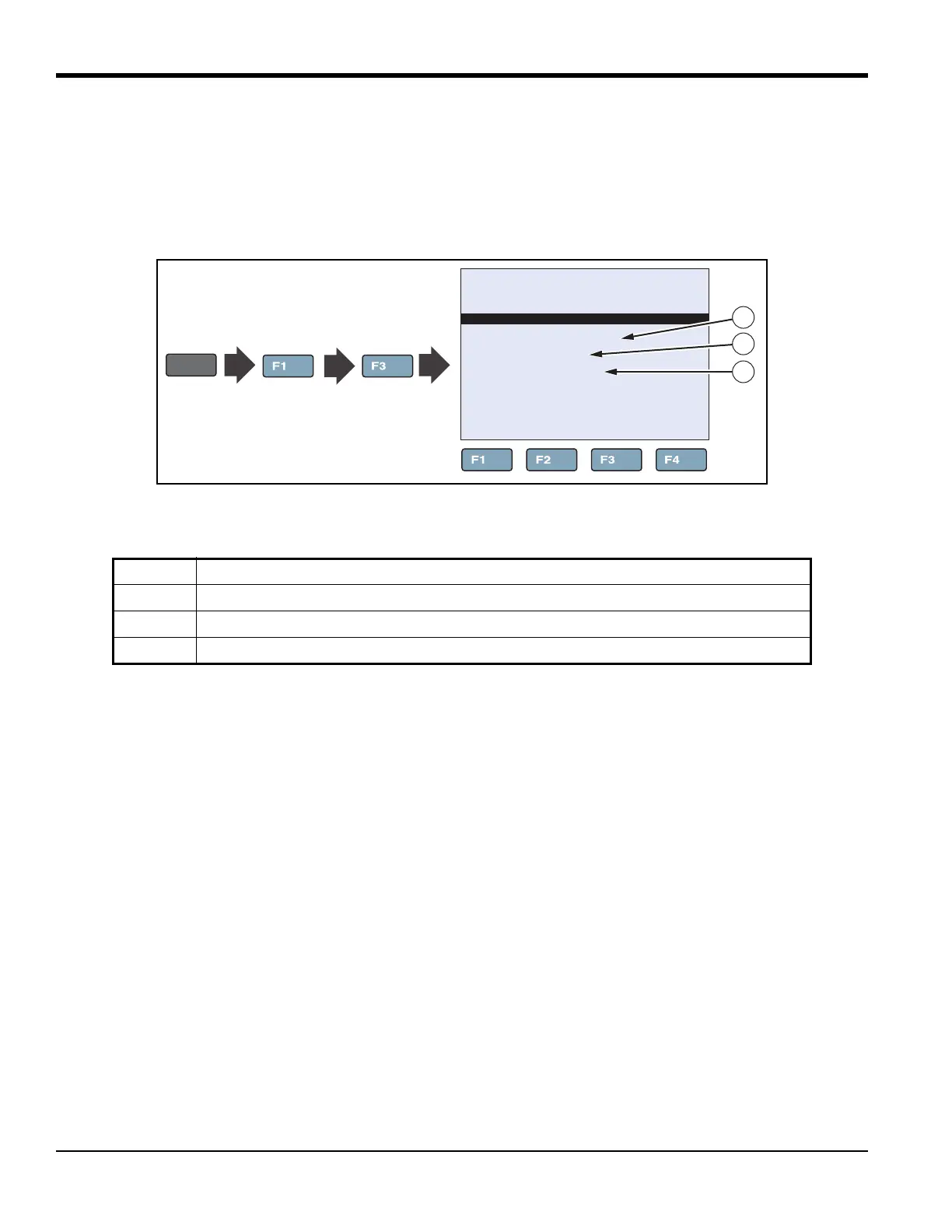

Figure 13: Cooler Status Menu Sequence
Table 11: Cooler Status Menu
Item Function
1 TEMPERATURE shows the temperature of the condenser.
2 SELF TEST shows the Stirling Cooler self-test result.
3 HEAT BALANCE shows the power difference between the top and bottom heaters.
66.03°C
COOLER STATUS
TEMPERATURE: 27.99 °C
SELF TEST: OK
HEAT BALANCE: 0.000
TEMP
SETUP STATUS
MENU
1
2
3
