Chapter 6. Calibrator Operation
34 Kaye LTR -90 Operating Manual
6.1.7b Ramp/Soak
Table 13 shows and describes the menu selections on the Ramp/Soak Setup menu.

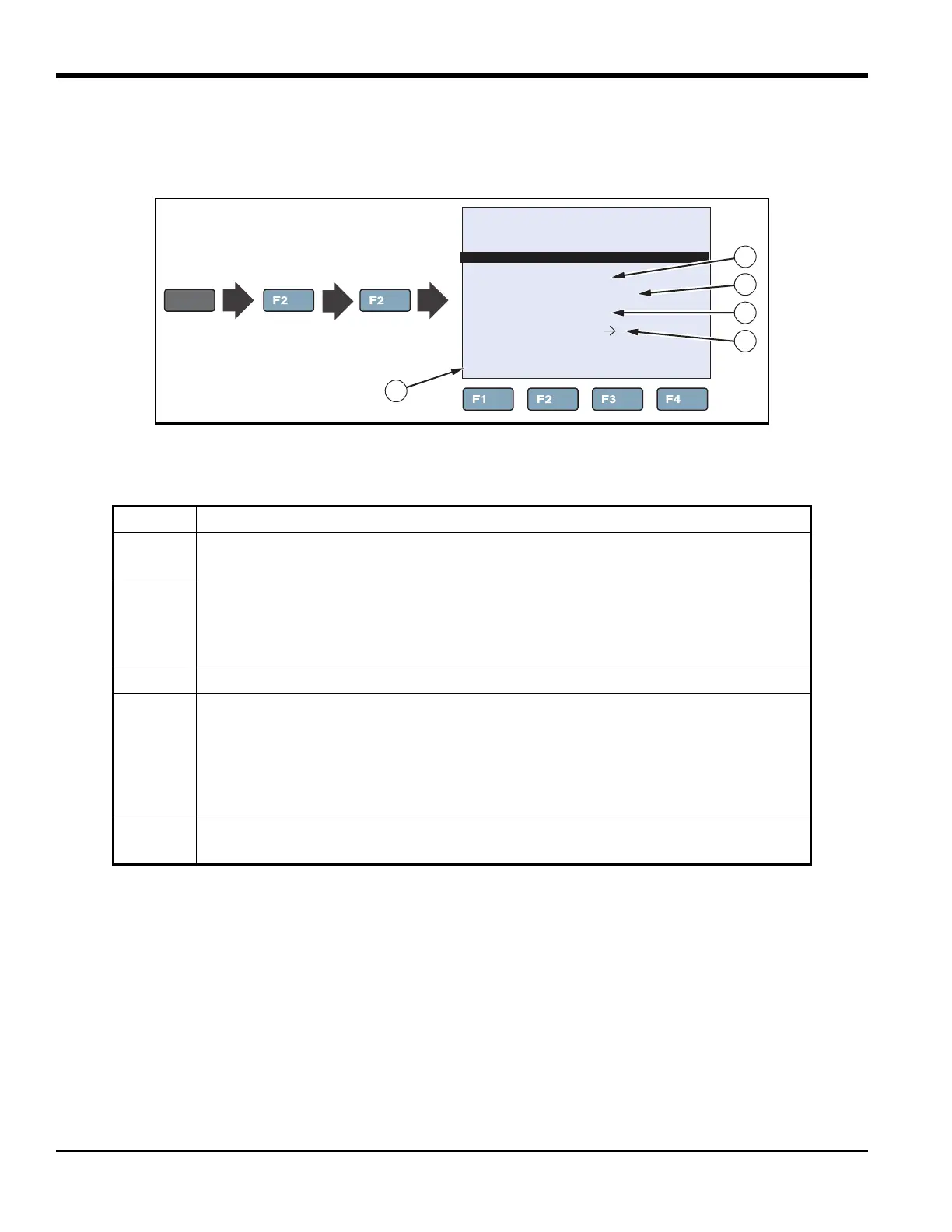

Figure 19: Ramp/Soak Key Sequence
Table 13: Ramp/Soak Setup Menu
Item Function
1 NO. SETPOINTS is the number of SETPOINTS for a Program. Eight SETPOINTs can be
set for the program. Set the maximum number of SETPOINTS necessary.
2
SOAK TIME is the duration (in minutes) that each of the programmed SETPOINTS
temperature is maintained. The time starts when the temperature settles to within the
specified stability. The Stability Limit is set in the Temperature Setup menu (see
page 25).
3
NO. CYCLES is the number of times that the Program is repeated.
4
DIRECTION controls whether the SETPOINTS are sequenced in one direction “”
(ascending from 1 to 8) or in both directions (ascending from 1 to 8 and then
descending from 8 to 1) before the sequence is repeated. If the both directions option is
selected, the Program sequences from the first SETPOINT to the last and then reverses
direction sequencing from the last to the first.
5
SETPOINTS MENU opens a menu to set each of the SETPOINTS for the Program. Only the
number of SETPOINTS defined by NO. SETPOINTS will be displayed.
66.03°C
RAMP/SOAK SETUP
NO. SETPOINTS: 8
SOAK TIME: 15 MIN
NO. CYCLES: 1
DIRECTION:
SET
POINTS
PROG
MENU
RAMP/
SOAK
MENU
1
2
3
4
