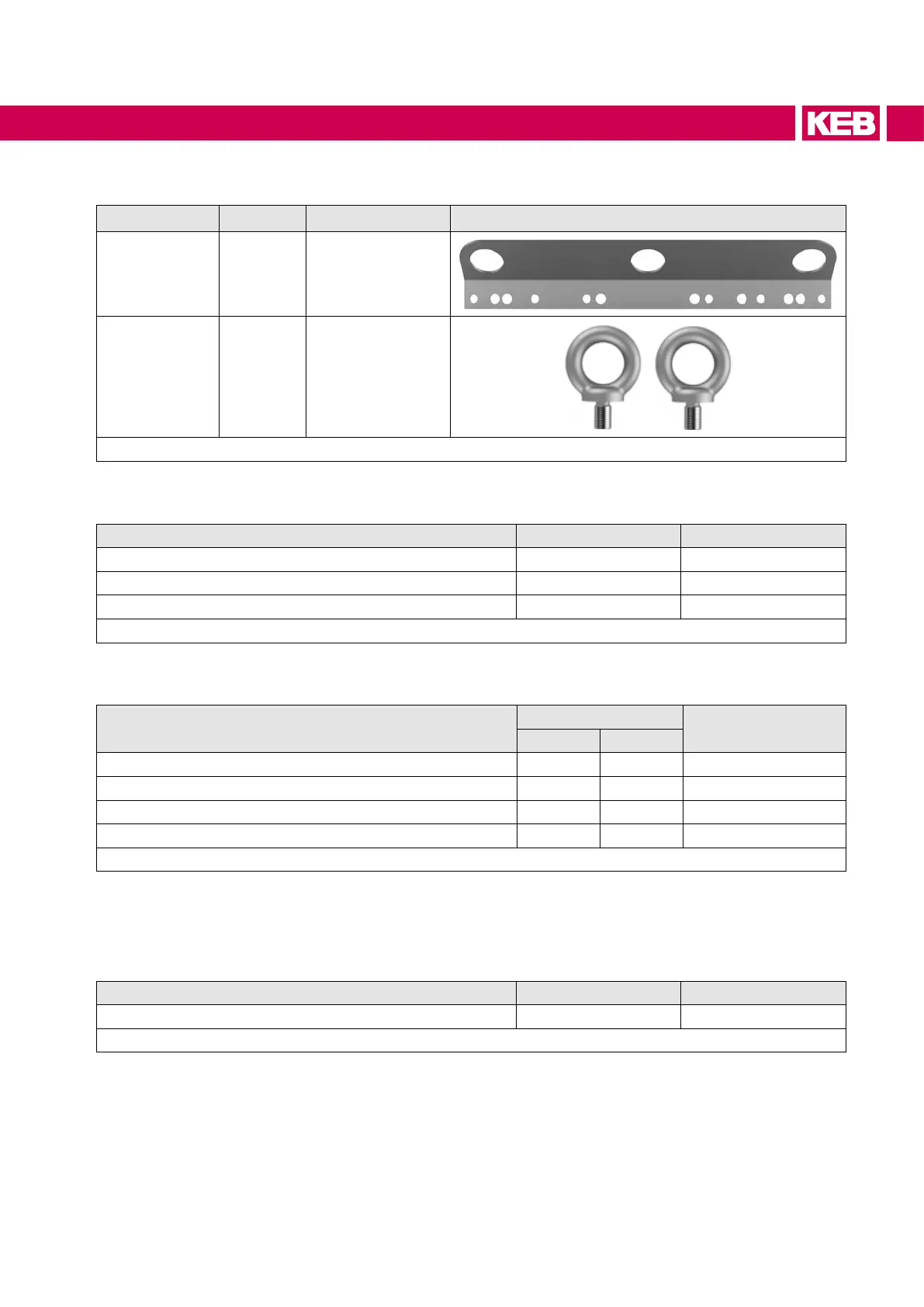

11.2 Assembly aids
Assembly aid Number Part number
Assembly aid 1 00F5ZTB-0001
Eye bolts
Mounting kit
1 00F5ZTB-0002
Table 34: Assembly aids
11.3 Connections to the coolant
Connection variant required number Part number
Accessory kit hose connection G1/2 with mounting nuts 1 0000650-G14K
Function nut for a pipe diameter of 12mm 2 0000651-FM12
Heat sink seal bottom/upper side IP54 1 P0F5T45-0019
Table 35: Connections to the coolant
11.4 Connecting cable master / slave system
Connecting cable
required number
Part number
MS
1)
MSS
2)
SUB-D plug 9-pole 0.75 (contained in scope of supply) 1 2 P0F5T09-0046
SUB-D plug 25-pole 0.75 (contained in scope of supply) 1 2 P0F5T09-0047
SUB-D plug 9-pole 1.0 (optional) 1 2 P0F5T09-0031
SUB-D plug 25-pole 1.0 (optional) 1 2 P0F5T09-0048
Table 36: Connecting cable master / slave system
1) Master / slave system
2) Master / slave / slave system
11.5 Heat sink fan
Spare part kit required number Part number
Heat sink fan for external supply (24 V / 2.5 A) 1 P0F5989-1206
Table 37: Heat sink fan
101
ACCESSORIES
