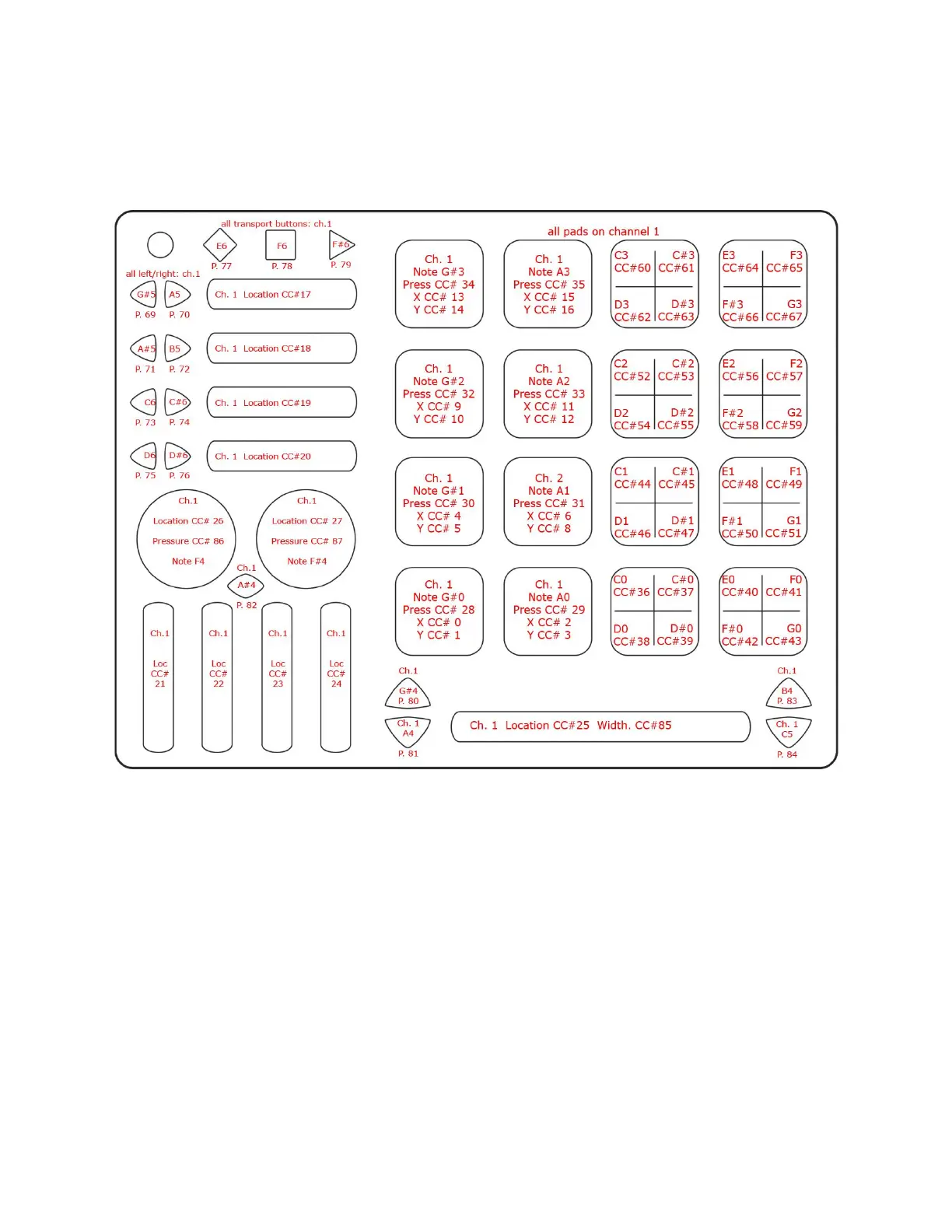

This image shows what MIDI data will output for each sensor in the “Battery” preset. In
this preset the Pads use Drum Mode in the left 2 columns and grid mode in the right 2
columns. Banks are not enabled. Rotaries are set to use Location instead of Direction.
Pass Thru Widths for the rotaries are set to 127. X/Y sources on the Pads are set to latch.
Velocity response is variable for notes on Pads and Rotaries. Velocity is fixed at 127 for
notes on the Buttons. All Pressure sources send out continuous CC values.
For more information about using the Battery Template read the Battery Template
Quickstart document included in the QuNeo Software Template Installer.
33
