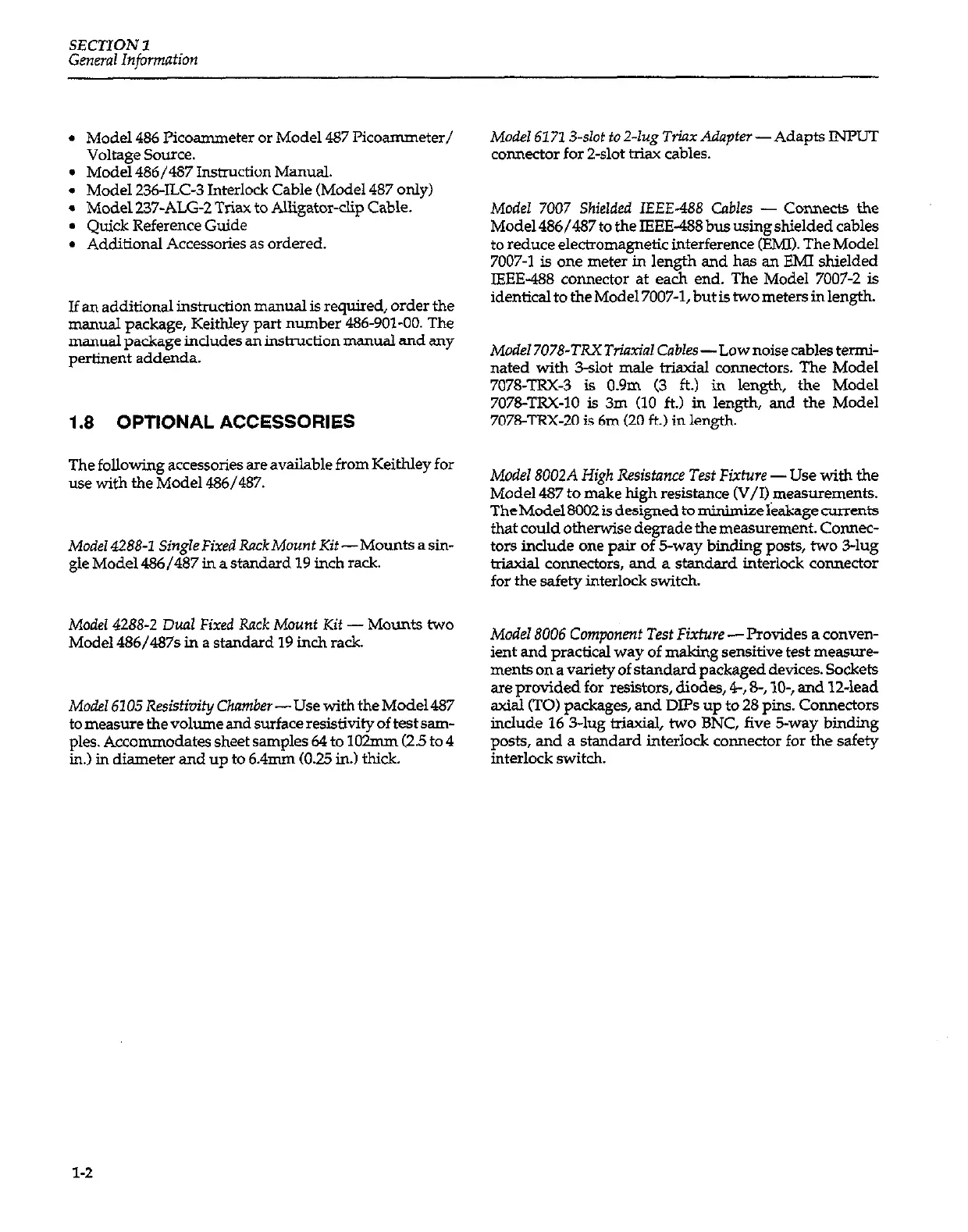

SECTION 1
General Information
Model 486 Picoammeter or Model 487 Picoammeter/
Voltage Source.
Model 486/487 Instruction Manual.
Model 2.36~IX-3 Interlock Cable (Model 487 only)
Model 237-ALG-2 Triax to Alligator-clip Cable.
Quick Reference Guide
Additional Accessories as ordered.
If an additional instnxtion
manual
is required, order the
manual package, Keithley part number 486-901-00. The
manual package includes an instruction manual and any
pertinent addenda.
1.6 OPTIONAL ACCESSORIES
The following accessories are available
from
Keithley for
use with the Model 486/487.
Model 4.288-l SingleFixed RackMount Kif -Mounts a sin-
gle Model 486/487 in a standard 19 inch rack.
Model 4288-2 DwJ Fixed Rack Mount Kit - Mounts two
Model 486/487s in a standard 19 inch rack.
Model 61 OS Resistivity Chamber -Use with the Model487
to measure the volume and surface resistivity of test sam-
ples. Accommodates sheet samples 64 to 102mm (2.5 to 4
in.) in diameter and up to 6.4mm (0.25 in.) thick.
Model 61713~slot to.Z-lug Triax Adapter- Adapts INPUT
connector for 2slot triax cables.
Model 7007 Shielded IEEE-488 Cables - Connects the
Mode1486/487 to the IEEE-488 bus using shielded cables
to
reduce electromagnetic interference @Ml). The Model
7007-l is one meter in length and has an EMI shielded
IEEE-488 connector at each end. The Model 7007-2 is
identical to the Model 7007-1, but is two meters in length.
Model 7078-TRXTriaxiaJ Cables-Low noise cables termi-
nated with 3&t male triaxial cormectors. The Model
7078~TRX-3 is
O.Qm
(3 ft.) in length, the Model
7078TRX-10 is 3m (10 ft.) in length, and the Model
7078-TRX-20 is 61x1(20 ft.) in length.
Model 8002A High Resistance Test Fixture -Use with the
Model 487 to make high resistance W/II measurements.
The Model 8002 is designed to minimize leakage currents
that could otherwise degrade the measurement. Connec-
tors in&de one pair of 5-way binding posts, two 3-lug
biaxial connectors, and a standard interlock connector
for the safety interlock switch.
Model 8006 Component Test Fixture-Provides a conven-
ient and practical way of making sensitive test measure-
ments
on a variety of standard packaged devices. Sockets
are provided for resistors, diodes, 4-, 8; IO-, and 12-lead
axial (TO) packages, and DIPS up to 28 pins. Connectors
include 16 3-lug triaxial, two BNC, five 5-way binding
posts, and a standard interlock connector for the safety
interlock switch.
1-z
