Model DMM6500 -Digit Multimeter with Scanning Calibration and Adjustment Manual Section 2: Performance verification
DMM6500-905-01 Rev. A/July 2018 2-39
Digitize current 10 A range verification
Ensure cabling is designed to conduct 10 A without significant voltage drop. In general,
cables for the 10 A range steps should be made of heavy gauge wire and should be as short
as practical.
To verify the 10 A range:
1. Connect DMM6500, calibrator, and amplifier as shown in the following figure.

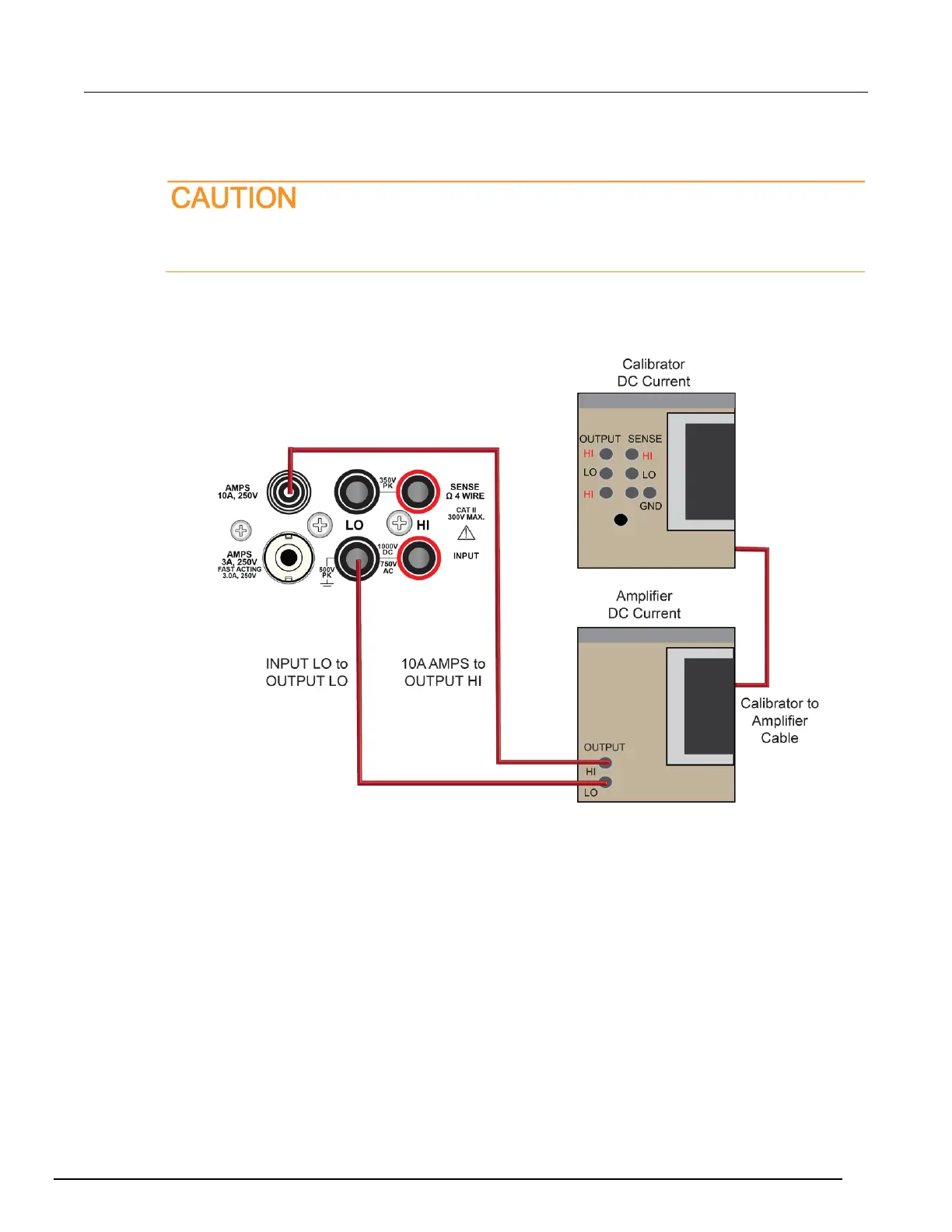

Figure 20: Connections for the 10 A range
2. Set the TERMINALS switch to REAR.
3. Press the FUNCTION key, select the Digitize Functions tab, and select Digitize Current.
4. Press the HOME key.
5. Set the range to 10A.
6. Press the MENU key.
7. Under Measure, select Settings.
8. Set the sample rate to 1000.
9. Set the aperture to Auto or 1 ms.
10. Set the count to 100.
