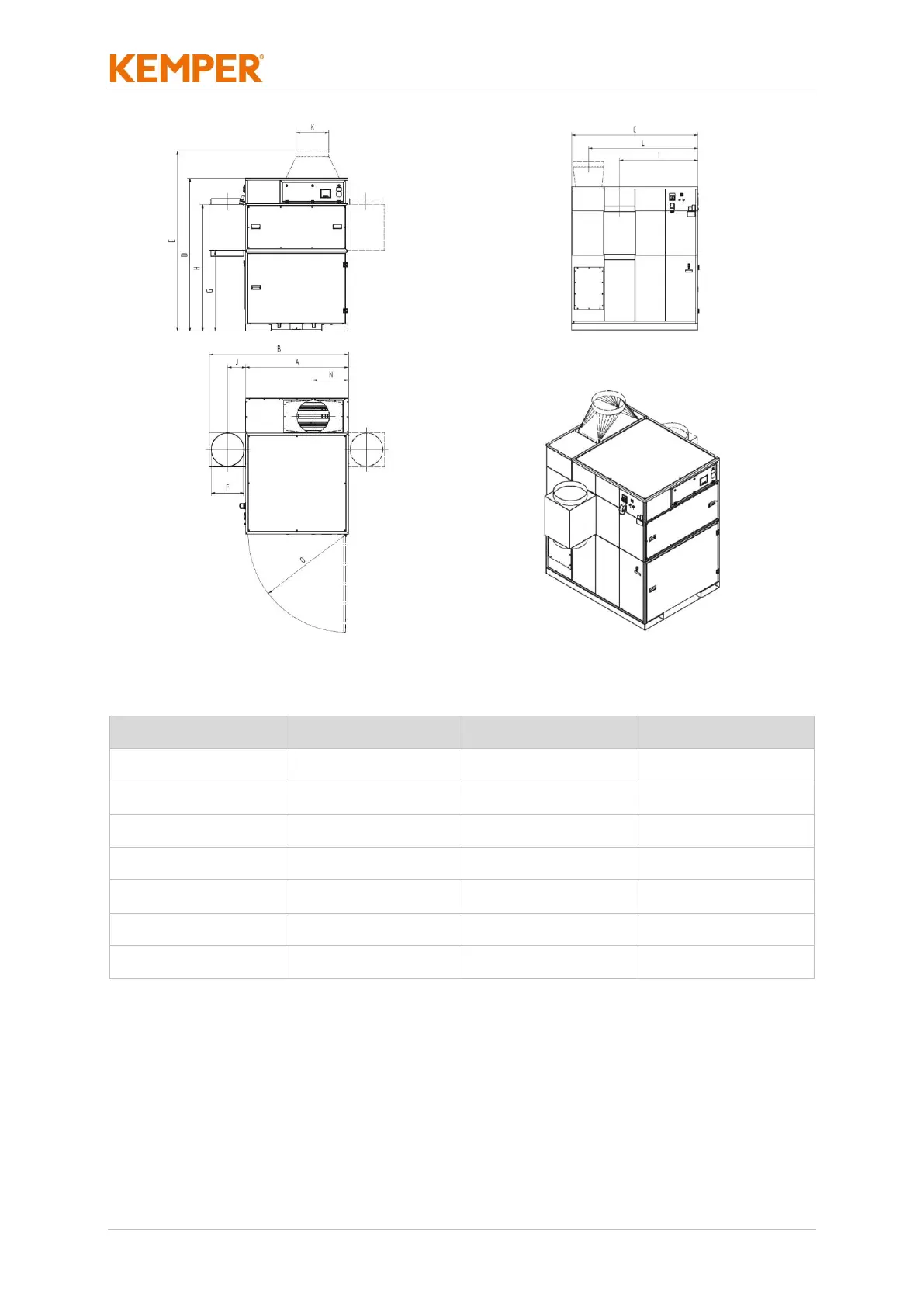

Abb. 55: 3450 + 3465
Symbol
Abmessung
Symbol
Abmessung
A
1.413 mm
H
1.776 mm
B
1.913 mm
I
1.157 mm
C
1.864 mm
J
235 mm
D
2.110 mm
K
450 mm
E
2.510 mm
L
1.616 mm
F
450 mm
N
484 mm
G
1.146 mm
O
1.347 mm
Tab. 43: Maßtabelle 3450 + 3465
