Kemper WeldFil Compact - Page 142

EN
1502756-02 - 142 -
Fig. 72: Example: Cable laying for the extraction capacity regulation
Item
Description
Item
Description
1
Filter component
5
Mains supply connection
cable
2
Fan component
6
Control cable (3x)
3
Control cabinet, fan unit
7
Motor lead
4
Control cabinet, extraction
capacity regulation
Tab. 58: Positions on the product
NOTE
Extraction capacity regulation connection
The connection cables are already prepared and are either coiled up in
the fan unit or hang out of the side of the fan unit connection panel.

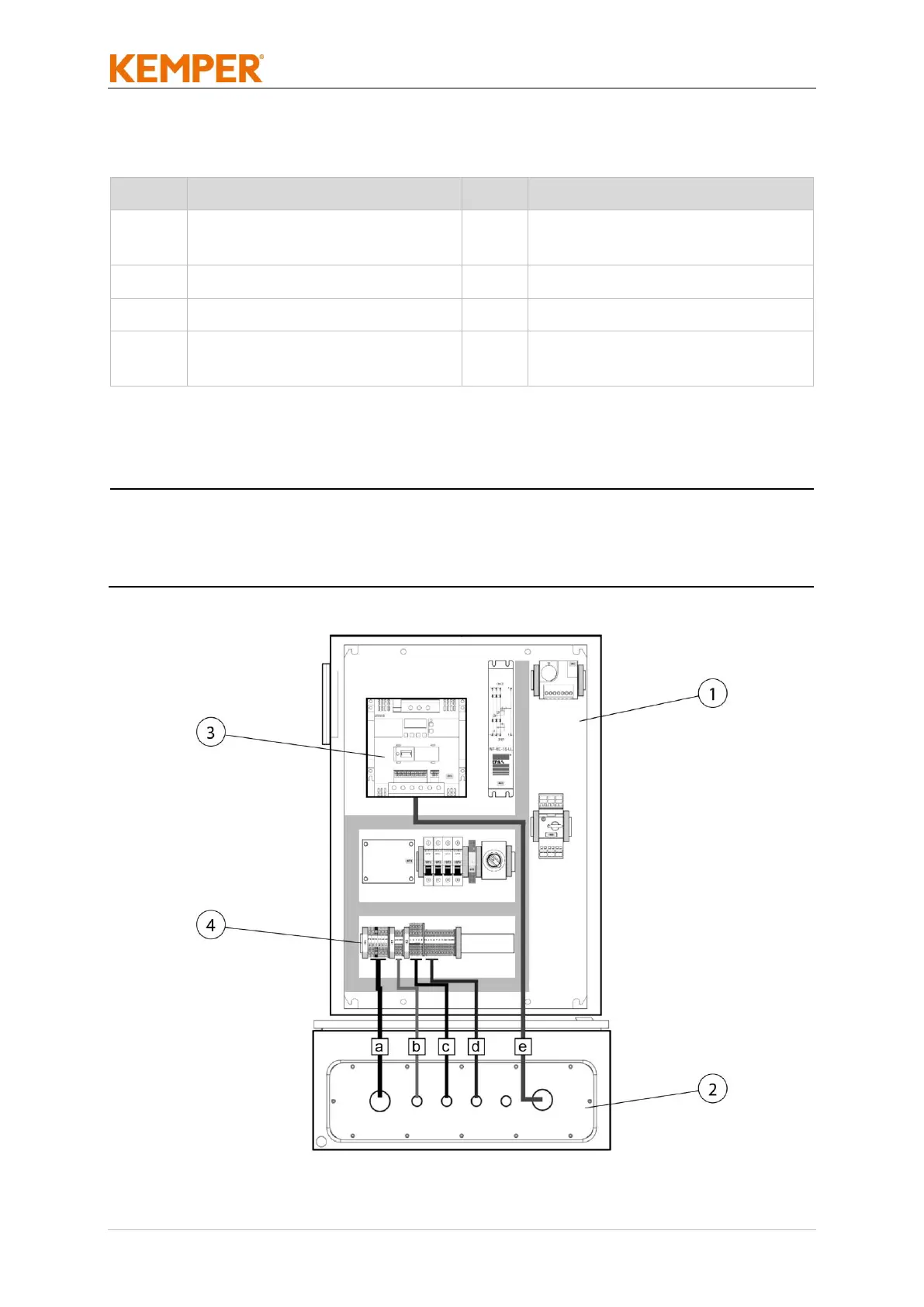

Fig. 73: Control cabinet, extraction capacity regulation
