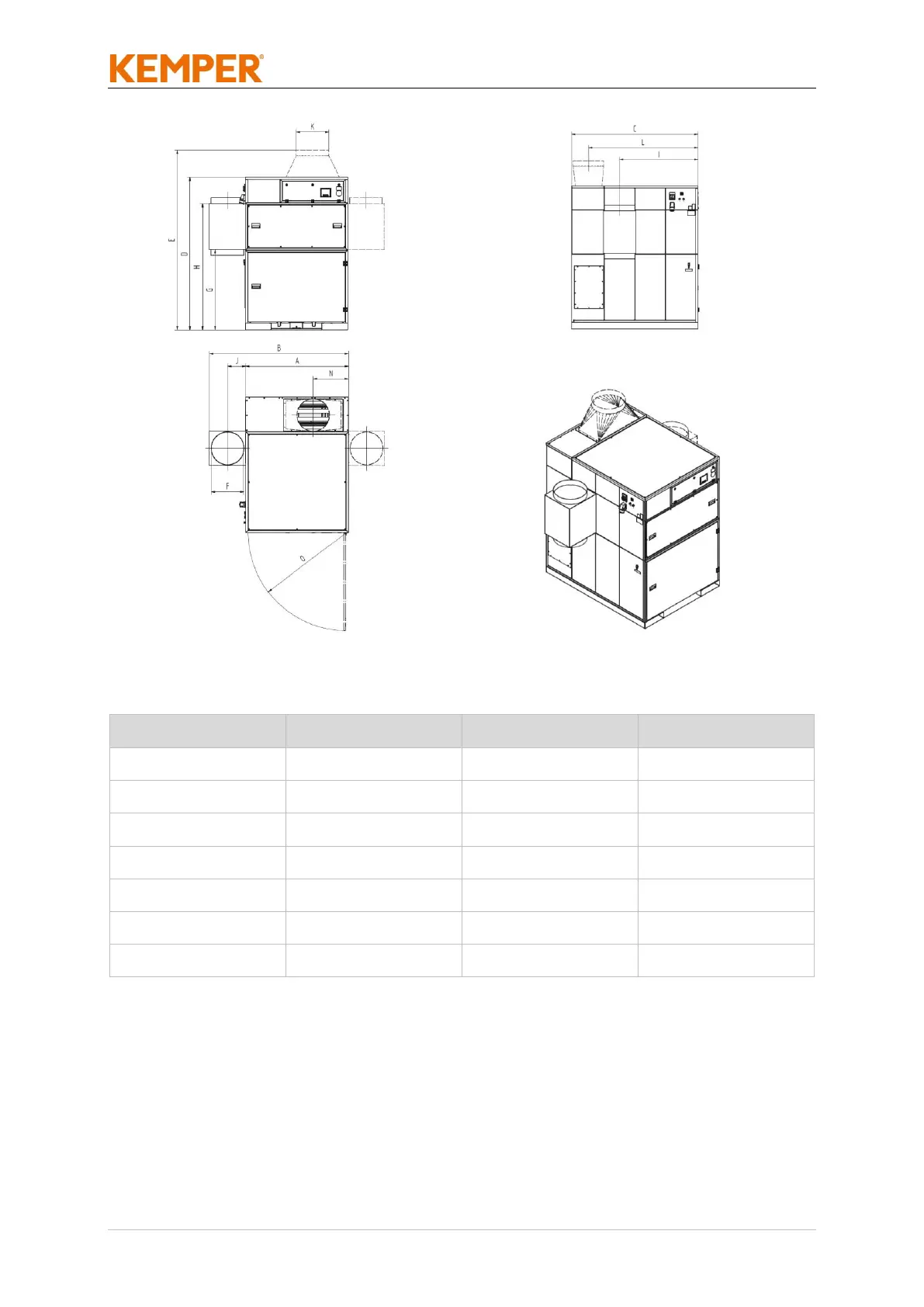

Fig. 112: 3450 + 3465
Symbol
Dimension
Symbol
Dimension
A
1,413 mm
H
1,776 mm
B
1,913 mm
I
1,157 mm
C
1,864 mm
J
235 mm
D
2,110 mm
K
450 mm
E
2,510 mm
L
1,616 mm
F
450 mm
N
484 mm
G
1,146 mm
O
1,347 mm
Tab. 89: Dimension tables 3450 + 3465
