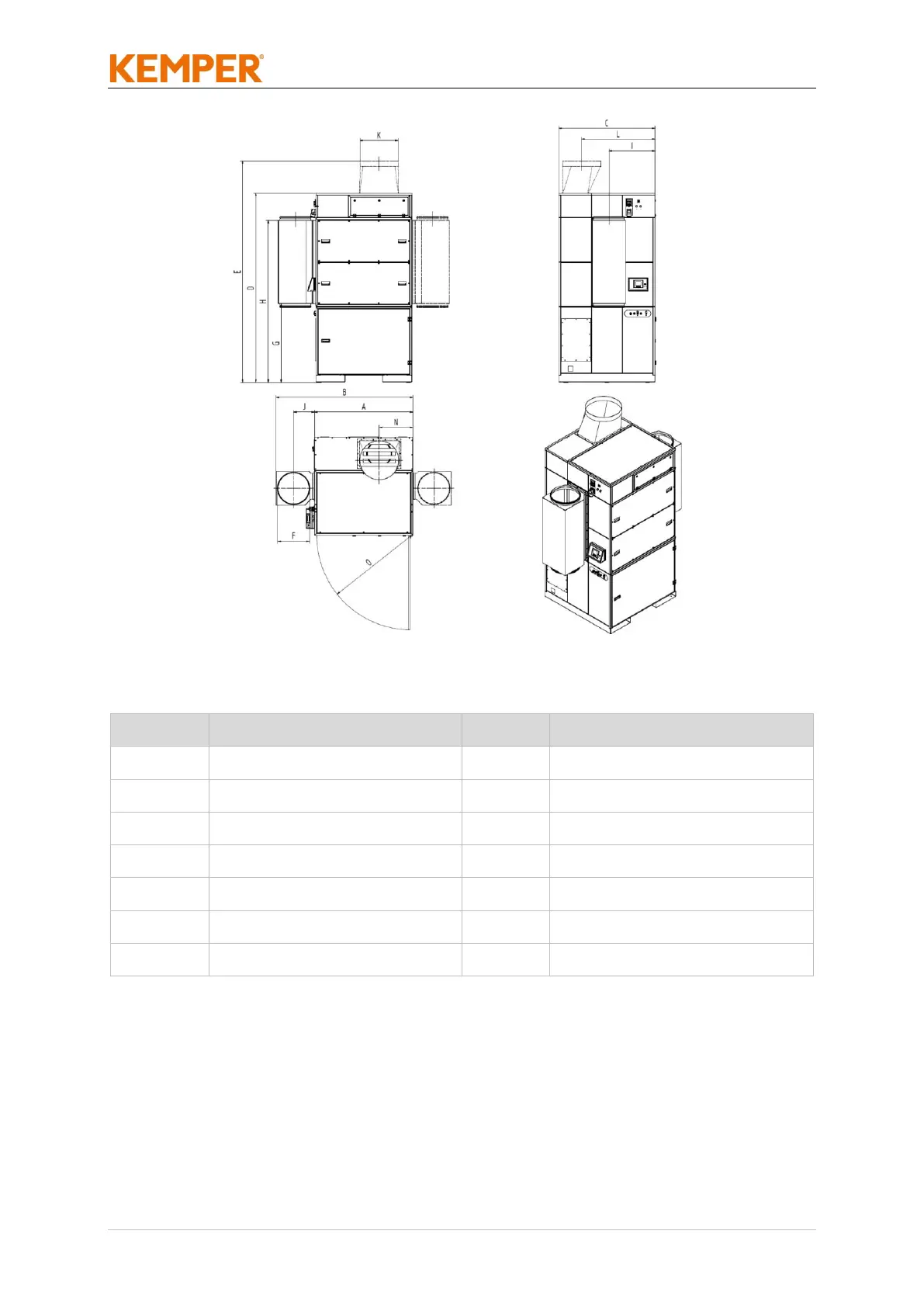

Fig. 113: Dimension sheet 3475
Symbol
Dimension
Symbol
Dimension
A
1,413 mm
H
2,383 mm
B
1,965 mm
I
676 mm
C
1,413 mm
J
300 mm
D
2,784 mm
K
560 mm
E
3,260 mm
L
1,080 mm
F
450 mm
N
484 mm
G
1,159 mm
O
1,347 mm
Tab. 90: Dimension table 3475
