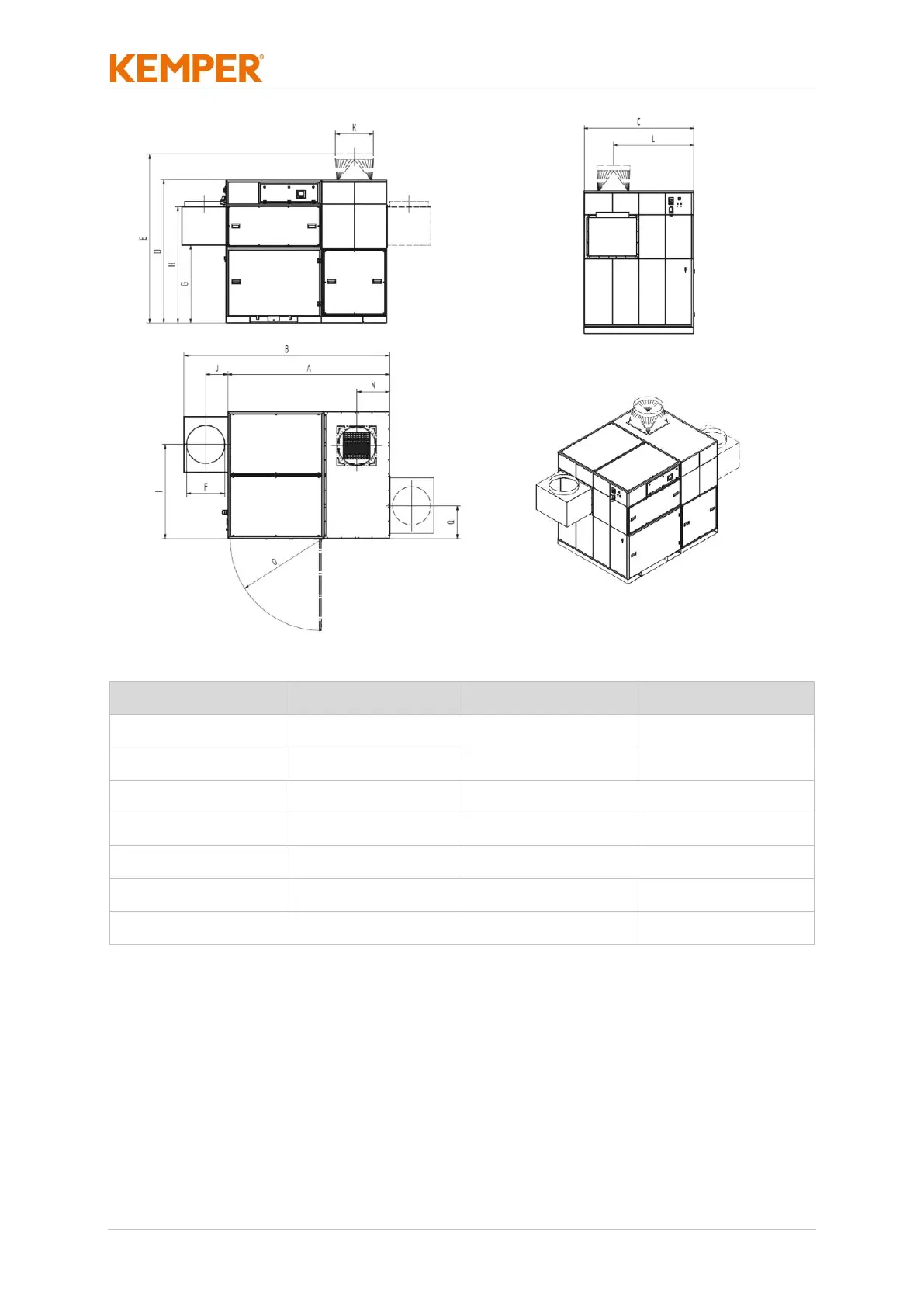

Fig. 114: 3485
Symbol
Dimension
Symbol
Dimension
A
2,378 mm
H
1,716 mm
B
3,028 mm
I
1,382 mm
C
1,864 mm
J
325 mm
D
2,110 mm
K
560 mm
E
2,510 mm
L
1,364 mm
F
560 mm
N
481 mm
G
1,146 mm
O
1,347 mm
Tab. 91: Dimension table 3485
