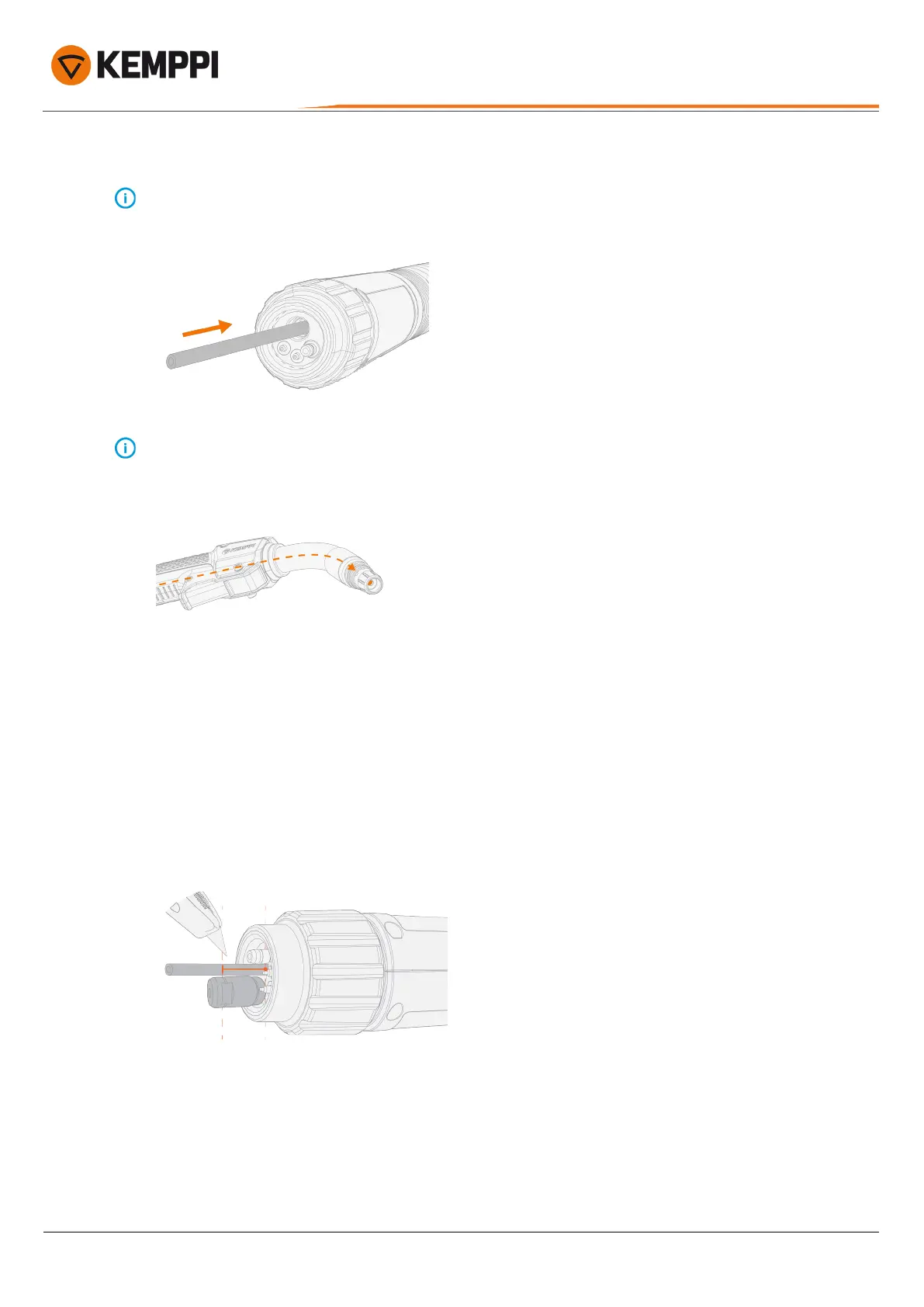

4. Feed the new wire liner into the cable hose until it stops at the gun neck end.
The standard DL Chili wire liner includes a short metal spiral section at its front end. This metal spiral end goes in
first. The DL Chili wire liner for a multi-neck welding gun does not include the metal spiral section.
To ensure that the wire liner is in the correct position, temporarily remove the welding gun contact tip. For more
information on the contact tip, refer to "About equipment" on page5 and "Assembling gun" on page8. In case of a
multi-neck welding gun, the wire liner does not go into the neck. With a multi-neck welding gun, the neck is to be
removed (refer to "Replacing wire liner for multi-neck" on page21).
For finalizing the wire liner installation, refer to (depending on your welding gun model):
"Installing sleeve assembly and cutting wire liner (Euro connector:series 3 and series 5 welding guns)" below or
"Installing sleeve assembly and cutting wire liner (Kemppi connector:series 8 welding guns)" on the next page.
Installing sleeve assembly and cutting wire liner (Euro connector:series 3 and series 5 welding
guns)
The method is the same for both gas- and water-cooled welding guns.
1. Insert the sleeve nut next to the wire liner for measure.
2. Using carpet knife, cut the wire liner flush with groove in the sleeve nut end.
