X8 MIG WELDER 2.3 Installation
6.

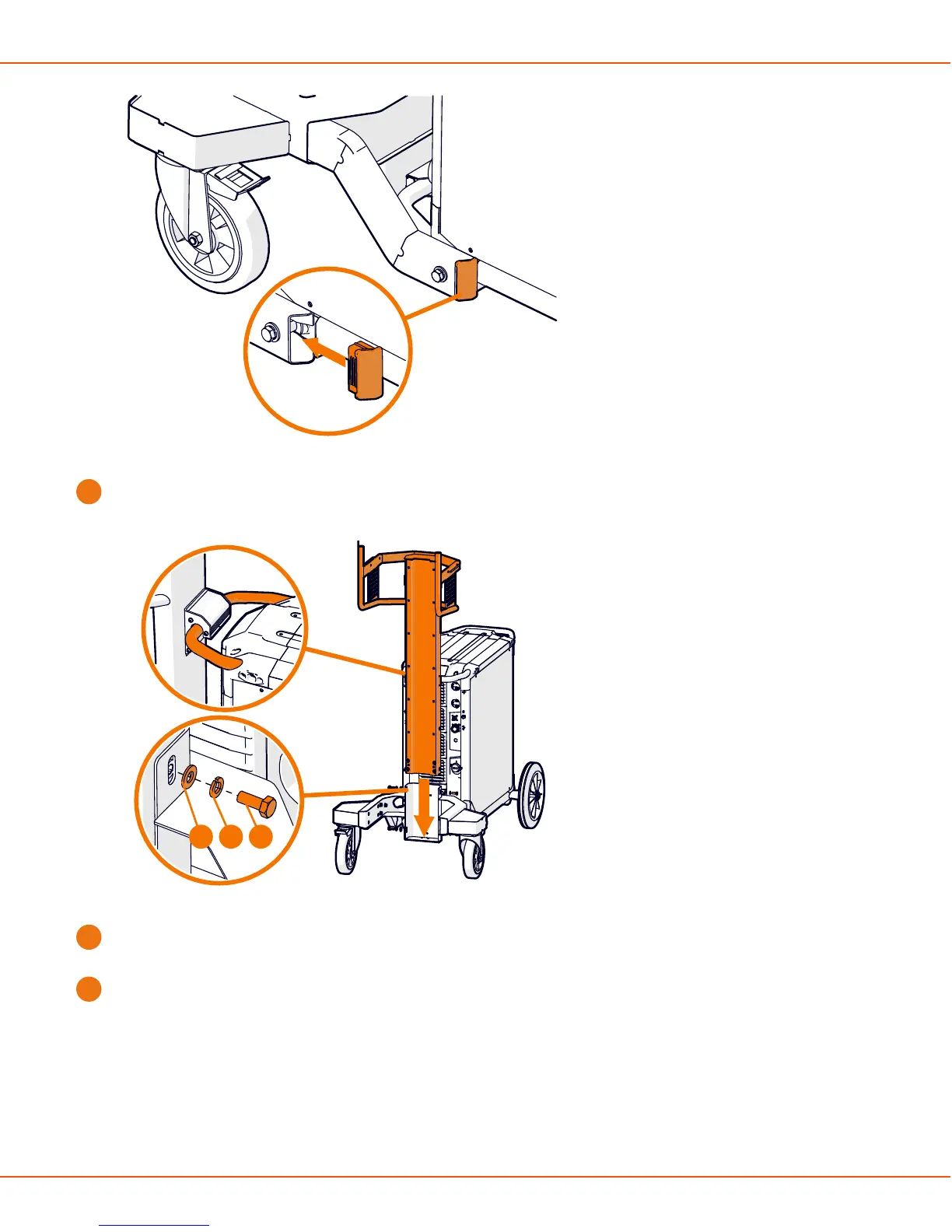

Place the upper part of the gas cylinder cart on the wheel set, and push it down until the claw fastens
over the transportation handle.
7.
Attach the upper part of the gas cylinder cart to the wheel set with two bolts (1) and washers (2, 3) from
both sides.
8.
Attach the bottom of the gas cylinder cart to the wheel set with six bolts (1) and washers (2, 3).
The gas cylinder cart bottom has two alternative settings (the lower setting described in the figure). The
higher setting gives a better ground clearance, but you must lift the gas cylinder higher.
OPERATING MANUAL | EN 31
©
KEMPPI | 2018-09-28
