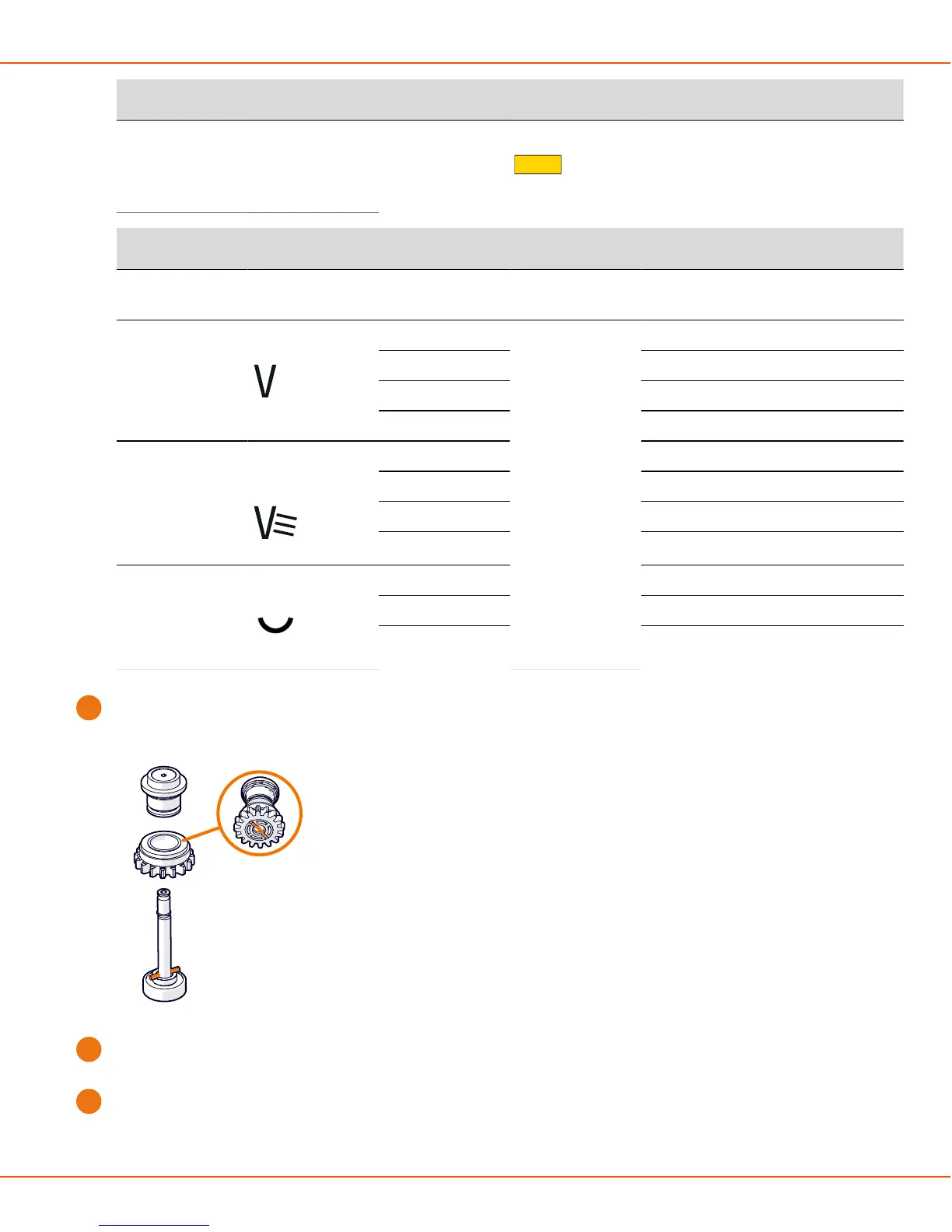

X8 MIG WELDER 2.3 Installation
Wire feed rolls, plastic
1.6 W001071 W001072
Wire feed rolls, metal
Filler wire
material
Feed roll profile Filler wire
diameter (mm)
Feed roll
identification
Drive roll code Pressure roll
code
0.8−0.9 W006074 W006075
1.0 W006076 W006077
1.2 W004754 W004753
Fe, Ss (Al, Mc,
Fc)
V-groove
1.4 W006078 W006079
1.0 W006080 W006081
1.2 W006082 W006083
1.4−1.6 W006084 W006085
Fc, Mc (Fe) V-groove,
knurled
2.0 W006086 W006087
1.0 W006088 W006089
1.2 W006090 W006091
Al (Fc, Mc, Ss,
Fe)
U-groove
1.6
See the text on
the roll
W006092 W006093
5.
Place the feed rolls back to their places. Align the cut on a drive roll's bottom with the pin on the drive
shaft.
6.
Reattach the mounting pins to lock the drive and pressure rolls to their places. Align one of the cuts on
the bottom of the pressure rolls' mounting pin with the stud on the mount.
7.
Lower the pressure handle on the feed rolls and close the top cover.
OPERATING MANUAL | EN 42
©
KEMPPI | 2018-09-28
