X8 MIG WELDER 2.4 Operation

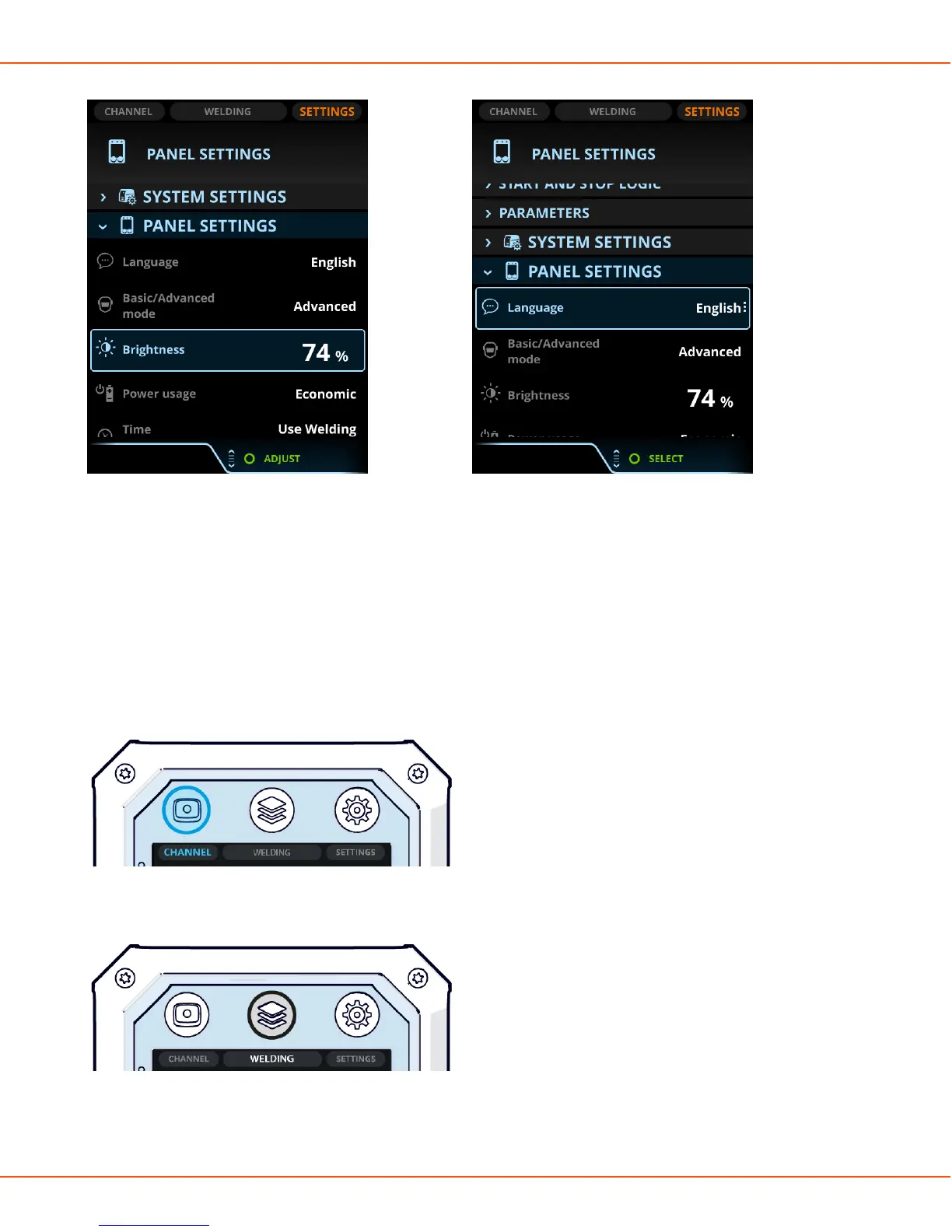

Figure 7: Control Pad display with the Adjust
footer
Figure 8: Control Pad display with the Select footer
If the selection of the toggle button comes into effect right away, the footer command is Close. If the change
comes into effect after pressing the green button, the footer command is OK.
Control Pad views
There are three main views on Control Pad display: Channel (memory channels), Welding, and Settings.
Toggle between the views with the view buttons. The View menu inside Welding opens, when you press the
Menu button again in the Welding view.
Figure 9: The Channel button
Figure 10: The Menu button
