X8 MIG WELDER 2.4 Operation
Figure 11: The Settings button

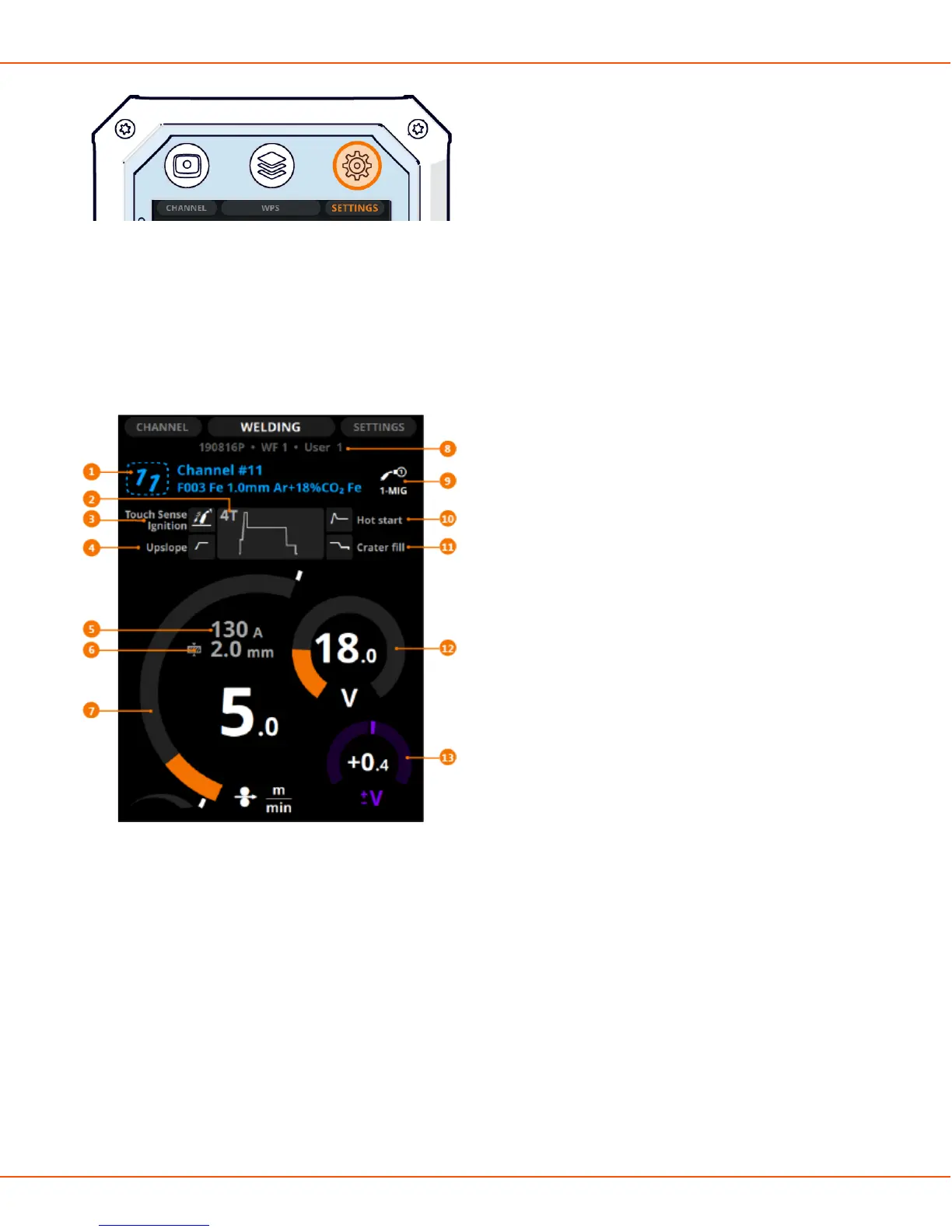

Welding view
In the Welding view, you can:
• See an overview of the settings of the selected welding program
• Adjust the main parameters (welding power and fine tuning)
Depending on the selected welding process, function and program, some or all of the following information
is shown:
1. Memory channel, its number and the welding program
The first row shows the memory channel's name.
The second row shows the welding program's name, which consists of the filler wire material and
diameter and the shielding gas.
If you have modified the welding settings, the channel number tilts to the right. To save changes, press
and hold the Channel button until the number returns to its normal position.
2. Operation mode of the welding gun (trigger logic)
2T, 4T or WP Switch. For more information, see Trigger logic functions on page 133.
3. Touch sense ignition
Option for smooth ignition with less spatter.
OPERATING MANUAL | EN 87
©
KEMPPI | 2018-09-28
