X8 MIG WELDER 2.4 Operation

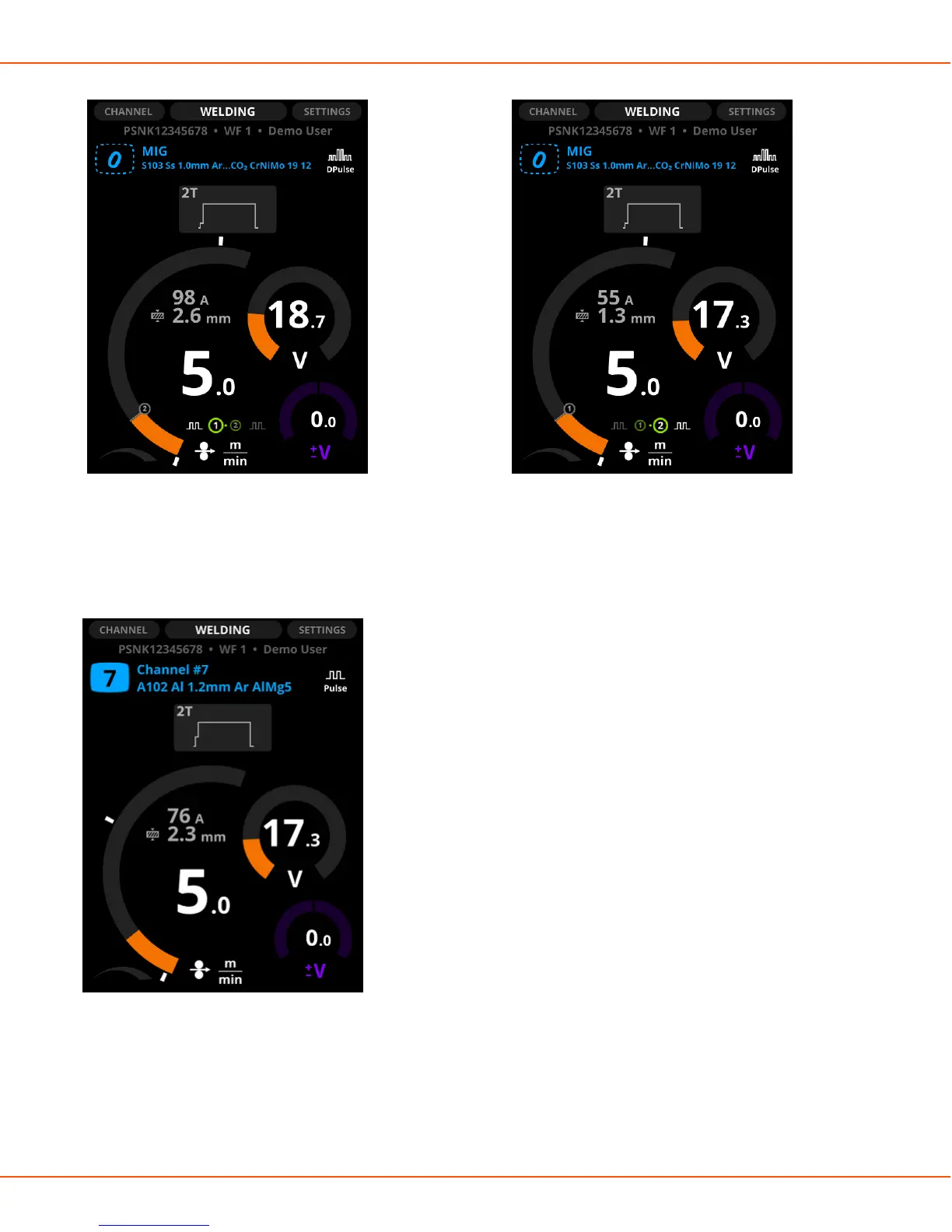

Figure 13: Toggling DPulse (1) Figure 14: Toggling DPulse (2)
You can specify the minimum and maximum values of the wire feed speed. They are displayed as white
stoppers beside the wire feed speed diagram.
Figure 15: The minimum and maximum stoppers
The value range of the welding power and voltage graphs specified by the Welding Procedure Specification
(WPS) are displayed with a green arc between the stoppers. The stoppers are by default at the top and
bottom of the specified WPS area, but you can adjust them to your preferences: to narrow the area or to
weld outside the specified area.
OPERATING MANUAL | EN 89
©
KEMPPI | 2018-09-28
