iodically re-certified to assure proper functioning and safety. The recommended service interval is at
least once per year. Re-certification may be done at the user’s Biomedical Engineering Department, an outside service, or
by Tyco Healthcare Group LP Factory Ser
vice. To arrange for Tyco Healthcare Group LP Factory Service, call 1-800-448-0190
In Canada, call 1-877-664-TYCO(8
If a pump malfunctions, please contact your THGLP Representative or call Customer Service for instruction.
Section VIII — Battery Replacement
See Figure 21 and do the following to replace the Battery Pack:
• Loosen the Battery Door screw, on back of pump.
• Open Battery Door and disconnect wire harness. A small straight-bladed screw driver may be needed to disconnect
• Slide Battery Pack out of compartment.
• Slide a new Battery Pack into compartment with wire harness extending out.
• Align connector with red wire at upper right.
• Push connector in until properly latched.
• Tuck wires into slot between connector and battery to insure wires are not pinched. Re-tighten Battery Door screw.
Replacement Battery Packs are
Healthcare/Kendall Co. (See Section XIII - Service Part
AND PERFORMANCE SPECIFICATIONS.
The battery will charge continuously whenever the pump is plugged into a wall outlet. Eight hours of charging is required
to fully recharge the Battery Pack.

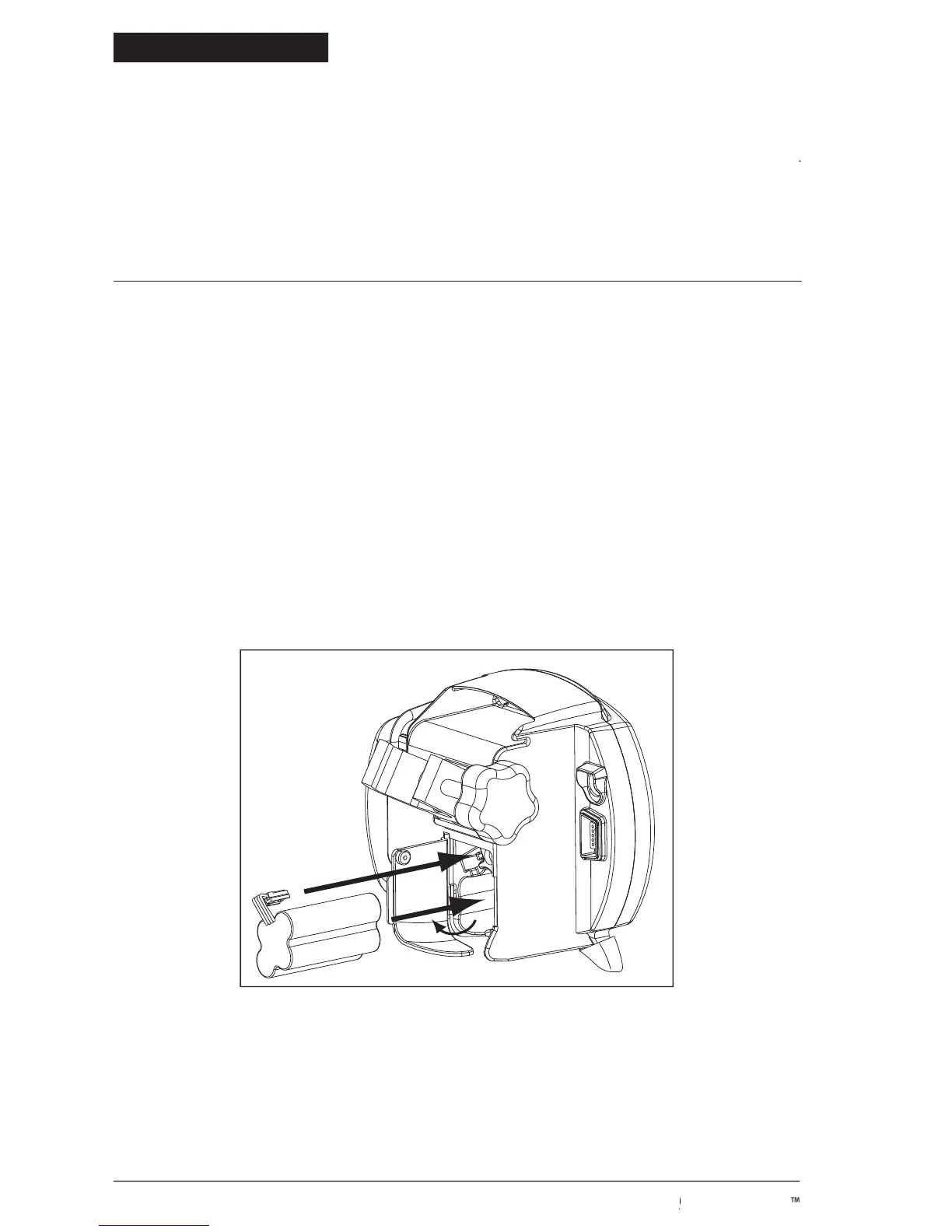

Figure 21. Installation of Battery Pack.
© 2005 Tyco Healthcare Group LP
